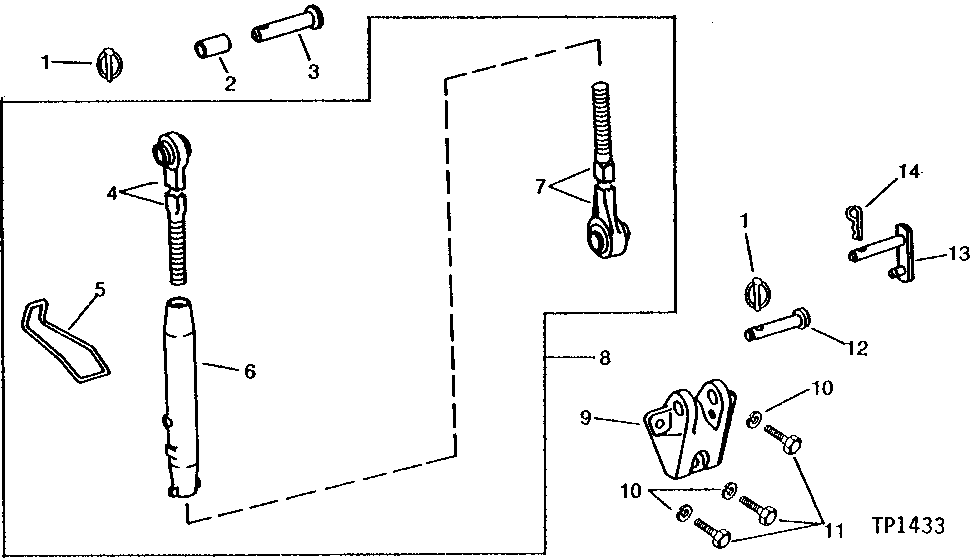

THREE-POINT HITCH CENTER LINK (CATEGORY I AND II) [01J03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR62151	2	Quick Lock Pin	-
2	T12553	1	Bushing	(TO CONVERT CATEGORY II TO CATEGORY I)
2	L11292	1	BUSHING	(NON-TELESCOPING DRAFT TUBES) (TO CONVERT CATEGORY II TO CATEGORY I)
3	R53296	1	Pin Fastener	(CATEGORY II)
3	R58262	1	Pin	(SUB FOR R44917) (CATEGORY I)
4	AT19796	1	LINK END	REAR (CATEGORY II) (MARKED T21508) (R.H. THREAD)
4	AT19873	1	LINK END	REAR (CATEGORY I) (MARKED T21508) (R.H. THREAD)
4	AT30979	1	END	REAR (NON-TELESCOPING DRAFT TUBES) (R.H. THREAD)
5	T22008	1	HANDLE	-
5	T27136	1	HANDLE	(NON-TELESCOPING DRAFT TUBES) (CATEGORY II)
6	R70183	1	LINK BODY	-
6	AT30978	1	LINK BODY	(NON-TELESCOPING DRAFT TUBES) (CATEGORY II)
6	T22028	1	LINK BODY	-
7	AT19795	1	LINK END	FRONT, (MARKED T21506) (L.H. THREAD)
7	-	1	Part 15	( AT30977 NO LONGER AVAILABLE) FRONT (NON-TELESCOPING DRAFT TUBES) (CATEGORY II) (L.H. THREAD)
8	AT20863	1	LINK	(CATAGORY II)
8	AR92432	1	LINK BODY	(CATAGORY II)
9	T21685	1	BRACKET	-
10	12H294	3	Lock Washer	5/8"
11	19H1356	3	CAP SCREW	5/8" X 1-3/4"
12	-	1	Part 21	(SUB AL40957 AND A3581R)
13	AL40957	1	Pin Fastener	(SUB FOR AT21912)
14	A3581R	1	Spring Locking Pin	-

THREE-POINT HITCH CENTER LINK (CATEGORY I AND II) [01J03]
