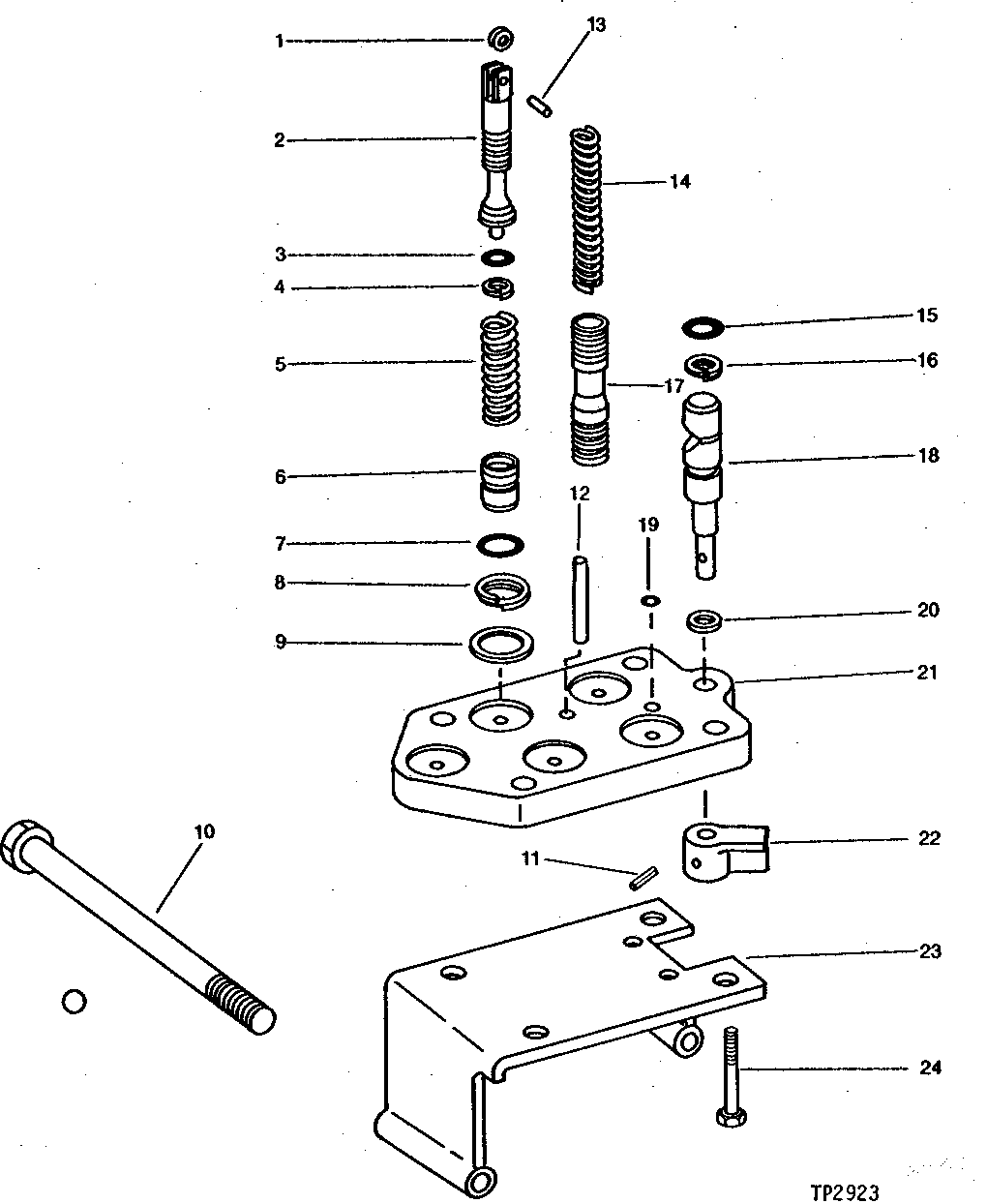

SELECTIVE CONTROL VALVE POPPET, METERING AND FLOW CONTROL VALVES (SERIAL NO. -277209) [01I01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R51409	4	SPACER	(SUB FOR R53358, THIS APPLICATION)
2	AR86535	2	Valve	(SUB FOR AR56120, AR70150 AND AR78396)
3	A3917R	4	O-Ring	(SUB FOR R65286) (PRESSURE VALVE) (2 USED RETURN VALVE)
4	R26484	4	Back-Up Ring	(PRESSURE VALVE) (2 USED RETURN VALVE)
5	R65501	2	Spring	(SUB FOR R41055, THIS APPLICATION)
5	R65502	2	Spring	(SUB FOR R41055)
6	R41156	4	GUIDE	-
7	R27166	4	O-Ring	-
8	R41057	4	BACK-UP RING	-
9	R26149	6	PACKING	(D)
10	19H2224	2	CAP SCREW	1/2" X 4-3/4"
11	34H231	1	SPRING PIN	3/32" X 3/4"
12	34H284	1	Spring Pin	3/16" X 1-1/4"
13	34H242	4	Spring Pin	1/8" X 7/16"
14	R41549	1	SPRING	-
15	P46051	1	O-Ring	(D)
16	R40937	1	Back-Up Ring	(D)
17	R52549	1	SHUT-OFF VALVE	-
18	R65289	1	VALVE	(SUB FOR R52547)
19	R34812	1	O-Ring	(D)
20	R41339	1	Shim	.762 MM (.030")
21	AR40688	1	COVER	-
22	R62652	1	Arm	(SUB FOR R41338)
23	AR39162	1	BRACKET	-
24	19H2633	4	Cap Screw	3/8" X 1-1/2"
24	19H3239	4	Cap Screw	3/8" X 1-1/4"
..	AR52394	1	HYDR.OIL TEMPERATURE SENSOR	SELECTIVE CONTROL VALVE DETENT, (INCLUDES B2762R, R26546, R41055, R46722, R48980, R49187, R55397, R55398 AND (4) T20229)

SELECTIVE CONTROL VALVE POPPET, METERING AND FLOW CONTROL VALVES (SERIAL NO. -277209) [01I01]
