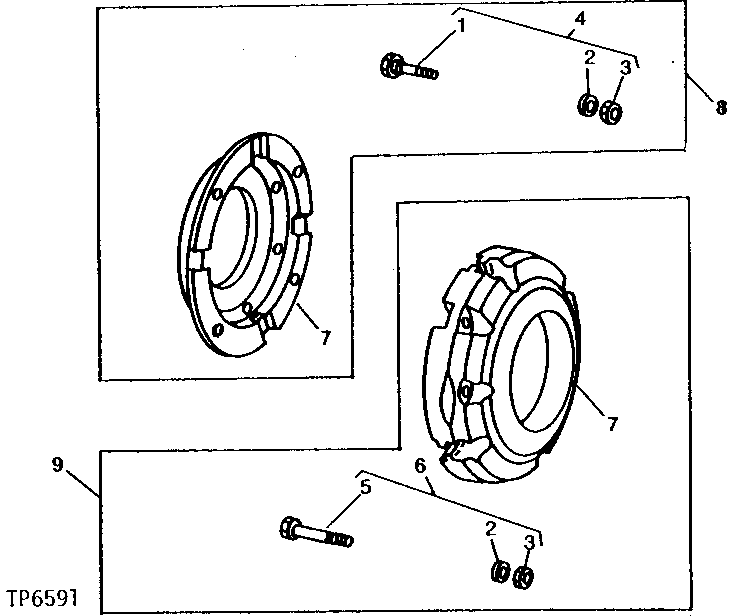

REAR WHEEL WEIGHTS (24-INCH (609.60 MM) CAST WHEEL) [01I16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T21825	4	SCREW	(1ST WEIGHT TO WHEEL)
2	24H1363	8	Washer	41/64" X 1-1/16" X 0.105"
3	14H1039	8	Nut	5/8"
4	AT21457	1	MOUNTING PARTS	(CONTAINS HARDWARE TO MOUNT (2) WEIGHTS) (WEIGHT TO RIM) (NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
5	03H1786	8	Bolt	5/8" X 4-1/2"
6	AT17554	1	MOUNTING PARTS	(CONTAINS HARDWARE TO MOUNT (2) WEIGHTS) (ADDITIONAL WEIGHT TO WEIGHT)
7	T19293	1	Weight	-
8	AT21451	1	WEIGHT	49.9 KG (110 LBS.) (1ST WEIGHT TO WHEEL) ( AT21451 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
9	-	1	Part 9	49.9 KG (110 LBS.) (2ND AND ADDITIONAL WEIGHTS) ( AT17549, NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)

REAR WHEEL WEIGHTS (24-INCH (609.60 MM) CAST WHEEL) [01I16]
