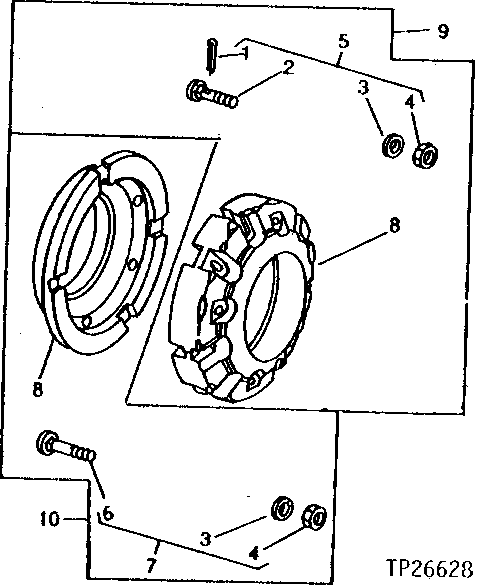

REAR WHEEL WEIGHT FOR 24-INCH (609.60 MM) DEMOUNTABLE STEEL DISK WHEEL [01I17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7015	8	Cotter Pin	3.200 X 25 MM, (4 PER SIDE)
2	R28493	4	Bolt	(1ST WEIGHT TO WHEEL) (4 PER SIDE)
3	12H294	8	Lock Washer	5/8", (4 PER SIDE)
4	14H1039	8	Nut	5/8", (4 PER SIDE)
5	-	1	Part 5	(CONTAINS HARDWARE TO MOUNT TWO WEIGHTS) (WEIGHT TO RIM) ( AT17727 NO LONGER AVAILABLE, ORER INDIVIDUAL PARTS)
6	03H1786	8	Bolt	5/8" X 4-1/2", (2ND WEIGHT TO WHEEL) (4 PER SIDE)
7	-	1	Part 7	(CONTAINS HARDWARE TO MOUNT TWO WEIGHTS) (ADDITIONAL WEIGHT TO WEIGHT) ( AT17554, NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
8	T19293	1	Weight	(2 PER UNIT)
9	-	1	Part 9	49.9 KG (110 LBS.) (1ST WEIGHT TO WHEEL) ( AT17726, NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
10	-	1	Part 10	49.9 KG (110 LBS.) (2ND AND ADDITIONAL WEIGHTS) ( AT17549, NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)

REAR WHEEL WEIGHT FOR 24-INCH (609.60 MM) DEMOUNTABLE STEEL DISK WHEEL [01I17]
