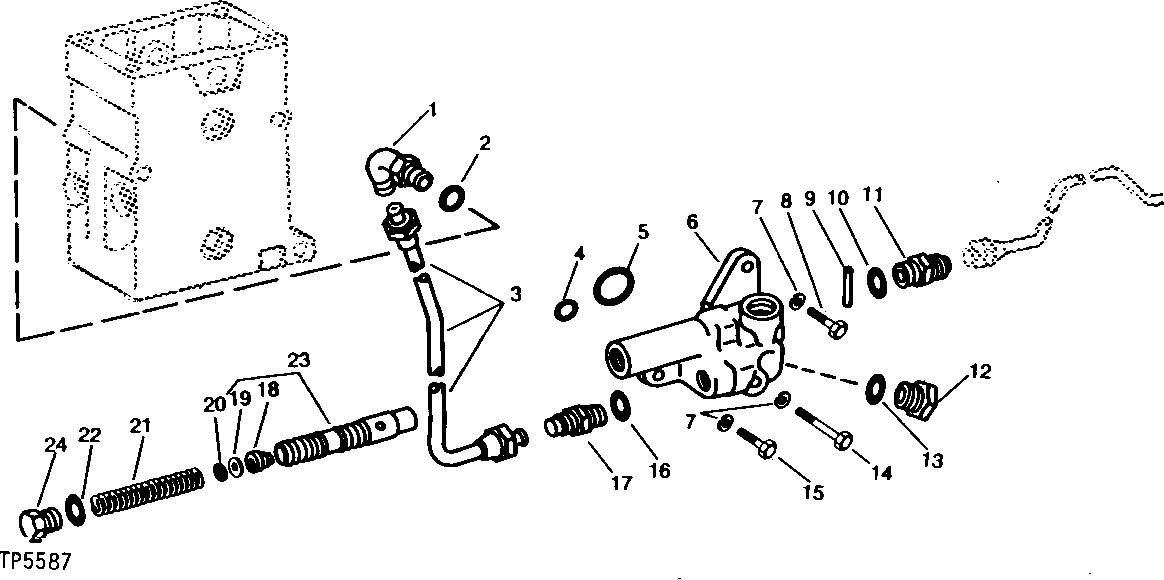

PRESSURE CONTROL VALVE (SERIAL NO. 339545- ) [01H13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT35120	1	Elbow Fitting	(D)
2	R26448	1	O-Ring	(D)
3	AR91029	1	OIL LINE	(D)
4	R28776	1	O-Ring	-
5	R60332	1	O-RING	-
6	T120368	1	HOUSING	(SUB FOR R39323)
7	12H304	3	Lock Washer	3/8"
8	19H2633	1	Cap Screw	3/8" X 1-1/2"
9	R39324	1	DOWEL PIN	-
10	R26906	1	O-Ring	(D)
11	R27270	1	Fitting	-
12	R27175	2	Drain Plug	-
13	U12547	2	O-Ring	(SUB FOR (2) F3171R)
14	19H2458	1	Cap Screw	3/8" X 3"
15	19H3483	1	Cap Screw	3/8" X 1-1/8"
16	R26375	1	O-Ring	(D)
17	R27237	1	Fitting	(D) (WITH SELECTIVE CONTROL VALVE)
17	R39112	1	Fitting	(WITHOUT SELECTIVE CONTROL VALVE)
18	R40562	1	APERTURE	-
19	-	1	Part 20	(SUB AR65882)
20	R33521	1	Shim	0.76 MM (.030")
21	R40072	1	SPRING	-
22	R26906	1	O-Ring	(D)
23	AR65882	1	CONTROL VALVE	-
24	R27474	1	Drain Plug	-
24	R63494	1	FITTING	-
..	AR91861	1	VALVE	DOUBLE ACTING SINGLE (WITHOUT LEVER LOCK) (USE WITH 5.00 TO 1 FINAL DRIVE RATIO) (SUB FOR AR76093) (INCLUDES (2) AR21837, AR99025, R27237, (2) R39171, R62147, R77420, R20922, T22996, T23069, (2) 14H732, 19H1895, (2) 19H3597 AND 24H1625)

PRESSURE CONTROL VALVE (SERIAL NO. 339545- ) [01H13]
