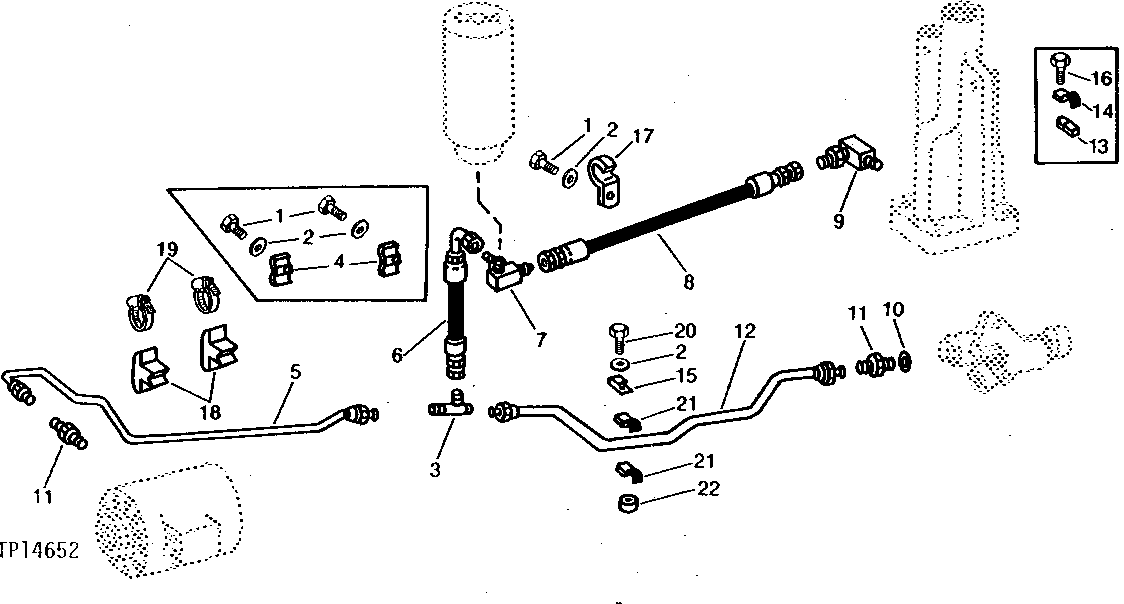

HYDRAULIC PUMP FRONT OIL PRESSURE LINES [01H14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3239	3	Cap Screw	3/8" X 1-1/4"
2	12H304	4	Lock Washer	3/8"
3	T25723	1	Tee Fitting	-
4	T23040	2	CLAMP	(SUB AR21999) (ALSO ORDER R49076)
5	AT37736	1	OIL LINE	-
6	AT38634	1	HYDRAULIC HOSE - FABRICATE	3/4" X 305 MM (12") X 3/4", PUMP PRESSURE LINE TO ACCUMULATOR
7	AR32665	1	Tee Fitting	-
8	AT38635	1	Hydraulic Hose	9/16" X 635 MM (25") X 9/16", TEE TO ELBOW IN POWER STEERING VALVE HOUSING
8	AT54133	1	HYDRAULIC HOSE - FABRICATE	9/16" X 635 MM (25") X 9/16", POWER STEERING VALVE HOUSING
9	AT37209	1	Elbow Fitting	-
10	R26906	1	O-Ring	-
11	R27270	2	Fitting	-
12	AT23561	1	OIL LINE	(WITH REVERSER)
12	AT23557	1	OIL LINE	(WITHOUT REVERSER)
13	R28539	1	CLAMP	(SUB (2) R35726, 28H1518, 12H304 AND 19H1732, THIS APPLICATION)
14	T25724	1	CLAMP	(SUB (2) R35726, 28H1518, 12H304 AND 19H1732, THIS APPLICATION)
15	B1986R	1	CLIP	(WITH REVERSER)
16	19H2284	1	Cap Screw	3/8" X 7/8"
17	T25133	1	CLAMP	-
18	R49076	2	SPACER	-
19	AR21999	2	Hose Clamp	(SUB FOR AR21840)
20	19H1732	1	Cap Screw	3/8" X 1-1/4"
21	R35726	2	CLAMP	-
22	28H1518	1	Washer	0.493" X 0.675" X 5/16"

HYDRAULIC PUMP FRONT OIL PRESSURE LINES [01H14]
