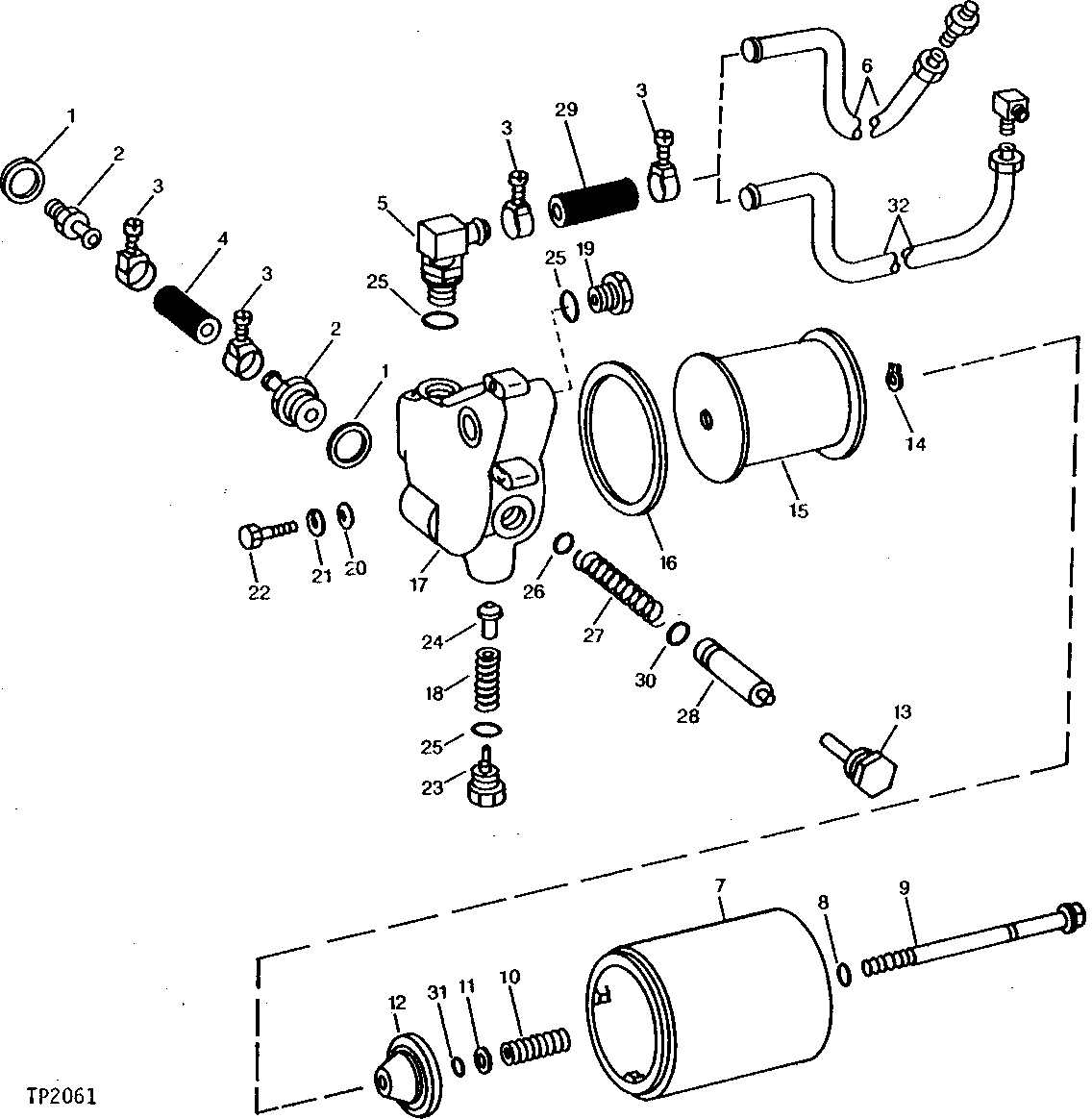

HYDRAULIC OIL FILTER AND RELIEF VALVE [01H19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A4808R	2	WASHER	-
2	T38460	2	FITTING	-
3	AR21839	4	Clamp	-
4	-	1	Part 4	86 MM (1" X 3-3/8") LONG (MAKE FROM U11186) (SUB FOR T38461 AND T37798)
5	AT21574	1	Fitting	-
6	AT23543	1	OIL LINE	(WITH REVERSER)
7	R51654	1	COVER	-
8	R394R	1	O-Ring	-
9	R82731	1	SCREW	(SUB FOR R54753)
10	R66064	1	SPRING	(SUB FOR H819R, THIS APPLICATION)
11	24H1227	1	Washer	17/32" X 13/16" X 0.060"
12	R28593	1	RETAINER	(USE WITH R394R, ROUND CROSS-SECTION O-RING) (SUB R65892 AND F2741R)
12	R65892	1	RETAINER	(USE WITH F2741R, SQUARE CROSS-SECTION O-RING)
13	AT26172	1	PLUG	(A) (NO LONGER AVAILABLE, ORDER R27474 AND T22850)
14	R32507	1	Snap Ring	-
15	AR75603	1	FILTER ELEMENT	(SUB FOR AT34670 AND AR75601)
16	R34733	1	WASHER	-
17	AT27078	1	HOUSING	(A)
18	R30776	1	SPRING	(A)
19	R27175	1	Drain Plug	-
20	24M7096	2	Washer	0.413" X 0.709" X 0.063"
21	12H304	2	Lock Washer	3/8"
22	19H3239	2	Cap Screw	3/8" X 1-1/4"
23	AT26171	1	PLUG	(A)
24	R40976	1	VALVE	(A)
25	U12547	3	O-Ring	(A) (SUB FOR (3) F3171R)
26	R26906	1	O-Ring	(A)
27	T27992	1	SPRING	(A)
28	R33162	1	VALVE	(A) (SUB R57559 AND R33259)
28	R57559	1	VALVE	-
29	-	1	Part 31	86 MM (3/4" X 3-3/8") LONG (MAKE FROM T61939) (SUB FOR T35694 AND T21371)
30	R33259	1	O-Ring	-
31	R394R	1	O-Ring	(USE WITH R28593 RETAINER)
31	F2741R	1	Packing	(USE WITH R65892 RETAINER)
32	AT23542	1	OIL LINE	(WITHOUT REVERSER)
..	AT26173	1	HOUSING	-

HYDRAULIC OIL FILTER AND RELIEF VALVE [01H19]
