ENGINE OVERHAUL GASKET SET (DIESEL) [02C08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

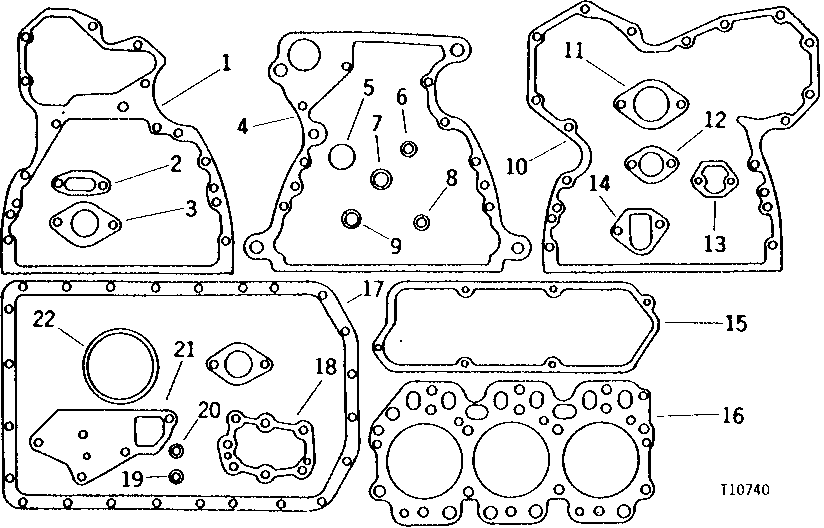

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R131794	1	Gasket	(SUB FOR R90648)
2	T20336	1	GASKET	OIL FILLER INLET
3	T20215	1	GASKET	THERMOSTAT COVER
4	R70483	1	GASKET	FLYWHEEL HOUSING, (SUB FOR R49516, THIS APPLICATION)
5	T20328	1	Gasket	OIL FILLER CAP
6	T20304	1	WASHER	TACHOMETER DRIVE SHAFT
7	T13213	1	WASHER	ALUMINUM, OIL DRAIN PLUG
8	R74354	1	O-Ring	OIL PUMP OUTLET TUBE (SUB FOR R27166, THIS APPLICATION)
9	R56463	1	O-Ring	VENT TUBE OUTLET (SUB FOR R495R, THIS APPLICATION)
10	T20155	1	GASKET	TIMING GEAR COVER
11	R81275	1	Gasket	AIR INLET, (SUB FOR T20159, THIS APPLICATION)
12	T20219	1	GASKET	THERMOSTAT HOUSING
13	R520618	1	Gasket	FUEL PUMP, (SUB FOR R27285, R97350)
14	T20364	1	GASKET	INJECTION PUMP GEAR COVER, (SUB R78366)
14	R78366	1	GASKET	(SUB FOR R69260)
15	T20111	1	GASKET	ROCKER ARM COVER (SUB AR102261 AND (6) AR103811 CAP SCREWS WITH WASHERS)
15	AR102261	1	GASKET	ROCKER ARM COVER
16	R80241	1	GASKET	(USE IF AVAILABLE) (SUB FOR R59447) CYLINDER HEAD
16	R97356	1	ENGINE CYLINDER HEAD GASKET	(SUB FOR R80241)
17	R49514	1	GASKET	OIL PAN
18	T20273	1	GASKET	TIMING GEAR COVER OPENING COVER
19	R34764	3	WASHER	(K) (SUB RE32011) INJECTION NOZZLE UPPER
20	R48000	3	Seal	INJECTION NOZZLE LOWER
21	T20243	1	Gasket	WATER PUMP COVER
22	R48768	3	WASHER	CYLINDER LINER
23	R90658	3	Gasket	EXHAUST MANIFOLD, (SUB FOR T20006) (ALL T20006 GASKETS MUST BE REPLACED AT THE SAME TIME. DO NOT MIX T20006 AND R90658)
..	RE501578	1	GASKET KIT	(SUB FOR AR53369, AR71996, AR79921, AR97190, AR102298, RE16912 AND RE38853) (ALSO ORDER (3) AR71618 AND (6) AR103811)

ENGINE OVERHAUL GASKET SET (DIESEL) [02C08]
