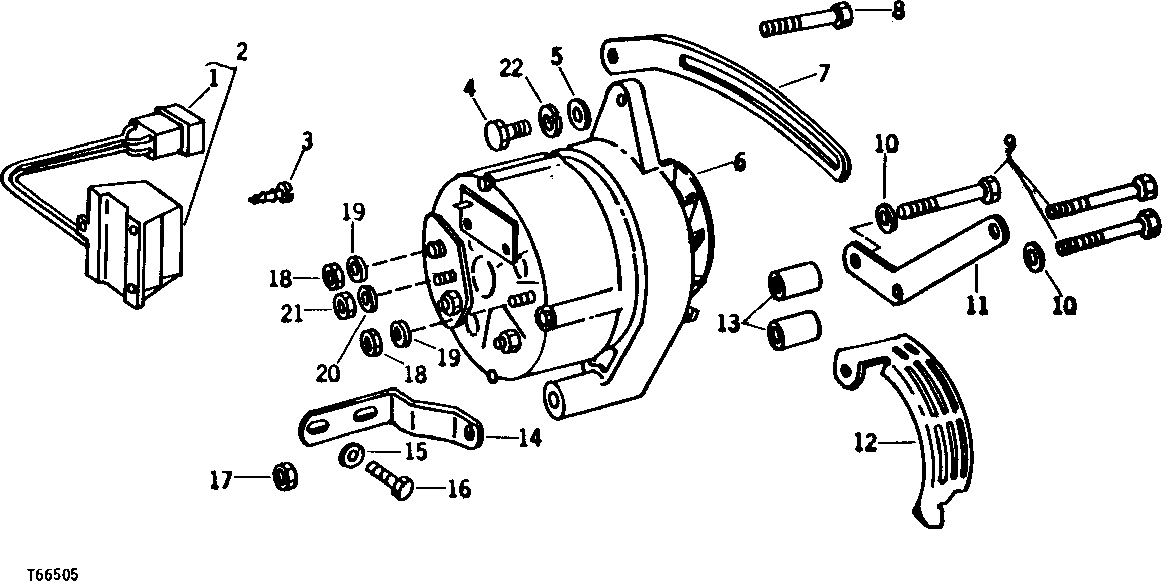

ALTERNATOR, REGULATOR, AND ATTACHING PARTS [02B25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T24166	1	Electrical Connector Assy	-
2	AR77485	1	VOLTAGE REGULATOR	(MOTOROLA NO. 8RH2004B) (SUB FOR AT21815, MOTOROLA NO. R2J3)
3	37H94	3	Screw	0.216" X 1/2"
4	19H2705	1	Cap Screw	5/16" X 1"
5	24H1136	1	Washer	11/32" X 11/16" X 0.065"
6	AR38458	1	ALTERNATOR	(MOTOROLA NO. RA12NJD453-S) (SUB FOR AT21619, MOTOROLA NO. A12NJD452)
6	TY24306	1	ALTERNATOR	(SUB FOR TY1427) (35 AMPERE) (MOTOROLA) (REMANUFACTURED)
7	R108404	1	Strap	(SUB FOR T20204 AND R107734)
8	19H3065	1	Cap Screw	3/8" X 2"
9	19H2458	3	Cap Screw	3/8" X 3"
10	24H1304	2	WASHER	13/32" X 23/32" X 0.120"
11	T20202	1	Bracket	-
12	R122848	1	Shield	(SUB FOR R56012)
13	28H2547	2	Spacer	3/8" X 1"
14	R38372	1	BRACKET	-
15	24H1305	2	Washer	13/32" X 13/16" X 0.065"
16	19H2284	2	Cap Screw	3/8" X 7/8"
17	14H812	1	NUT	3/8"
18	14H778	2	Nut	0.190"
19	12H295	2	Lock Washer	0.190"
20	12H297	1	Lock Washer	1/4"
21	14H786	1	Nut	1/4"
22	12H303	1	Lock Washer	5/16"

ALTERNATOR, REGULATOR, AND ATTACHING PARTS [02B25]
