Hydraulic Pump and Oil Lines, W/ Draft Sensing Rockshaft

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M10487	2	Socket Head Screw	M8 X 90
2	19M10488	2	Socket Head Screw	M8 X 110
3	19M7865	3	Screw	M8 X 16
4	19M8024	2	Screw	M8 X 30
5	19M8162	1	Screw	M10 X 40
6	19M8923	1	Screw	M8 X 45
7	DZ101906	2	Clamp	-
8	F1870R	1	O-Ring	-
9	LVU13591	1	Compression Spring	-
10	M134962	2	Gasket	-
11	RE73582	2	Hose Clamp	-
12	SJ16346	1	Hydraulic Pump	Steering Pump, INCLUDES SJ17340
12	SJ17340	1	Seal Kit	-
13	SJ16347	1	Hydraulic Pump	Hitch Pump, INCLUDES SJ17340
13	SJ17340	1	Seal Kit	-
14	SU30611	1	Screen	-
15	SU32034	1	Clamp	-
16	SU45156	1	Manifold	-
17	SU43016	1	Socket Head Screw	-
18	SJ24116	1	Bracket	Oil Line Mounting
19	SJ24115	1	Bracket	Oil Line Assembly Mounting
20	19M7867	2	Screw	M8 X 25
21	19M7783	1	Screw	M10 X 16
22	SJ25398	1	Oil Line	Filter Outlet
23	19M8317	2	Screw	M8 X 40
24	SJ28646	1	Bracket	Filter Mounting
25	RE277191	1	Hose Clamp	-
26	SJ33087	1	Oil Line	Hitch Pump To Rockshaft
27	SU21490	1	Hydraulic Hose	LGTH = 98 mm, Filter Head to Outlet
28	19M7803	1	Screw	M8 X 70
29	U10289	1	O-Ring	-
30	SJ27473	1	Hydraulic Filter	Hydraulic Filter Assembly
31	SJ27472	1	Filter Head	-
32	SJ28834	1	Oil Filter	-
33	19M7792	2	Screw	M16 X 30
34	38H5027	1	Elbow Fitting	-
35	38H5076	1	Adapter Fitting	-
36	T77857	3	O-Ring	-
37	51M7045	2	O-Ring	19.300 X 2.200 mm
38	SJ33086	1	Pipe	Hitch Pump Outlet
39	SU51992	1	Flange	-
40	SJ28446	1	Bracket	Suction Line Mounting
41	SJ25397	1	Oil Line	Filter Inlet
42	R176683	1	Packing	-
43	H75541	2	Clamp	-
44	SJ34422	1	Bracket	SCV Coupler Mounting
45	19M7785	1	Screw	M10 X 25
46	19M7774	1	Screw	M6 X 12

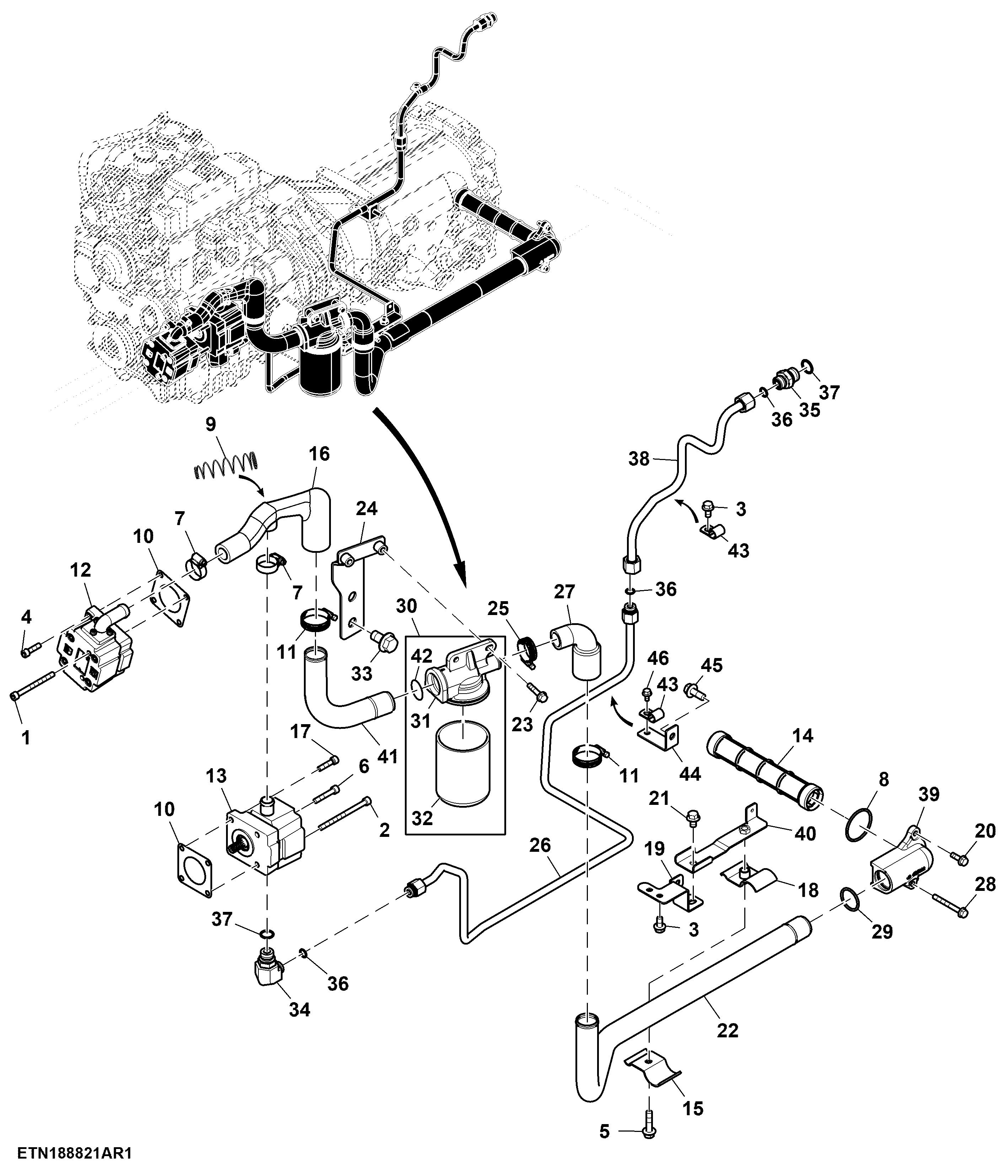

Hydraulic Pump and Oil Lines, W/ Draft Sensing Rockshaft

Нет текстового описания
