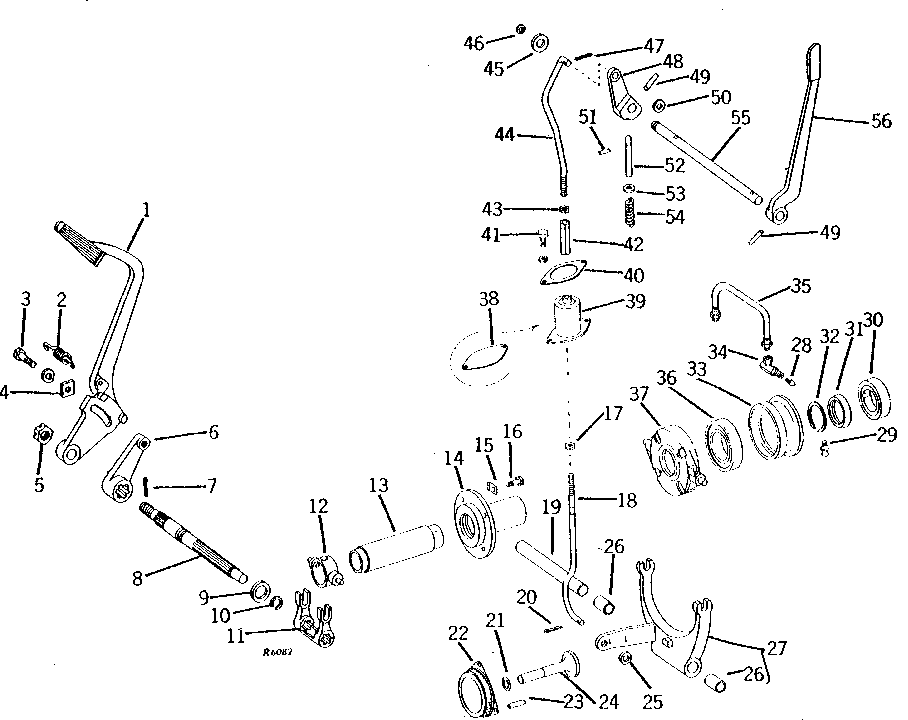

TRANSMISSION AND PTO CLUTCH CONTROLS (SYNCRO-RANGE) [02G11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33570	1	PEDAL	(RU AND OR) (NLA)
1	R27304	1	PEDAL	(RC AND ST)
2	R27935	1	Spring	(RU AND OR)
2	R26833	1	EXTENSION SPRING	(RC AND ST)
3	19H1721	1	CAP SCREW	1/2" X 1-1/2"
3	12H301	1	Lock Washer	1/2"
4	R27305	1	STRAP	-
5	C1104R	1	NUT	-
6	R26652	1	LEVER	-
7	11M7083	1	Cotter Pin	3.200 X 50 MM
8	R44277	1	SHAFT	(SUB FOR R31394) (ALSO ORDER R41180)
9	24H1477	1	Washer	1-5/32" X 1-3/4" X 0.060"
10	R26643	1	Snap Ring	-
11	R31393	1	FORK	(SUB R41180)
11	R41180	1	FORK	(USE WITH R44277)
12	AR27472	1	SHIFT COLLAR	(MARKED R27660)
13	R34055	1	TUBE	-
14	AR31691	1	SUPPORT	(MARKED R27028) (SUB FOR AR26488)
15	R30958	4	LOCK PLATE	-
16	19H2284	4	Cap Screw	3/8" X 7/8"
17	14H971	1	NUT	1/2"
18	R33575	1	ROD	(A)
19	R33925	1	DOWEL PIN	(A)
20	11M7015	1	Cotter Pin	(A) 3.200 X 25 MM
21	B2762R	1	O-Ring	(A)
22	RE20730	1	BRAKE SHOE	(A) (SUB FOR AR32294 OR AR45170)
23	R36666	3	DOWEL PIN	(SUB FOR R26198)
24	R33574	1	SHAFT	(A) (NLA)
25	24H1341	1	Washer	17/32" X 15/16" X 0.060"
26	R776R	2	BUSHING	(A)
27	AR32712	1	FORK	(A) (MARKED R33796)
28	JD7778	1	Lubrication Fitting	(A)
29	JD7797	1	Lubrication Fitting	-
30	AR41794	1	THRUST BEARING	-
31	R27027	1	LOCKING COLLAR	-
32	A5518R	1	Snap Ring	-
33	R27665	1	SHIFT COLLAR	(A)
34	R32222	1	Union Fitting	(A) 90°
35	R32164	1	HOSE	(A)
36	AR26845	1	BALL BEARING	(A)
37	AR31259	1	SLEEVE	(A) (MARKED R32169)
38	R34212	1	GASKET	(LESS PTO)
39	R33962	1	BOOT	(A)
40	R33963	1	STRAP	(A)
41	19H2127	2	Cap Screw	(A) 5/16" X 7/8"
41	12H303	2	Lock Washer	(A) 5/16"
42	R33961	1	COUPLING	(A)
43	14H939	1	Nut	1/2"
44	R33960	1	ROD	(A) (NLA)
45	24H1396	1	Washer	(A) 25/32" X 1-1/2" X 0.105"
46	R73380	1	Snap Ring	(A) (SUB FOR A369R)
47	11M7015	1	Cotter Pin	(A) 3.200 X 25 MM
48	R33964	1	ARM	(A)
49	34H331	2	Spring Pin	(A) 5/16" X 1-1/2"
50	24H1227	1	Washer	(A) 17/32" X 13/16" X 0.060"
51	34H249	1	Spring Pin	(A) 1/8" X 7/8"
52	R26683	1	PIN FASTENER	(A)
53	24H1325	1	Washer	(A) 15/32" X 59/64" X 0.065"
54	R45358	1	SPRING	(A) (SUB FOR P28102)
55	R34232	1	SHAFT	(A) (RC AND ST)
56	R34233	1	LEVER	(A) (RC AND ST)
56	AR32927	1	LEVER	(A) (RU) (NLA)
56	AR33756	1	LEVER	(A) (OR) (NLA)
