Открытый узел

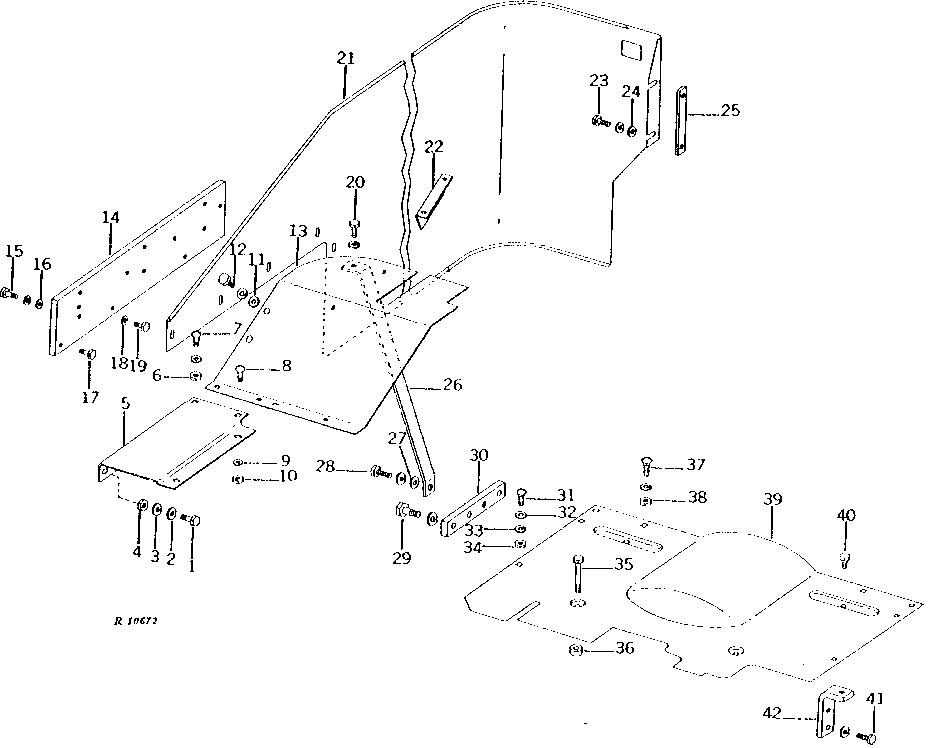

PLATFORM, EXTENSIONS, AND OPERATOR SHIELDS (TRACTOR SERIAL NO. 068000-114772) [04E14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1936	4	Cap Screw	3/8" X 3/4"
2	24H1375	4	Washer	11/16" X 1-1/8" X 0.060"
3	12H304	4	Lock Washer	3/8"
4	14H1076	4	Nut	3/8"
5	R34941	1	EXTENSION	R.H. (NLA)
5	R34942	1	EXTENSION	L.H. (NLA)
6	14H931	4	Nut	3/8"
7	03H1765	4	Bolt	3/8" X 3/4"
7	12H304	4	Lock Washer	3/8"
8	03H1765	4	Bolt	3/8" X 3/4"
9	12H304	4	Lock Washer	3/8"
10	14H1076	4	Nut	3/8"
11	24H1305	4	Washer	13/32" X 13/16" X 0.065"
12	12H304	4	Lock Washer	3/8"
12	19H1936	4	Cap Screw	3/8" X 3/4"
13	R34943	1	EXTENSION	FRONT, R.H. (NLA)
13	R34944	1	EXTENSION	FRONT, L.H. (NLA)
14	R34945	2	PLATE	(NLA)
15	19H2284	6	Cap Screw	3/8" X 7/8"
15	12H304	6	Lock Washer	3/8"
16	24M7096	6	Washer	10.500 X 18 X 1.600 MM
17	19H2020	10	Cap Screw	5/16" X 1/2"
18	24H1136	10	Washer	11/32" X 11/16" X 0.065"
19	19H2021	4	Cap Screw	3/8" X 5/8"
20	19H1936	2	Cap Screw	3/8" X 3/4"
20	12H304	2	Lock Washer	3/8"
21	AR40440	1	SHIELD	L.H. (NLA)
21	AR34802	1	SHIELD	L.H. (NLA)
21	AR34801	1	SHIELD	R.H. (NLA)
21	AR40439	1	SHIELD	R.H. (NLA)
22	-	2	Part 31	(NLA)
23	19H1936	4	Cap Screw	3/8" X 3/4"
23	12H304	4	Lock Washer	3/8"
24	24H1305	4	Washer	13/32" X 13/16" X 0.065"
25	R34887	2	STRAP	(NLA)
26	R34882	2	SUPPORT	(NLA)
27	24H1625	2	Washer	17/32" X 1" X 0.120"
28	19H1792	2	Cap Screw	1/2" X 1"
28	12H301	2	Lock Washer	1/2"
29	19H1815	4	Cap Screw	1/2" X 1-1/4"
29	12H301	4	Lock Washer	1/2"
30	R34881	2	PLATE	(NLA)
31	03H1765	4	Bolt	3/8" X 3/4"
32	24H1305	4	Washer	13/32" X 13/16" X 0.065"
33	12H304	4	Lock Washer	3/8"
34	14H1076	4	Nut	3/8"
35	19H1733	1	CAP SCREW	3/8" X 2-1/2", (2 USED POWER SHIFT, 4 USED SYNCRO-RANGE)
36	28H1530	1	Bushing	3/8" X 1-13/16", (2 USED POWER SHIFT, 4 USED SYNCRO-RANGE)
37	03H1765	4	Bolt	3/8" X 3/4"
37	12H304	4	Lock Washer	3/8"
38	14H1076	4	Nut	3/8"
39	AR34808	1	PLATFORM	(A) (NLA)
39	AR40227	1	PLATFORM	(A) (NLA)
39	R34954	1	PLATFORM	(SYNCRO-RANGE) (NLA)
40	19H2021	2	Cap Screw	(A) 3/8" X 5/8"
41	19H1731	2	Cap Screw	(A) 3/8" X 1"
41	12H304	2	Lock Washer	(A) 3/8"
42	R34033	2	SUPPORT	(A) (NLA)
42	R40466	2	SUPPORT	(A) (NLA)

PLATFORM, EXTENSIONS, AND OPERATOR SHIELDS (TRACTOR SERIAL NO. 068000-114772) [04E14]

Нет текстового описания
