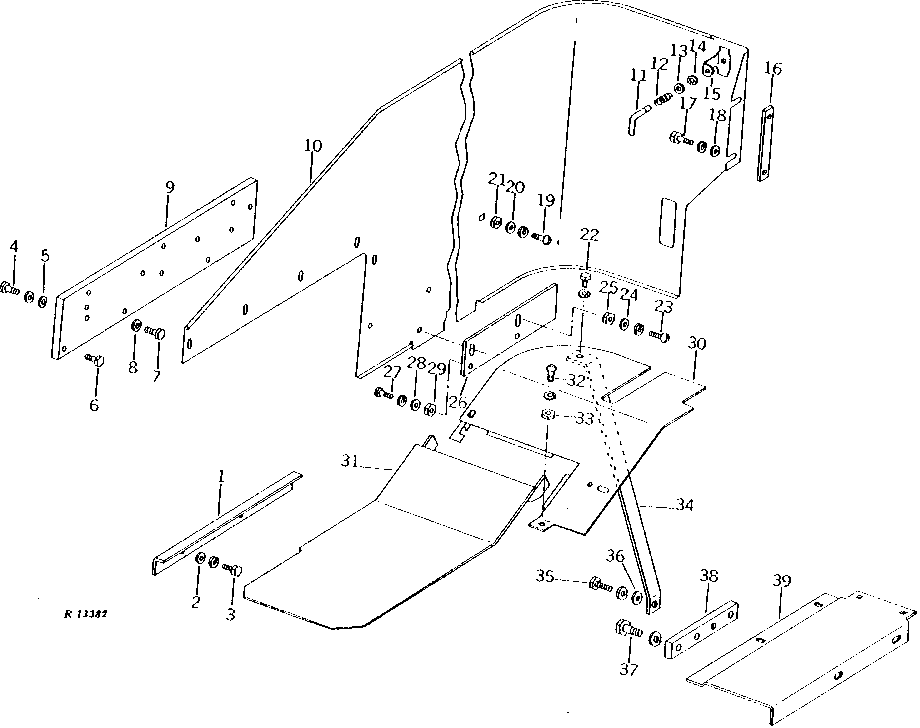

OPERATOR SHIELDS, EXTENSIONS, AND BATTERY BOX COVER (TRACTOR SERIAL NO. 114773- ) [04E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R42599	1	SUPPORT	(NLA)
2	24H1305	2	Washer	13/32" X 13/16" X 0.065"
3	12H304	2	Lock Washer	3/8"
3	19H2021	2	Cap Screw	3/8" X 5/8"
4	19H2284	6	Cap Screw	3/8" X 7/8"
4	12H304	6	Lock Washer	3/8"
5	24M7096	6	Washer	10.500 X 18 X 1.600 MM
6	19H2020	10	Cap Screw	5/16" X 1/2"
7	19H2021	4	Cap Screw	3/8" X 5/8"
8	24H1136	10	Washer	11/32" X 11/16" X 0.065"
9	R34945	1	PLATE	(NLA)
10	AR44720	1	SHIELD	L.H. (NLA)
10	AR40439	1	SHIELD	R.H. (NLA)
11	R27506	1	PIN	-
12	R28783	1	Compression Spring	-
13	24H1286	1	Washer	9/32" X 1/2" X 1/16"
14	R72654	1	Snap Ring	(SUB FOR R27507)
15	R27503	1	BRACKET	(NLA)
16	R34887	2	STRAP	(NLA)
17	19H1901	4	Cap Screw	5/16" X 2"
17	12H304	4	Lock Washer	3/8"
18	24H1305	4	Washer	13/32" X 13/16" X 0.065"
19	03H1500	1	Bolt	3/8" X 1"
19	12H304	1	Lock Washer	3/8"
20	24H1305	1	Washer	13/32" X 13/16" X 0.065"
21	14H1076	1	Nut	3/8"
22	12H304	2	Lock Washer	3/8"
22	19H1936	2	Cap Screw	3/8" X 3/4"
23	03H1500	2	Bolt	3/8" X 1"
23	12H304	2	Lock Washer	3/8"
24	24H1305	2	Washer	13/32" X 13/16" X 0.065"
25	14H1076	2	Nut	3/8"
26	R42600	1	BRACKET	(NLA)
27	03H1500	2	Bolt	3/8" X 1"
27	12H304	2	Lock Washer	3/8"
28	24H1305	2	Washer	13/32" X 13/16" X 0.065"
29	14H1076	1	Nut	3/8"
30	AR44717	1	EXTENSION	L.H. (NLA)
31	AR44718	1	COVER	(NLA)
32	03H1765	1	Bolt	3/8" X 3/4"
32	12H304	1	Lock Washer	3/8"
33	14H1076	1	Nut	3/8" HS, SAE 8
34	R34882	2	SUPPORT	(NLA)
35	19H1792	2	Cap Screw	1/2" X 1"
35	12H301	2	Lock Washer	1/2"
36	24H1625	2	Washer	17/32" X 1" X 0.120"
37	19H1815	4	Cap Screw	1/2" X 1-1/4"
37	12H301	4	Lock Washer	1/2"
38	R34881	2	PLATE	(NLA)
39	R42595	1	EXTENSION	R.H. (NLA)
