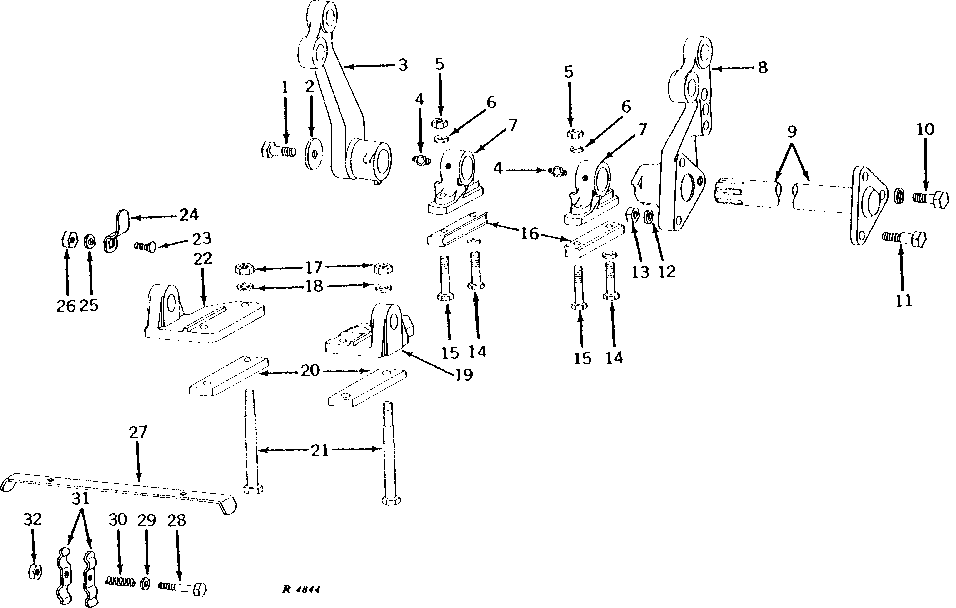

FRONT MOUNTED ROCKSHAFT (ROW-CROP AND UTILITY) [03C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1756	1	Cap Screw	5/8" X 1-1/2"
2	R20135	1	Washer	-
3	R38089	1	ARM	(SUB FOR R26709) (NLA)
4	JD7778	2	Lubrication Fitting	30° X 1/8"
5	14H1040	2	Nut	1/2"
6	12H301	2	Lock Washer	1/2"
7	R31403	2	BRACKET	(NLA)
8	R26708	1	ARM	R.H. (NLA)
9	AR34350	1	ROCKSHAFT	(NLA)
10	19H3049	1	CAP SCREW	7/16" X 5-1/2", (NLA)
10	12H294	1	Lock Washer	5/8"
11	R27819	2	BOLT	(NLA)
12	12H294	2	Lock Washer	5/8"
13	14H1083	2	Nut	5/8"
14	19H1990	2	Cap Screw	1/2" X 2-1/4"
14	12H301	2	Lock Washer	1/2"
15	19H1974	2	Cap Screw	1/2" X 2-3/4"
16	R28755	2	SUPPORT	(NLA)
17	14H1039	4	Nut	5/8"
18	12H294	4	Lock Washer	5/8"
19	R26710	1	BRACKET	R.H. (NLA)
20	R38093	2	STRAP	(SUB FOR R27549) (NLA)
21	R26784	4	BOLT	(NLA)
22	R26711	1	BRACKET	L.H. (NLA)
23	03H1765	2	Bolt	3/8" X 3/4", (RU)
24	R31432	2	HOLDER	(RU) (NLA)
25	12H304	2	Lock Washer	3/8", (RU)
26	14H1076	2	Nut	3/8", (RU)
27	R31431	1	BRACKET	(RU) (NLA)
28	19H1733	2	CAP SCREW	3/8" X 2-1/2", (RU)
29	24H1301	2	Washer	13/32" X 9/16" X 0.065", (RU)
30	R26823	2	COMPRESSION SPRING	(RU)
31	R31433	4	Half Clamp	(RU)
32	14H1076	2	Nut	3/8", (RU)

FRONT MOUNTED ROCKSHAFT (ROW-CROP AND UTILITY) [03C24]

Нет текстового описания
