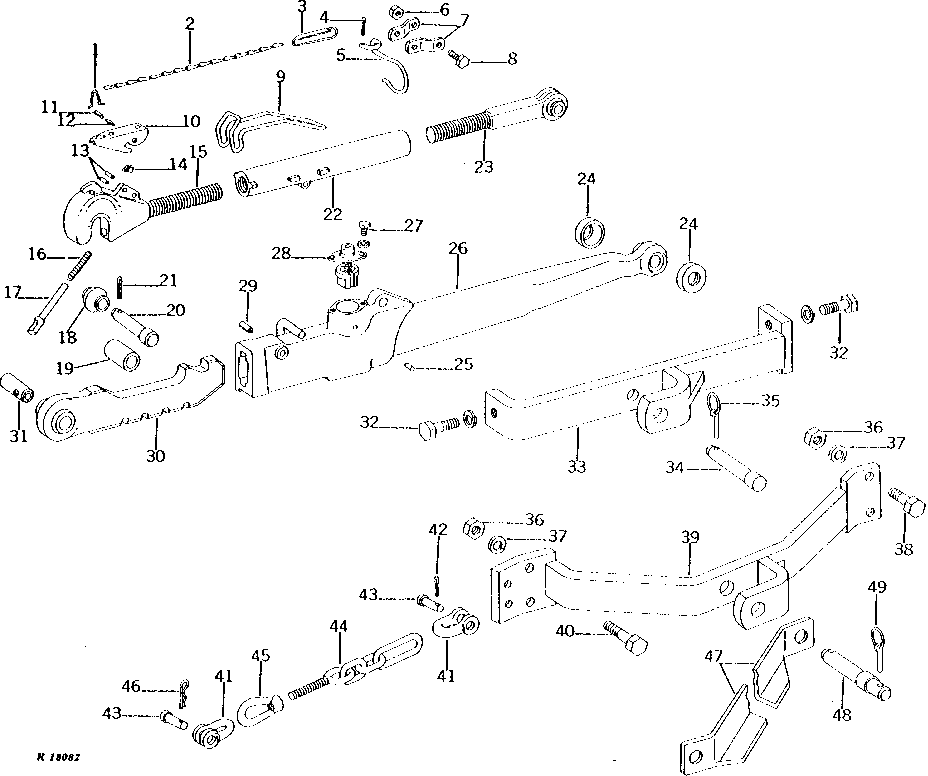

DRAFT LINKS, CENTER LINK, AND SUPPORTS (HI-CROP) [03D18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F2949R	1	CLIP	(NLA)
2	R26814	1	LINK CHAIN	(NLA)
3	F2827R	1	CLIP	-
4	11M7059	1	Cotter Pin	3.200 X 20 MM
5	R53762	1	HOOK	(SUB FOR R32119 OR R47072)
6	14H785	2	Nut	5/16"
7	R40633	2	BRACKET	-
8	19H1901	1	Cap Screw	5/16" X 2"
9	R42495	1	HANDLE	(SUB FOR R27007)
10	F2824R	1	HANDLE	-
11	34H299	1	Spring Pin	7/32" X 1-1/4"
12	34H252	1	SPRING PIN	1/8" X 1-1/4"
13	34H283	2	Spring Pin	3/16" X 1-1/8"
14	F2823R	1	Spring	-
15	F2820R	1	LINK END	-
16	F2822R	1	SPRING	-
17	R53196	1	LATCH	(SUB FOR F2821R)
18	F2680R	1	BALL STUD	(A)
18	F2681R	1	BALL	(B)
19	28H1753	1	BUSHING	(B) 3/4" X 2-1/16"
20	R58262	1	Pin	(A) (SUB FOR F2682R, R28061 OR R44917) (SUB L41286, L41287 AND L36470)
20	R53296	1	Pin Fastener	(B) (SUB FOR F2683R OR R44918)
21	11M7040	1	Cotter Pin	6.300 X 50 MM
22	T12552	1	LINK BODY	(NLA)
23	AT11685	1	END	-
24	R26608	4	Washer	-
25	B2641R	2	DOWEL PIN	-
26	AR27649	1	LINK BODY	(L.H. WHEN USED WITH AR33952) (SUB AR69315 AND AR90082)
26	AR27650	1	LINK BODY	(R.H. WHEN USED WITH AR33952) (SUB AR69316 AND AR90082)
27	12H302	4	Lock Washer	1/4"
27	19H1227	4	Cap Screw	1/4" X 1/2"
28	AR69317	2	LATCH	(SUB FOR AR30288) (SUB AR90082)
28	AR90082	2	LOCK	(SUB FOR AR69317)
29	34H371	2	Spring Pin	1/2" X 2"
30	AR27645	1	DRAFT LINK END	R.H. (MARKED R28255)
30	AR27646	1	DRAFT LINK END	L.H. (MARKED R28256)
31	R66432	2	Bushing	(A) SHORT, (SUB FOR F2684R)
31	R66433	2	Bushing	(B) LONG, (SUB FOR F2685R)
32	19H2589	6	Cap Screw	3/4" X 1-7/8"
32	12H236	6	Lock Washer	3/4"
33	AR33952	2	SUPPORT	(HITCH FOR WIDE CLEARANCE IMPLEMENTS) (NLA)
34	R26609	2	PIN	-
35	M115827	2	Pin	(SUB FOR AR62151 OR B11182)
36	14H794	8	Nut	3/4"
37	12H236	8	Lock Washer	3/4"
38	19H1782	4	Cap Screw	3/4" X 2-1/4"
39	AR33954	1	SUPPORT	(C) (NLA)
39	AR33955	1	SUPPORT	(C) (NLA)
40	19H1715	4	Cap Screw	3/4" X 3"
41	31603	4	CLEVIS	(NLA)
42	11M7084	2	Cotter Pin	5 X 25 MM
43	RV695A	4	PIN FASTENER	-
44	AR27790	2	LINK CHAIN	(NLA)
45	R21342	2	NUT	-
46	A3581R	2	Spring Locking Pin	-
47	R28272	2	BRACE	(NLA)
48	R28271	2	PIN	-
49	M115827	4	Pin	(SUB FOR AR62151 OR B11182)
..	AF2710R	1	BALL	(SUB F2680R, R58262, (2) R66432, (2) R66433 AND 11M7038) (BALL INNER DIAMETER, 49/64")
..	AF2711R	1	BALL	(CONSISTS OF F2681R, R53296, 28H1753 AND 11M7040) (BALL INNER DIAMETER, 1-1/64")
..	AF3147R	1	BAR	-
