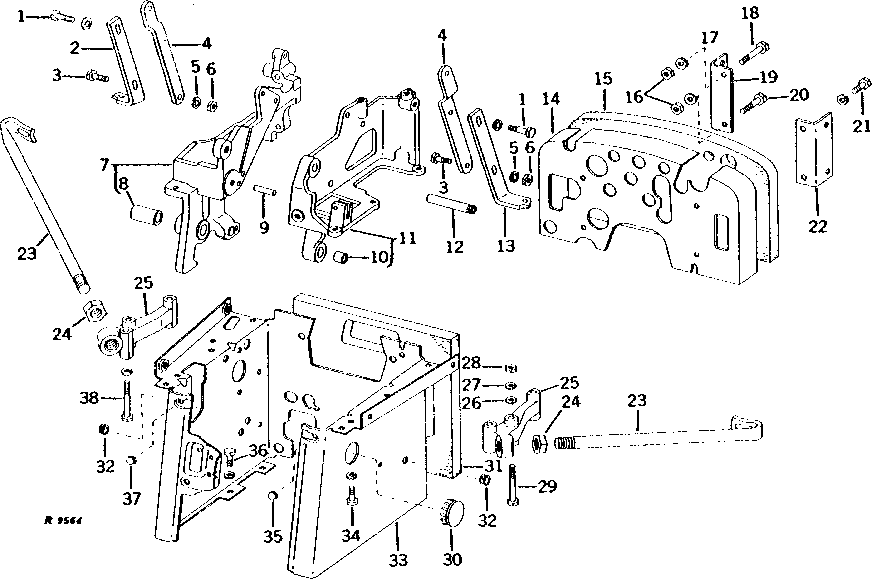

CONTROL SUPPORT AND ASSOCIATED PARTS [04D13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H310	2	Lock Washer	3/8"
1	19H2552	2	CAP SCREW	3/8" X 1-1/8"
2	R31231	1	SUPPORT	L.H.
3	19H1731	2	Cap Screw	3/8" X 1"
4	R31229	2	SUPPORT	-
5	12H310	2	Lock Washer	3/8"
6	14H1076	2	Nut	3/8"
7	AR41175	1	BRACKET	L.H. (MARKED R33598 OR R41504) (SUB FOR AR32316) (POWER SHIFT) (RC AND ST) (NLA)
7	AR41176	1	BRACKET	L.H. (MARKED R33599 OR R41505) (SUB FOR AR32317) (POWER SHIFT) (RU) (NLA)
7	AR33384	1	BRACKET	L.H. (MARKED R34335) (SYNCRO-RANGE) (NLA)
8	R27567	1	BUSHING	-
9	H826R	1	DOWEL PIN	-
10	F2030R	1	BUSHING	-
11	AR32315	1	BRACKET	R.H. (MARKED R33597) (POWER SHIFT) (NLA)
11	AR41207	1	BRACKET	R.H. (MARKED R33597) (POWER SHIFT) (NLA)
11	AR33383	1	BRACKET	R.H. (MARKED R34334) (SYNCRO-RANGE) (NLA)
12	R33601	1	PIN FASTENER	(POWER SHIFT)
12	R41510	1	PIN FASTENER	(POWER SHIFT)
13	R31230	1	SUPPORT	R.H.
14	AR34011	1	ISOLATOR	(SUB AR34927)
14	AR34927	1	ISOLATOR	(NLA)
15	R56059	1	PAD	(SUB FOR R34562)
16	14H1076	2	Nut	(A) 3/8"
17	12H304	2	Lock Washer	(A) 3/8"
18	19H1726	1	Cap Screw	(A) 3/8" X 2-1/4"
19	R26895	1	ANGLE	(A)
20	19H1765	1	Cap Screw	(A) 3/8" X 1-3/4"
21	19H2284	2	Cap Screw	3/8" X 7/8"
21	12H304	2	Lock Washer	3/8"
22	R26895	1	ANGLE	-
23	R33767	2	SUPPORT	(ST)
23	R27941	1	SUPPORT	R.H. (RC AND HC)
23	R33767	1	SUPPORT	L.H. (RC AND HC)
23	R33767	2	SUPPORT	(RC LESS FENDERS AND HC)
24	C985R	2	NUT	(RC LESS FENDERS AND HC)
25	R34743	2	BRACKET	(RC LESS FENDERS AND HC)
25	R34743	2	BRACKET	(ST)
25	R34743	1	BRACKET	L.H. (RC AND HC)
25	R38341	1	BRACKET	R.H. (RC AND HC)
26	24H1305	1	Washer	13/32" X 13/16" X 0.065", (SYNCRO RANGE) (RC LESS FENDERS AND HC)
27	12H304	3	Lock Washer	3/8", (RC LESS FENDERS AND HC)
28	14H1076	2	Nut	3/8", (RC LESS FENDERS AND HC)
29	19H1944	3	Cap Screw	3/8" X 2-3/4", (RC LESS FENDERS AND HC)
30	R20513	1	PLUG	-
31	R27103	1	FOAM PAD	(GASOLINE AND LP-GAS) (RC AND ST)
31	R34564	1	FOAM PAD	(DIESEL) (RU AND OR) (NLA)
31	R34563	1	FOAM PAD	(DIESEL) (RC AND ST) (NLA)
31	R28260	1	FOAM PAD	(GASOLINE AND LP-GAS) (RU AND OR) (NLA)
32	R34811	2	GROMMET	(NYLON)
33	AR32819	1	SUPPORT	-
34	19H2284	1	Cap Screw	3/8" X 7/8", (6 USED SYNCRO-RANGE, 7 USED POWER SHIFT)
34	12H304	1	Lock Washer	3/8", (6 USED SYNCRO-RANGE, 7 USED POWER SHIFT)
35	R28473	1	Plug	(DIESEL)
36	19H1936	6	Cap Screw	3/8" X 3/4"
36	12H304	6	Lock Washer	3/8"
37	R28473	1	Plug	(SYNCRO-RANGE)
38	19H1944	3	Cap Screw	3/8" X 2-3/4", (RC LESS FENDERS AND ST)
38	12H304	3	Lock Washer	3/8", (RC LESS FENDERS AND ST)
