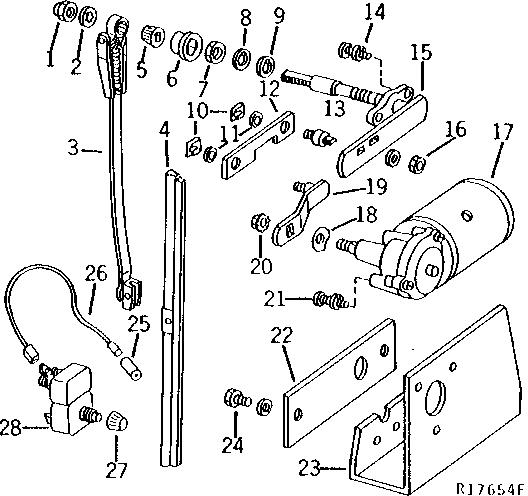

WINDSHIELD WIPER(STOLPER) (CAB SERIAL NO. 208300- ) [02E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U46514	1	NUT	(A)
2	12H303	1	Lock Washer	(A) 5/16"
3	AR45843	1	ARM	-
4	TY16302	1	WIPER BLADE	(SUB FOR AR45844)
5	U46513	1	NUT	(A)
6	U46512	1	CAP	(A) RUBBER
7	U46511	1	NUT	(A)
8	U46510	1	WASHER	(A) STEEL
9	U46509	1	WASHER	(A) LEATHER
10	U46506	2	Clip	(B)
11	T32255	2	Shim	(B)
12	AU43853	1	Link	(B)
13	U46507	1	PIN	(A)
14	AU43855	2	SCREW WITH WASHER	(B) (SUB 21H1298 AND 12M7060)
15	AR49972	1	PIVOT	(NLA)
16	12H297	1	Lock Washer	(A) 1/4"
16	14H649	1	Nut	(A) 1/4"
17	AR59444	1	MOTOR	(SUB FOR AT29855 OR AR49971) (ALSO ORDER AR64992) (SUB AT66481 AND AT66482)
17	AT66481	1	Wiper Motor	(ALSO ORDER AT66482) (SUB FOR AT29855, AR49971 OR AR59444) (SUB AT312452, AT314060, 14M7426 AND (3) 19M8425)
18	U46508	1	WASHER	(B)
19	AU43954	1	ARM	-
20	AU43857	1	LOCK NUT	(B)
21	AU43854	3	SCREW WITH WASHER	(B)
22	R48454	1	SEAL	(B) (NLA)
23	AT103999	1	BRACKET	(B) (SUB FOR U46515)
24	19H3003	3	Cap Screw	1/4" X 1/2"
24	12H302	3	Lock Washer	1/4"
25	R32029	3	ELEC. CONNECTOR TERMINAL	-
26	-	3	Part 29	279MM (11") (MAKE FROM R32024, TY16076 AND R32026)
26	-	1	Part 30	152MM (6") (MAKE FROM R32018, TY16076, R32027 AND R32024)
27	AR69370	1	KNOB	(SUB FOR AR49969)
28	AR45839	1	SWITCH	(USE WITH AT29855)
28	AR64992	1	Rotary Switch	(USE WITH AR59444 OR AT66481)

WINDSHIELD WIPER(STOLPER) (CAB SERIAL NO. 208300- ) [02E18]
