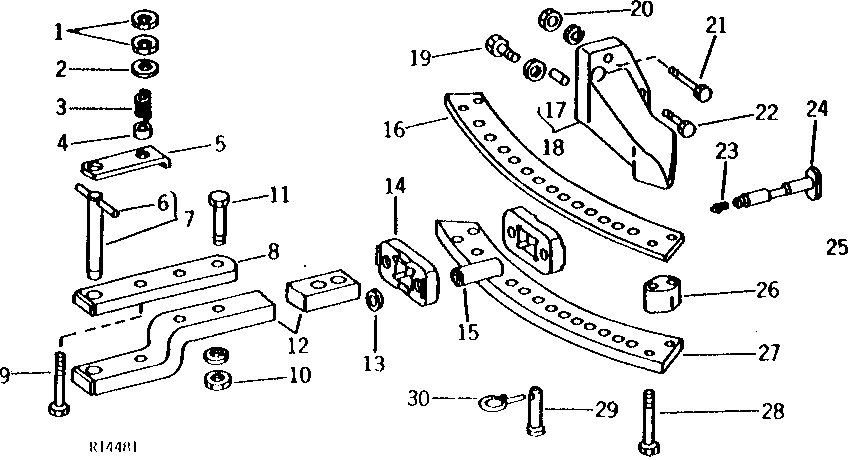

WIDE SWING DRAWBAR (ROW-CROP AND STANDARD) [03E02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1039	2	Nut	5/8"
2	24H1372	1	Washer	21/32" X 1-1/2" X 0.060"
3	F3541R	1	Spring	-
4	F3542R	1	Bushing	-
5	F3539R	1	Retainer	-
6	34H363	1	Spring Pin	3/8" X 4"
7	AR26462	1	PIN FASTENER	-
8	R26584	1	STRAP	-
9	19H3169	1	Cap Screw	5/8" X 4-1/4"
10	14H794	2	Nut	3/4"
10	12H236	2	Lock Washer	3/4"
11	19H3027	2	Cap Screw	3/4" X 3-1/2" HS, SAE 8
12	R28057	1	DRAWBAR	(SUB RE20662)
12	R81576	1	DRAWBAR	(HEAVY-DUTY) (NOT DRILLED FOR STRAP)
13	24M7353	2	Washer	(SUB FOR R42660)
14	R34374	2	HANGER	-
15	R54141	2	Bushing	(SUB FOR R35839)
16	R34375	1	STRAP	-
17	R54380	2	Dowel Pin	(SUB FOR T25317)
18	AR45104	1	SUPPORT	R.H. (MARKED R42695)
18	AR45105	1	SUPPORT	L.H. (MARKED R42696)
19	19H1890	4	Cap Screw	5/8" X 2-3/4"
19	12H294	4	Lock Washer	5/8"
20	14H1040	2	Nut	1/2"
20	12H301	2	Lock Washer	1/2"
21	19H1868	2	CAP SCREW	1/2" X 3-3/4"
22	19H1847	2	Cap Screw	5/8" X 2-1/2"
23	JD7759	2	Lubrication Fitting	-
24	AR61656	2	Pin	(SUB FOR AR44820)
25	A369R	2	SNAP RING	(SUB R73380)
26	R34373	2	SPACER	-
27	R34376	1	SUPPORT	-
28	19H3169	4	Cap Screw	5/8" X 4-1/4"
29	R58262	2	Pin	(SUB FOR R28061 AND R44917)
30	AR62151	2	Quick Lock Pin	(SUB FOR B11182) (SUB M115827)
