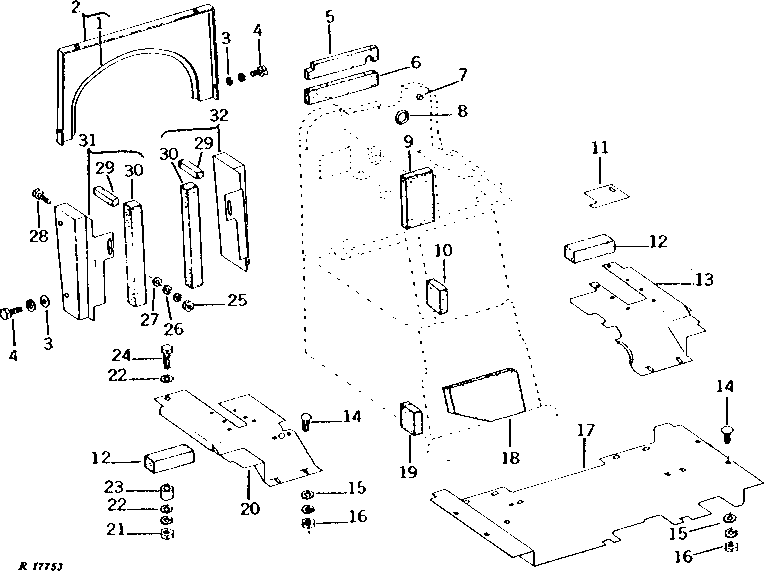

SEALING BAFFLES, COWL PANEL, PLATFORM, AND EXTENSION (HINSON) [03J01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44585	1	SEAL	-
2	AR51586	1	PANEL	-
3	24H1136	8	Washer	11/32" X 11/16" X 0.065"
4	19H1900	8	Cap Screw	5/16" X 3/4"
4	12H303	8	Lock Washer	5/16"
5	R45395	1	FOAM PAD	-
6	R45396	1	FOAM PAD	(NLA)
7	R45401	6	PLUG	(NLA)
8	R45398	1	PLUG	-
9	R48737	1	FOAM PAD	-
10	R46904	1	Isolator	-
11	R47907	1	PANEL	-
12	-	2	Part 13	38.1 X 50.8 X 139.7MM (1-1/2" X 2" X 5-1/2") (MAKE FROM R35339)
13	AR53142	1	EXTENSION	(SUB FOR AR50818) (ALSO ORDER 19H1900, 12H303 AND 24H1136)
14	03H1519	10	Bolt	3/8" X 1"
15	24H1305	10	Washer	13/32" X 13/16" X 0.065"
16	14H812	10	NUT	3/8"
16	12H304	10	Lock Washer	3/8"
17	R47898	1	PLATFORM	-
18	R36415	1	ISOLATOR	-
19	R46904	2	Isolator	-
20	AR53143	1	EXTENSION	(SUB FOR AR50819) (ALSO ORDER 19H1900, 12H303 AND 24H1136) (NLA)
21	14H1076	2	Nut	3/8"
21	12H304	2	Lock Washer	3/8"
22	24H1305	4	Washer	13/32" X 13/16" X 0.065"
23	28H1495	2	Spacer	3/8" X 1"
24	19H1726	2	Cap Screw	3/8" X 2-1/4"
25	14H732	2	Nut	3/8"
25	12H304	2	Lock Washer	3/8"
26	24H1305	2	Washer	13/32" X 13/16" X 0.065"
27	R48378	2	Washer	-
28	19H2791	2	Cap Screw	3/8" X 1-3/4"
29	-	2	Part 33	19.0 X 19.0 X 95.2MM (3/4" X 3/4" X 3-3/4") (MAKE FROM R47941)
30	R47941	2	ISOLATOR	-
31	AR50854	1	PANEL	-
32	AR50853	1	PANEL	-
