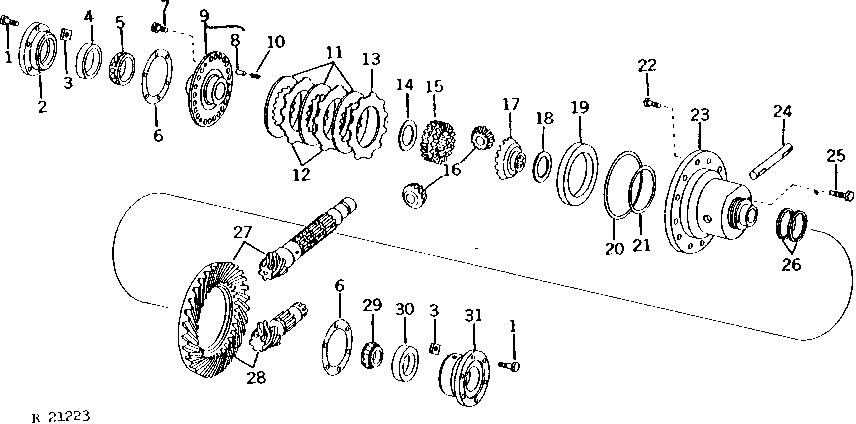

DIFFERENTIAL (WITH DIFFERENTIAL LOCK) [02I14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	(SUB FOR R41049 AND R41354) (SUB R112882)
2	R33493	1	BEARING HOUSING W/O BEARING	L.H.
3	14H823	2	NUT	1/2"
4	JD8259	1	Bearing Cup	-
5	JD8954	1	Bearing Cone	-
6	R46323	1	Shim	0.08MM (.003") (SUB FOR R26042)
6	R46324	1	Shim	0.13MM (.005") (SUB FOR R26043)
7	R40235	10	CAP SCREW	(USE WITH R34807)
7	R38614	10	CAP SCREW	(USE WITH R47711 AND T34236)
8	34H297	2	Spring Pin	7/32" X 1"
9	AT33285	1	COVER	(MARKED R34807, R47711 OR T34236) (SUB FOR AR47835 OR AR34754) (ALSO ORDER (10) R38614) (SUB R101055 AND (2) R56504)
10	R34863	2	SPRING	-
11	AR69349	3	DISK	(SUB FOR AR33974) (SUB RE12518)
11	RE294033	3	Disk With Inner Spline	(SUB FOR RE239643 OR RE12518)
12	R34520	2	CLUTCH PLATE	(SUB R78155)
13	R78156	1	Clutch Plate	(SUB FOR R34517)
14	R77145	1	WASHER	(SUB FOR R53202 OR R65741) (USE WITH R74869)
15	R74869	1	Bevel Gear	(USE WITH R65741) (SUB FOR R42620, R42447 OR R60008)
16	R42443	2	PINION	-
17	R74868	1	Bevel Gear	(SUB FOR R42445 OR R60007) (USE WITH R65741)
18	R77145	1	WASHER	(SUB FOR R53202 OR R65741) (SUB R93623) (USE WITH R74868)
19	R34526	1	PISTON	-
20	R41018	1	Packing	-
21	R44327	1	WASHER	(SUB FOR R41019)
22	R41048	10	CAP SCREW	-
23	AR34823	1	HOUSING	(A) (MARKED R34806)
23	R34806	1	HOUSING	-
23	400R	2	Ball	-
24	R68347	1	SHAFT	(SUB FOR R41902)
25	R70236	1	CAP SCREW	(SUB FOR R41050)
26	R34513	2	Ring	-
27	AR34735	1	BEVEL GEAR DRIVE	(MARKED R34875 AND R34873) (SUB AR34722, (2) R26227, (4) R26228, (2) R33413 AND (4) R33414) (MATCHED SET) (SYNCRO-RANGE)
27	RE171047	1	BEVEL GEAR DRIVE	(USED PART) (SUB FOR AR34722) (ALSO ORDER (2) R26227, (4) R26228, (2) R33413 AND (4) R33414)
28	AR34736	1	BEVEL GEAR DRIVE	(MARKED R34875 AND R34874) (SUB AR34723, RE50113 AND R51200) (MATCHED SET) (POWER SHIFT) ( RE194088 USED PART)
29	JD8159	1	Bearing Cone	-
30	JD8210	1	Bearing Cup	-
31	R34529	1	BEARING HOUSING W/O BEARING	R.H.
