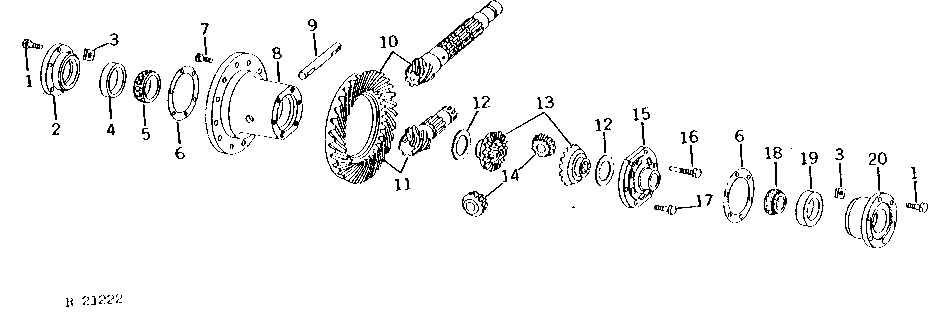

DIFFERENTIAL (TRACTORS LESS DIFFERENTIAL LOCK) [02I13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	(SUB FOR R41049 AND R41354) (SUB R112882)
2	R33493	1	BEARING HOUSING W/O BEARING	L.H.
3	14H823	2	NUT	1/2"
4	JD8259	1	Bearing Cup	-
5	JD8954	1	Bearing Cone	-
6	R46323	1	Shim	0.08MM (.003") (SUB FOR R26042)
6	R46324	1	Shim	0.13MM (.005") (SUB FOR R26043)
7	R41048	10	CAP SCREW	-
8	R33078	1	HOUSING	(SUB R44007)
9	R68347	1	SHAFT	(SUB FOR R41902)
10	RE171047	1	BEVEL GEAR DRIVE	(USED PART) (SUB FOR AR34722) (ALSO ORDER (2) R26227, (4) R26228, (2) R33413 AND (4) R33414)
10	AR34735	1	BEVEL GEAR DRIVE	(MARKED R34875 AND R34873) (SUB AR34722, (2) R26227, (4) R26228, (2) R33413 AND (4) R33414) (MATCHED SET) (SYNCRO-RANGE)
11	AR34736	1	BEVEL GEAR DRIVE	(MARKED R34875 AND R34874) (SUB RE50113, AR34723 AND R51200) (MATCHED SET) (POWER SHIFT) ( RE194088 USED PART)
12	R77145	2	WASHER	(USE WITH R74868) (SUB FOR R53202 OR R65741)
13	R74868	2	Bevel Gear	(SUB FOR R60007 AND R42445) (USE WITH R65741)
14	R42443	2	PINION	-
15	R33491	1	COVER	-
16	R70236	1	CAP SCREW	(SUB FOR R41050)
17	R41049	5	Cap Screw	(SUB R52634)
18	JD8159	1	Bearing Cone	-
19	JD8210	1	Bearing Cup	-
20	R33492	1	BEARING HOUSING W/O BEARING	R.H.

DIFFERENTIAL (TRACTORS LESS DIFFERENTIAL LOCK) [02I13]
