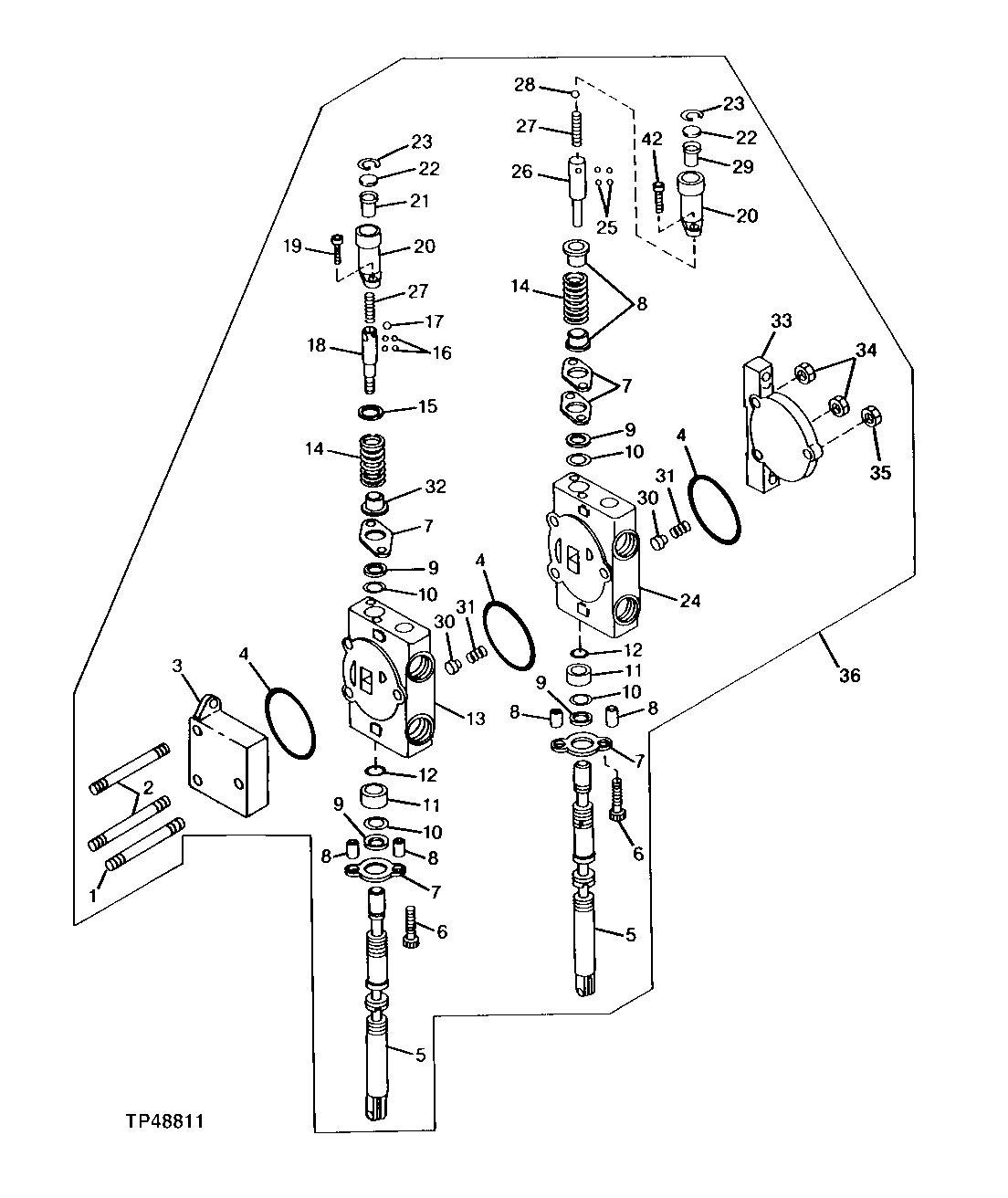

LOADER CONTROL VALVE - 2 SPOOL (HUSCO - SECTIONED VALVE) [02D21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	-	2	Part 2	-
3	-	1	Part 3	(E)
4	-	3	Part 4	(A)
5	-	2	Part 5	(E)
6	-	4	Part 6	(A)
7	T76504	5	Plate	-
8	-	4	Part 8	(B)
9	T76511	4	SEAL	-
10	-	4	Part 10	(A)
11	-	2	Part 11	(B)
12	-	2	Part 12	(A)
13	-	1	Part 13	(E) (LOADER LIFT CONTROL)
14	T76506	2	Spring	-
15	-	1	Part 15	(D)
16	-	2	Part 16	(D)
17	-	1	Part 17	(D)
18	-	1	Part 18	(D)
19	-	2	Part 19	(A)
20	-	2	Part 20	(B)
21	-	1	Part 21	(D)
22	-	2	Part 22	(B)
23	-	2	Part 23	(B)
24	-	1	Part 24	(E) (LOADER BUCKET CONTROL)
25	-	4	Part 25	(C)
26	-	1	Part 26	(C)
27	-	2	Part 27	(C) (D)
28	-	1	Part 28	(C)
29	-	1	Part 29	(C)
30	T76503	3	Poppet	-
31	T76509	3	Spring	-
32	T76505	5	Round Retainer	-
33	-	1	Part 33	(E)
34	14H785	4	Nut	5/16"
35	14H1080	2	Nut	3/8"
36	AW28752	1	Spool Valve	-
36	AW28744	1	KIT	(IN BOX MOUNTED AND CABLE CONTROLLED APPLICAT IONS
36	AW28888	1	Spool Valve	(IN MAST MOUNTED APPLICATIONS)
..	AW28915	2	Seal Kit	(F) (CONTAINS PARTS MARKED "A")
..	AW28916	2	Detent Kit	(F) (CAP KIT) (CONTAINS PARTS MARKED "B")
..	AW28917	1	Kit	(DETENT KIT FOR BUCKET SPOOL) (CONTAINS PARTS MARKED "C")
..	AW28918	1	Kit	(DETENT KIT FOR BOOM SPOOL) (CONTAINS PARTS MARKED "D")
