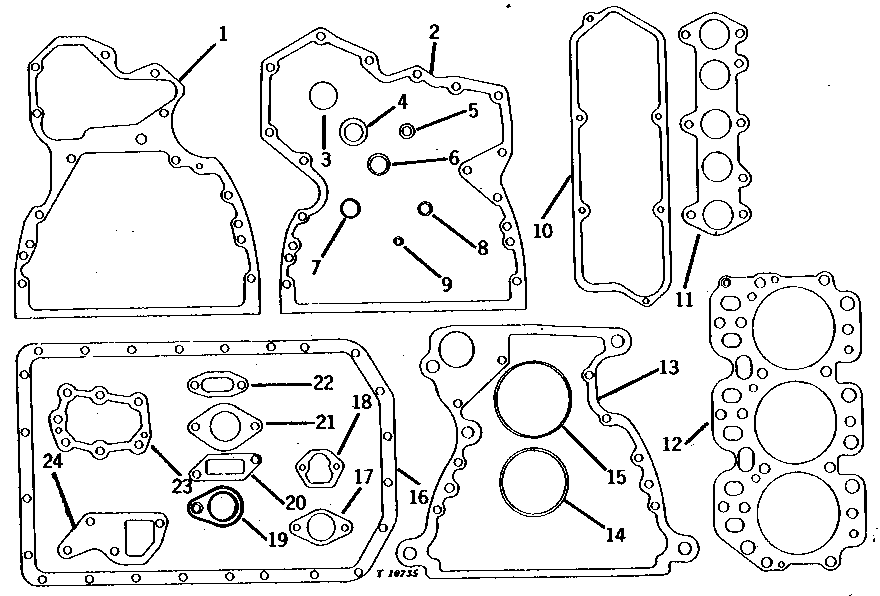

ENGINE OVERHAUL GASKET SET (GASOLINE) [02D04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R131794	1	Gasket	(SUB FOR R90648)
2	T20154	1	GASKET	TIMING GEAR COVER
3	T20328	1	Gasket	OIL FILLER CAP
4	T20112	1	GASKET	DISTRIBUTOR
5	T20304	1	WASHER	TACHOMETER DRIVE SHAFT
6	T13213	1	WASHER	ALUMINUM, OIL DRAIN PLUG
7	R56463	1	O-Ring	VENT TUBE OUTLET (SUB FOR R495R, THIS APPLICATION)
8	R74354	1	O-Ring	OIL PUMP OUTLET TUBE (SUB FOR R27166, THIS APPLICATION)
9	R87627	3	O-RING	INTAKE VALVES, (SUB FOR R27976, THIS APPLICATION)
10	T20111	1	GASKET	ROCKER ARM COVER (SUB AR102261 AND (6) AR103811 CAP SCREWS WITH WASHERS)
10	AR102261	1	GASKET	ROCKER ARM COVER
11	T20206	1	GASKET	ENGINE MANIFOLD (USE IF AVAILABLE)
11	R98843	1	GASKET	(SUB FOR T20206)
12	R80241	1	GASKET	(USE IF AVAILABLE) (SUB FOR R59447) CYLINDER HEAD
12	R97356	1	ENGINE CYLINDER HEAD GASKET	(SUB FOR R80241)
13	R97351	1	Gasket	FLYWHEEL HOUSING, (SUB FOR R70483) (SUB FOR R49516, THIS APPLICATION)
14	T20232	1	WASHER	GOVERNOR HOUSING
15	R48768	3	WASHER	CYLINDER LINER
16	R97341	1	Gasket	OIL PAN, (SUB FOR R49514)
17	T10079	1	GASKET	(USE IF AVAILABLE) CARBURETOR
17	R98821	1	GASKET	(SUB FOR T10079)
18	R520618	1	Gasket	FUEL PUMP, (SUB FOR R27285, R97350)
19	T20208	1	GASKET	(USE IF AVAILABLE) EXHAUST MANIFOLD
19	R98837	1	GASKET	(SUB FOR T20208)
20	T20212	1	GASKET	THERMOSTAT HOUSING
21	T20215	1	GASKET	THERMOSTAT COVER
22	R97352	1	Gasket	OIL FILLER INLET, (SUB FOR T20336)
23	T20273	1	GASKET	TIMING GEAR COVER OPENING COVER
24	T20243	1	Gasket	WATER PUMP COVER
..	AR97186	1	GASKET KIT	(SUB FOR AR53368 AND AR71995) (SUB RE16915, (3) AR71618 CYLINDER LINER PACKING KITS AND (6) AR103811 CAP SCREWS WITH WASHERS)
..	RE16915	1	GASKET KIT	(SUB FOR AR102303) (USE IF AVAILABLE) (ALSO ORDER (3) AR71618 CYLINDER LINER PACKING KITS)
..	RE38596	1	GASKET KIT	(SUB FOR RE16915)
