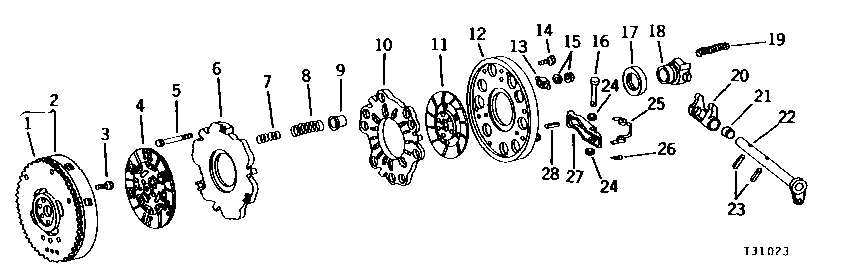

ENGINE AND PTO CLUTCH AND FLYWHEEL (WITH CONTINUOUS DRIVEN PTO) (WITHOUT REVERSER) [01E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20088	1	GEAR	(142 TEETH)
2	AR67977	1	FLYWHEEL	(MARKED R56899)
3	19H2898	1	Cap Screw	HS, SAE 8, 1/2" X 1-1/4"
4	RE29881	1	CLUTCH DISK	(SUB FOR AR66923 AND AR66924)
5	T23008	3	BOLT	-
6	T22194	1	CLUTCH PLATE	-
7	R26638	6	SPRING	(USE WITH AR66924)
7	R26638	9	SPRING	(USE WITH AR66923)
8	T22927	9	SPRING	OUTER
9	R27033	9	ROUND RETAINER	-
10	T22195	1	CLUTCH PLATE	-
11	AL19092	1	CLUTCH	(DIESEL) (SUB FOR AT21675)
11	RE31382	1	CLUTCH DISK	(GASOLINE) (SUB FOR AT20916)
12	T27706	1	COVER	-
13	T21932	3	BAR	-
14	19H3385	6	Cap Screw	1/2" X 1-1/8"
15	14H774	6	Nut	3/8"
16	T27708	3	PIN FASTENER	-
17	AR43065	1	THRUST BEARING	-
18	R51469	1	PLANET PINION CARRIER	-
19	T21450	1	EXTENSION SPRING	-
20	T21999	1	FORK	-
21	T21446	1	BUSHING	-
22	AT19837	1	SHAFT	(SUB FOR AR101631)
23	34H353	2	SPRING PIN	3/8" X 1-3/4"
24	24H1325	6	Washer	15/32" X 59/64" X 0.065"
25	T27707	3	SPRING	-
26	11M7059	3	Cotter Pin	3.200 X 20 MM
27	R96514	3	LEVER	(SUB FOR T22197)
28	T24381	3	DOWEL PIN	-

ENGINE AND PTO CLUTCH AND FLYWHEEL (WITH CONTINUOUS DRIVEN PTO) (WITHOUT REVERSER) [01E18]
