Открытый узел

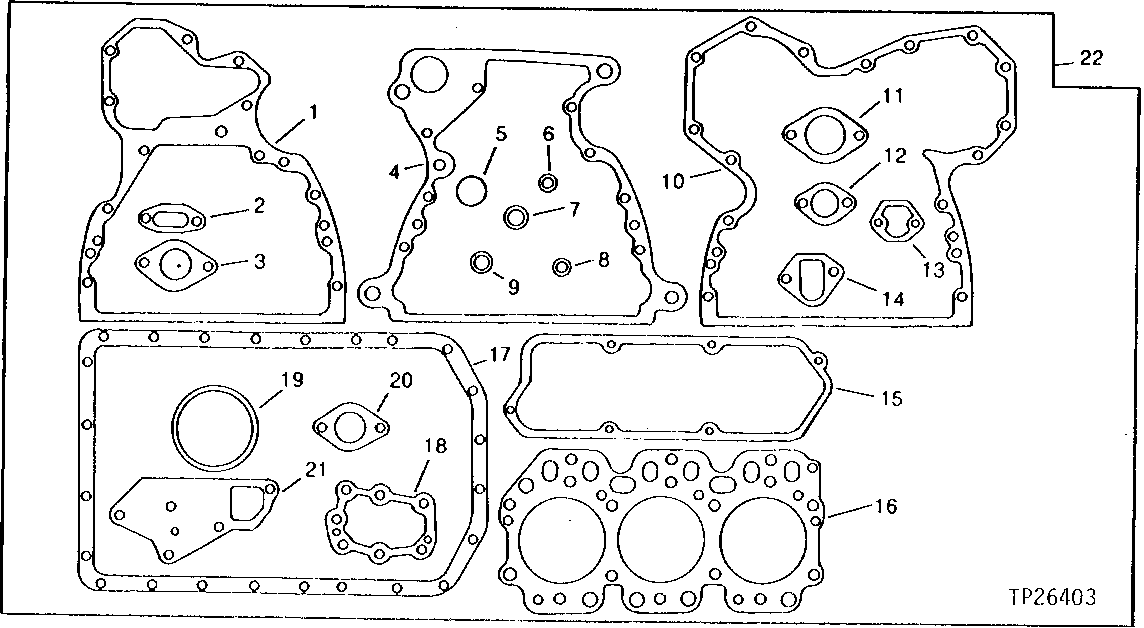

ENGINE OVERHAUL GASKET SET (DIESEL) (SERIAL NO. -710721) [02C23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R131794	1	Gasket	(SUB FOR R90648)
2	R97352	1	Gasket	OIL FILLER INLET, (SUB FOR T20336)
3	T20215	1	GASKET	THERMOSTAT COVER
4	R97351	1	Gasket	FLYWHEEL HOUSING, (SUB FOR R49516, THIS APPLICATION) (SUB FOR R70483)
5	T20328	1	Gasket	OL FILLER CAP
6	T20304	1	WASHER	TACHOMETER DRIVE SHAFT
7	T13213	1	WASHER	ALUMINUM, OIL DRAIN PLUG
8	R74354	1	O-Ring	OIL, PUMP OUTLET TUBE, (SUB FOR R27166, THIS APPLICATION)
9	R56463	1	O-Ring	VENT TUBE OUTLET, (SUB FOR R495R, THIS APPLICATION)
10	R121314	1	Gasket	TIMING GEAR COVER, (SUB FOR T20155 OR R97454 OR R119269)
11	R81275	1	Gasket	AIR INLET, (SUB FOR T20159, THIS APPLICATION)
12	T20219	1	GASKET	THERMOSTAT HOUSING
13	R520618	1	Gasket	FUEL PUMP, (SUB FOR R27285, R97350)
14	R125066	1	Gasket	INJECTION PUMP GEAR COVER, (SUB T20364 AND R69260) (SUB FOR R78366 OR R97773)
15	T20111	1	GASKET	ROCKER ARM COVER (SUB. AR102261 AND (6) AR103811 CAP SCREWS WITH WASHERS)
15	AR102261	1	GASKET	ROCKER ARM COVER
16	R98460	1	ENGINE CYLINDER HEAD GASKET	CYLINDER HEAD, (SUB FOR R52789)
17	T24534	1	GASKET	OIL PAN (CORK)
17	R97341	1	Gasket	OIL PAN (ASBESTOS) (SUB FOR R49514)
18	T20273	1	GASKET	TIMING GEAR COVER OPENING COVER
19	R48767	3	Packing	-
20	R90658	3	Gasket	EXHAUST MANIFOLD, (SUB FOR T20006) (ALL T20006 GASKETS MUST BE REPLACED AT THE SAME TIME. DO NOT MIX T20006 AND R90658)
21	T20243	1	Gasket	WATER PUMP COVER
22	AT23201	1	SEAL KIT	(SUB RE38570, (3) AR71617, (6) AR103811, (3) R48000 AND (3) RE32011)
22	AR97196	1	GASKET KIT	(SUB RE38570, (3) AR71617, (6) AR103811, (3) R48000 AND (3) RE32011)
22	RE501574	1	GASKET KIT	(SUB FOR AR102291 AND RE38570) (ALSO ORDER (3) AR71617, (6) AR103811, (3) R48000 AND (3) RE32011)

ENGINE OVERHAUL GASKET SET (DIESEL) (SERIAL NO. -710721) [02C23]

Нет текстового описания
