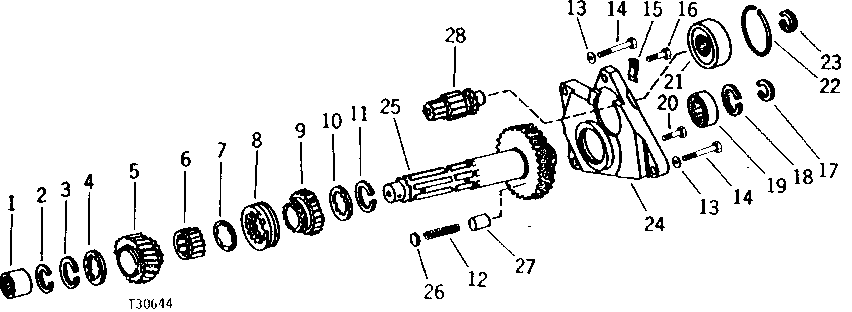

COUNTERSHAFT AND BEARING SUPPORT (WITHOUT INDEPENDENT PTO) [01G18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD9878	1	NEEDLE BEARING	-
2	L29048	1	SNAP RING	-
3	T19242	1	SNAP RING	-
4	T19245	1	THRUST WASHER	-
5	T30065	1	GEAR	LOW RANGE (22 TEETH)
6	T21964	1	SLEEVE	-
7	R55721	1	THRUST WASHER	-
8	T21970	1	SHIFT COLLAR	-
9	T21981	1	GEAR	REVERSE RANGE (WITHOUT REVERSER) (21 TEETH)
10	T19245	1	THRUST WASHER	(WITHOUT REVERSER)
11	T19242	1	SNAP RING	(WITHOUT REVERSER)
12	T24732	2	SPRING	-
13	R57696	2	Washer	(SUB FOR R1870R)
14	19H3065	2	Cap Screw	3/8" X 2"
15	T24736	1	CLAMP	-
16	19H3239	1	Cap Screw	3/8" X 1-1/4"
17	B1402R	1	SNAP RING	(SUB FOR F215R)
18	B190R	1	SNAP RING	-
19	JD9258	1	Ball Bearing	(SUB FOR JD9465)
20	19H2676	1	Cap Screw	3/8" X 1"
21	JD7672	1	BALL BEARING	-
22	T24737	1	SNAP RING	-
23	A364R	1	Snap Ring	-
24	L36557	1	Bearing Housing W/O Bearing	(SUB FOR T24691, THIS APPLICATION)
25	R56615	1	COUNTERSHAFT	(37 TEETH)
26	T24521	2	DISK	(WITH REVERSER)
27	T21969	2	FRICTION PLUG	-
28	R65576	1	GEAR	(12 TEETH) (SUB FOR T24728) (SUB R67341)
28	R67341	1	GEAR	(12 TEETH)

COUNTERSHAFT AND BEARING SUPPORT (WITHOUT INDEPENDENT PTO) [01G18]
