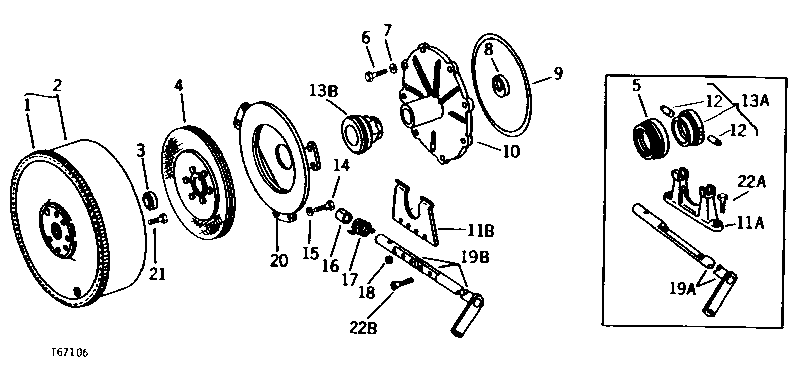

CLUTCH DISCONNECT AND FLYWHEEL (CONTINUOUS PTO OR NO PTO) (WITH REVERSER) [01E23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20088	1	GEAR	(142 TEETH)
2	AR67976	1	FLYWHEEL	(MARKED R56898)
3	JD9449	1	Ball Bearing	-
4	RE33891	1	CLUTCH DISK	(DIESEL) (SUB FOR AL24059)
4	AT21665	1	CLUTCH DISK	(GASOLINE)
5	AT17464	1	THRUST BEARING	-
6	19H3483	8	Cap Screw	3/8" X 1-1/8"
7	12H304	8	Lock Washer	3/8"
8	AR69708	1	SEAL	(SUB FOR AF1934R)
9	T22178	1	WASHER	-
10	T22177	1	SUPPORT	-
12	T22567	2	PIN FASTENER	-
14	L372T	6	CAP SCREW	-
15	12H303	6	Lock Washer	5/16"
16	R27320	1	BUSHING	-
17	T24948	1	SPRING	-
18	34H253	1	SPRING PIN	1/8" X 1-3/8"
20	AR63785	1	PLATE	(SUB AT60368)
20	AT60368	1	CLUTCH PLATE	-
20	AT22064	1	CLUTCH PLATE	(SUB AT60368)
21	19H3385	4	Cap Screw	HS, SAE 8, 1/2" X 1-1/8", (SUB FOR R28029, THIS APPLICATION)
11A	T22505	1	FORK	-
11B	T63651	1	FORK	-
13A	AT20055	1	HOUSING	CARRIER FOR THROW OUT BEARING, WITH PINS
13B	AT60365	1	ROLLER CARRIAGE	-
19A	AT27717	1	SHAFT	-
19B	AT60373	1	SHAFT	-
22A	19H2552	2	CAP SCREW	3/8" X 1-1/8"
22B	H78097	4	Screw	(SUB FOR R49482)

CLUTCH DISCONNECT AND FLYWHEEL (CONTINUOUS PTO OR NO PTO) (WITH REVERSER) [01E23]
