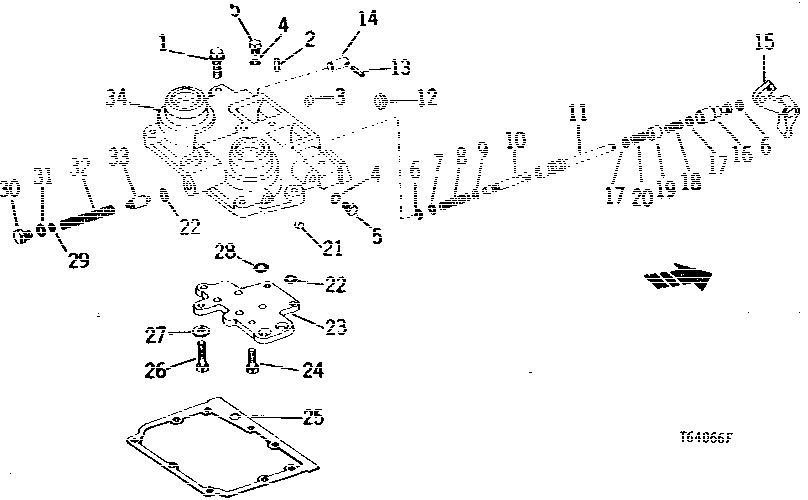

CLUTCH CONTROL VALVE AND COVER (WITH INDEPENDENT PTO) (SERIAL NO. -389636) [01F21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T22728	5	SCREW	-
2	R28634	2	Pin	-
3	M4224T	1	PLUG	-
4	R26287	3	O-Ring	-
5	R27216	3	DRAIN PLUG	(SUB FOR R31631)
6	R67794	2	SNAP RING	(SUB FOR R30828)
7	R31632	3	SHIM	-
8	R45582	1	SPRING	-
9	B1664R	1	SHIM	-
10	T28634	1	PIN	-
11	T30786	1	VALVE	(SUB R62531)
11	R62531	1	VALVE	-
12	T30789	1	PLUG	-
13	34H231	1	SPRING PIN	3/32" X 3/4"
14	T30788	1	PIN	-
15	T30770	1	LEVER	-
16	R53167	1	ACTUATOR	-
17	R31632	6	SHIM	-
18	R34863	1	SPRING	-
19	R53168	1	SLEEVE	-
20	T17589	1	SPRING	-
21	M1102T	1	PLUG	-
22	R56756	2	O-RING	(SUB FOR A3917R, THIS APPLICATION)
23	T30752	1	PLATE	-
24	19H3483	4	Cap Screw	3/8" X 1-1/8"
25	T36042	1	GASKET	-
26	19H2633	1	Cap Screw	3/8" X 1-1/2"
27	24M7096	1	Washer	0.413" X 0.709" X 0.063"
28	R375R	2	O-Ring	-
29	B1085R	2	WASHER	-
29	T33473	1	SHIM	-
30	R27218	1	Fitting Plug	-
31	R26448	1	O-Ring	-
32	T31636	1	Spring	PRESSURE REGULATING VALVE
33	L30783	1	VALVE	(SUB FOR R39294, THIS APPLICATION) (ALSO ORDER R56756, THIS APPLICATION)
34	AR61916	1	COVER	(MARKED R54186) (SUB FOR AT29681) (MARKED T30753)
