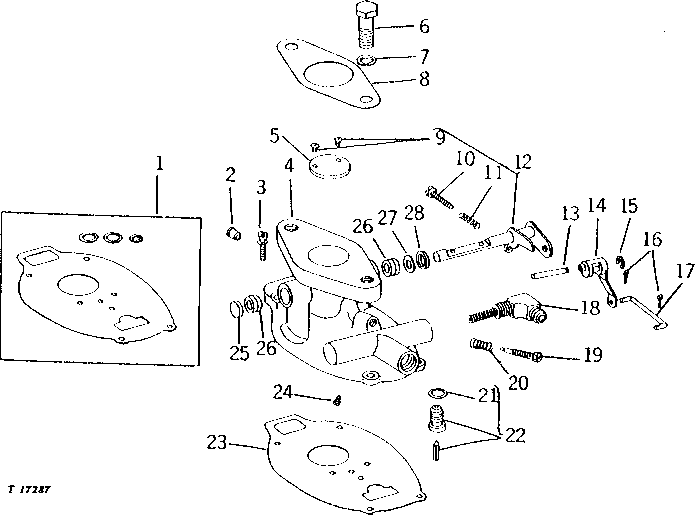

CARBURETOR BODY ASSEMBLY (MARVEL-SCHEBLER NO. TSX-904) [01D22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE244066	1	KIT	-
2	-	1	Part 2	(C) ( B17682 NO LONGER AVAILABLE)
3	15A85	4	SCREW	-
4	AT22998	1	HOUSING	INCLUDES ALL PARTS IDENTIFIED BY (C):
5	R56747	1	ACCELERATOR	(C)
6	19H3483	2	Cap Screw	3/8" X 1-1/8"
7	12H304	2	Lock Washer	3/8"
8	T10079	1	GASKET	-
9	AT25821	2	SCREW WITH WASHER	(B) (C)
10	T27410	1	SCREW	(C)
11	R10104	1	SPRING	(C)
12	AT25819	1	SHAFT	(C) SLOTTED THROTTLE
13	T25147	1	PIN FASTENER	(C)
14	T25158	1	LEVER	-
15	R31935	1	Snap Ring	(C)
16	11M7075	2	Cotter Pin	1.200 X 12 MM, (SUB FOR T25150)
17	T25149	1	PIN	-
18	T23528	1	STRAINER	(C)
19	43-33	1	NEEDLE	(B)
20	24-340	1	SPRING	(B)
21	R10170	1	GASKET	-
22	AT25491	1	VALVE	(B) FLOAT, WITH SEAT AND GASKET, (ALSO ORDER T23532 AND T23536)
23	16A41	1	GASKET	(B)
24	49-101L	1	NOZZLE	JET
25	R10300	1	PLUG	(C)
26	JD8867	2	NEEDLE BEARING	(C) (SUB FOR T23531)
27	R10194	1	PACKING	(B) (C)
28	R10182	1	ROUND RETAINER	(B) (C)
..	RE19402	1	CARBURETOR	(ALSO ORDER RE19408) (SUB FOR AT23000)
..	RE528308	1	KIT	( AR52589 NO LONGER AVAILABLE) REPAIR
