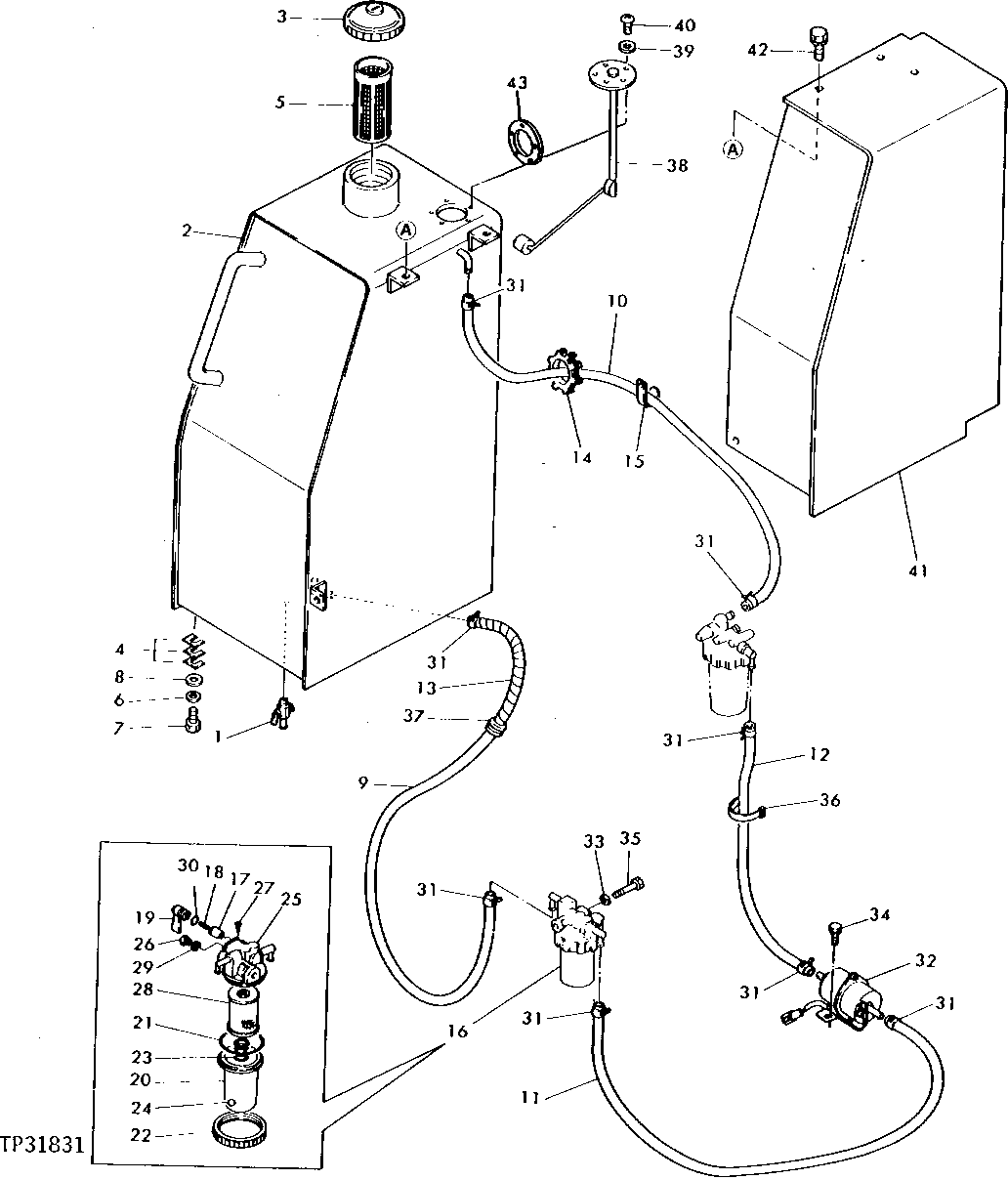

FUEL TANK, FUEL LINES, WATER SEPARATOR AND TRANSFER PUMP [E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T110803	1	HAND OPERATED VALVE	-
2	AT110396	1	FUEL TANK	-
3	T110805	1	FILLER CAP	-
4	T110080	2	SPACER	-
5	M800354	1	FUEL FILTER	-
6	12M7068	4	Lock Washer	14 MM
7	T110806	4	Bolt	(INCLUDES AJUSTING SPRING)
7	T110818	4	SPRING	-
8	T110615	4	WASHER	-
9	T111025	1	HYDRAULIC HOSE	-
10	T111025	1	HYDRAULIC HOSE	-
11	T111026	1	HYDRAULIC HOSE	-
12	T110303	1	LINE	-
13	T111027	1	OIL LINE	-
14	T110088	1	BUSHING	-
15	T111144	1	CLAMP	-
16	T110808	1	Separator	-
17	CH12734	1	Valve	-
18	CH10082	1	Spring	-
19	CH12735	1	Handle	-
20	CH15552	1	Bowl	-
21	CH10060	1	Packing	-
22	CH10106	1	Ring	-
23	CH16888	1	Spring	-
24	T111401	1	Float	-
25	-	1	Part 26	(SUB T110808)
26	CH10059	2	Plug	-
27	CH10084	1	Screw	-
28	T111005	1	Screen	-
29	CH10558	2	Packing	-
30	CH10571	1	Packing	-
31	TY22462	8	Clamp	(SUB FOR AR48236)
32	AT111831	1	FUEL PUMP	(SUB FOR AT110378)
33	12M7056	1	Lock Washer	8 MM, (SUB FOR 12M7065)
34	19M8425	2	Cap Screw	M6 X 16
34	12M7006	2	Lock Washer	6 MM
35	19M7274	1	Cap Screw	M8 X 70
36	T110612	2	TIE BAND	-
37	T110622	3	GROMMET	-
38	AT110013	1	GAUGE	-
39	T110411	5	Sealing Washer	-
40	CH10620	5	Screw	-
41	AT110409	1	COVER	USE WITH CANOPY, AUXILIARY VALVE AND CAB
42	12M7066	3	Lock Washer	10 MM
42	19M7166	3	Cap Screw	M10 X 20
43	R27181	1	GASKET	SENDING UNIT TO TANK

FUEL TANK, FUEL LINES, WATER SEPARATOR AND TRANSFER PUMP [E18]
