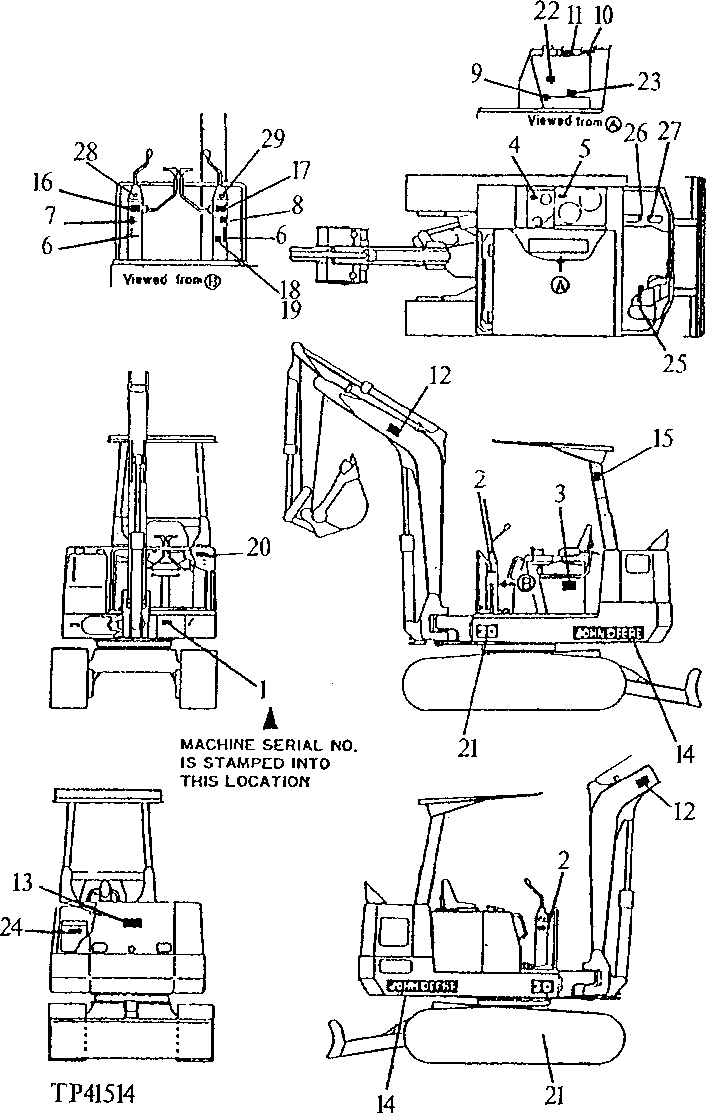

DECALS AND LABELS FOR UNITS WITH CANOPY [E21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	T105883	2	SAFETY SIGN	(WARNING)
3	-	1	Part 3	(CAUTION) ( T111715 NO LONGER AVAILABLE FOR SERVICE)
4	T79632	1	Label	(DIESEL ONLY)
5	T101942	1	Label	(HYDRAULIC OIL)
6	4149203	2	LABEL	(SUB FOR TH101569) (CONTROL LEVER LOCK)
7	4167679	1	LABEL	(SUB FOR TH101701) (LEFT CONTROL LEVER)
8	T111929	1	LABEL	(RIGHT LEVER LOCK)
9	-	1	Part 9	(OIL MEASURE SWING GEARBOX) ( T111930 NO LONGER AVAILABLE FOR SERVICE)
10	-	1	Part 10	(CAUTION) ( T111711 NO LONGER AVAILABLE FOR SERVICE)
11	T111710	1	LABEL	(RESTARTING)
12	JD5622	2	LABEL	(LEAPING DEER)
13	JD5623	1	LABEL	(LEAPING DEER)
14	JD5647	2	LABEL	(JOHN DEERE)
15	T113964	1	LABEL	(TOPS)
16	T111707	1	LABEL	(OPERATION, LEFT)
17	T111706	1	LABEL	(OPERATION, RIGHT)
18	T111931	1	LABEL	(BOOM SWING)
19	T111932	1	LABEL	(AUXILIARY BOOM SWING)
20	T111933	1	LABEL	(PERIODIC MAINTENANCE)
21	T111934	2	LABEL	(MODEL DESIGNATION)
22	T111935	1	LABEL	FUSE BOX
22	T114126	1	LABEL	FUSE BOX
23	T111721	1	LABEL	(SWING LOCK)
24	T114197	1	SAFETY SIGN	(SUB FOR T111023 AND T114159) (BATTERY)
25	T111137	1	LABEL	(AIR CLEANER)
26	CH15946	1	Label	(RADIATOR CAP)
27	T111705	1	LABEL	(ANTI-FREEZING)
28	T107234	1	LABEL	(LEFT CONTROL LEVER)
29	T107235	1	LABEL	(RIGHT CONTROL LEVER)

DECALS AND LABELS FOR UNITS WITH CANOPY [E21]
