CONTROL LEVERS AND LINKAGE [I13]

CONTROL LEVERS AND LINKAGE [I13]

CONTROL LEVERS AND LINKAGE [I13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

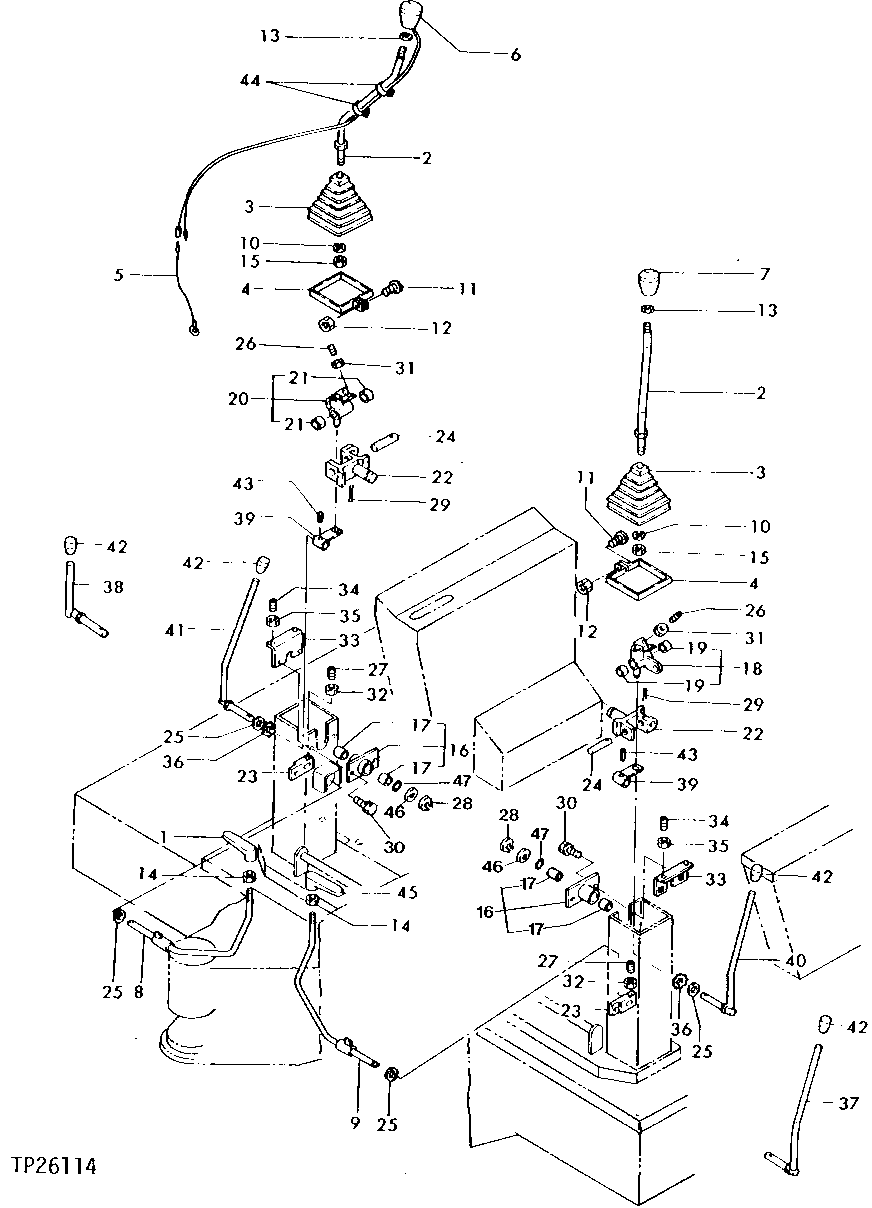

CONTROL LEVERS AND LINKAGE [I13]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T111952	1	KNOB	(LEFT) (SUB FOR T110835, THIS APPLICATION)
2	AT110017	2	LEVER	ARM AND BUCKET (RIGHT), BOOM AND HOUSE SWING (LEFT)
3	T114173	2	BOOT	(SUB FOR T110101)
4	AT110019	2	BAND	-
5	T110115	1	WIRING LEAD	(HORN)
6	T110833	1	KNOB	-
7	T110834	1	KNOB	-
8	AT110041	1	LEVER	RIGHT TRACK
9	AT110042	1	LEVER	LEFT TRACK
10	12M7069	2	Lock Washer	16 MM
11	CH10620	2	Screw	-
12	14M7229	2	Nut	M5
13	14M7274	2	Nut	M10
14	14M7274	2	Nut	M10
15	CH12405	2	Nut	-
16	-	2	Part 16	( AT110029 NLA)
16	AT111804	2	BOSS	-
17	T110075	4	BUSHING	-
17	CH14781	4	Needle Bearing	-
18	-	1	Part 20	(SUB AT111805) (LEFT) ( AT110030 NO LONGER AVAILABLE)
18	AT111805	1	LINK	(LEFT)
19	T110633	2	BUSHING	-
19	-	2	Part 23	(SUB T110633) ( T114163 NO LONGER AVAILABLE)
20	AT111806	1	LINK	(SUB FOR AT110031)
20	AT111806	1	LINK	(RIGHT)
21	T110633	2	BUSHING	-
21	-	2	Part 27	(SUB T110633) ( T114163 NO LONGER AVAILABLE)
22	T114164	2	LINK	-
22	T110103	2	LINK	(USE IF AVAILABLE)
23	T110106	2	ARM	-
24	T110111	2	SHAFT	-
25	T110113	4	SHIM	-
26	T114040	2	STUD	(SUB FOR T110841)
27	T114040	4	STUD	(SUB FOR T110841)
28	40M7080	2	Snap Ring	(SUB FOR CH16769)
28	40M1823	2	Snap Ring	(SUB FOR CH14826)
29	11M7087	2	Cotter Pin	4 X 40 MM
30	12M7066	4	Lock Washer	10 MM
30	19M7166	4	Cap Screw	M10 X 20
31	R67593	2	Nut	(SUB FOR 14M7229, THIS APPLICATION) (SUB FOR CH11460)
32	R67593	4	Nut	(SUB FOR 14M7229, THIS APPLICATION) (SUB FOR CH11460)
33	AT110034	2	SUPPORT	-
34	T114040	4	STUD	(SUB FOR T110841)
35	R67593	4	Nut	(SUB FOR 14M7229, THIS APPLICATION) (SUB FOR CH11460)
36	T110375	2	SPRING WASHER	-
37	-	1	Part 46	(USE WITH CAB) FUNCTION CONTROL LEVER LOCK (NO LONGER AVAILABLE FOR SERVICE)
38	T110838	1	LEVER	(USE WITH CAB) FUNCTION CONTROL LEVER LOCK
39	T110839	2	ARM	-
40	AT110402	1	LEVER	(USE WITH CANOPY) FUNCTION LEVER LOCK
41	AT110403	1	LEVER	(USE WITH CANOPY) FUNCTION LEVER LOCK
42	T110840	2	KNOB	-
43	CH12299	2	Pin	-
44	T110612	2	TIE BAND	-
45	T111953	1	KNOB	(RIGHT) (SUB FOR T110835, THIS APPLICATION)
46	T110403	2	LINING	-
47	T114160	2	O-RING	-
