BLADE CONTROL VALVE, CABLE AND LEVER [J01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

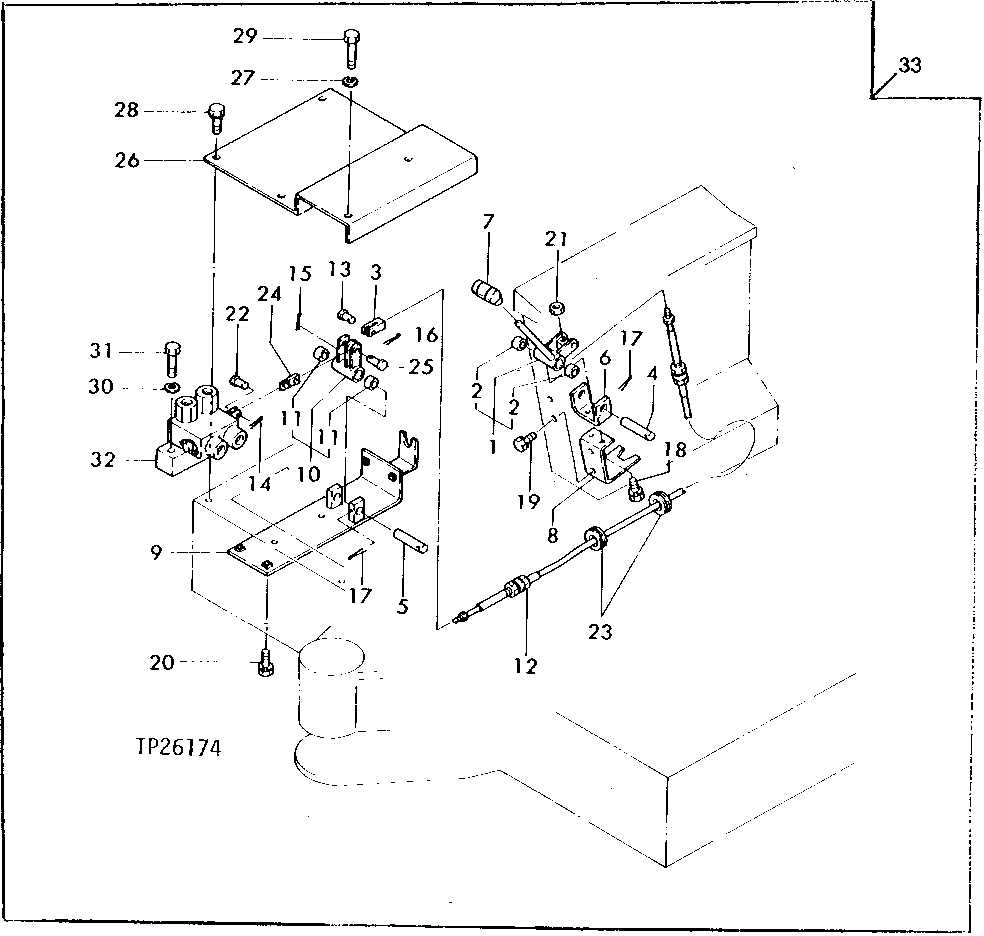

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT110671	1	LEVER	-
2	T110633	2	BUSHING	-
3	T110013	1	UNIVERSAL JOINT	-
4	AT110001	1	SHAFT	-
5	AT110001	1	SHAFT	-
6	T110105	1	BRACKET	-
7	T110837	1	GRIP	-
8	T111451	1	BRACKET	-
9	T111695	1	BRACKET	-
10	AT111056	1	LINK	-
11	T110633	2	BUSHING	-
12	T110122	1	CABLE	-
13	T110002	1	PIN	-
14	11M7094	1	Cotter Pin	1.600 X 16 MM, (SUB FOR T110417)
15	11M7058	1	Cotter Pin	2 X 25 MM, (SUB FOR T110418) (SUB FOR 11M7009)
16	11M7077	1	Cotter Pin	1.600 X 25 MM, (SUB FOR 11M7076)
17	11M7087	2	Cotter Pin	(SUB FOR T111661) (SUB FOR 11M7023)
18	19M7166	2	Cap Screw	M10 X 20
18	12M7066	2	Lock Washer	10 MM
19	12M7066	2	Lock Washer	10 MM
19	19M7166	2	Cap Screw	M10 X 20
20	12M7066	4	Lock Washer	10 MM
20	19M7166	4	Cap Screw	M10 X 20
21	14M7272	1	Nut	M6, (SUB FOR CH17809)
22	T110484	1	PIN FASTENER	-
23	T110622	2	GROMMET	-
24	T111662	1	LINK	-
25	T110627	1	PIN	-
26	T111696	1	STEP	-
27	12M7060	2	Washer	5.300 MM
28	12M7066	3	Lock Washer	10 MM
28	19M7166	3	Cap Screw	M10 X 20
29	CH15013	2	BOLT	-
30	12M7060	2	Washer	5.300 MM
31	CH15013	2	BOLT	-
32	T111664	1	HYD ACTUATED CONTROL VALVE	-
33	-	1	Part 37	(INCLUDES BLADE CONTROL VALVE, CABLE, LEVER AND HOSES PICTURED ON OTHER PAGES) ( AT107206 NO LONGER AVAILABLE)

BLADE CONTROL VALVE, CABLE AND LEVER [J01]
