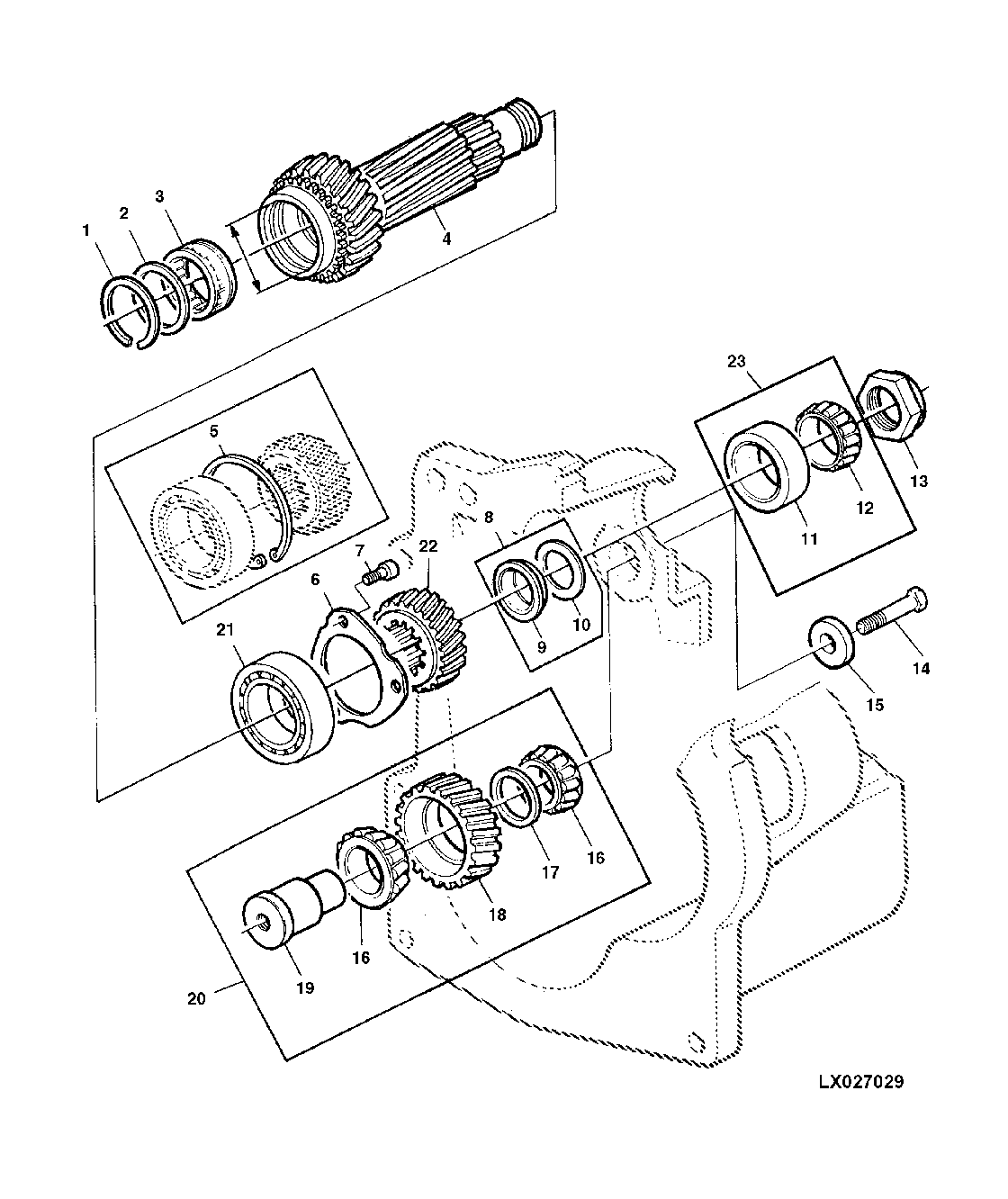

HOLLOW DRIVE SHAFT (SYNCHRONIZED TRANSMISSION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L60559	1	Snap Ring	-
1	L33270	1	Snap Ring	(FOR AL60017)
2	L60560	1	Thrust Washer	(FOR AL64058, AL68531)
3	JD10072	1	Needle Bearing	OD= 55MM (2.17")
3	AL63097	1	Needle Bearing	OD= 50MM (1.97")
4	AL60017	1	DRIVE SHAFT	Z= 32/16, ID= 55MM (2.17"), (SUB FOR AL40787) (ORD AL68531, AL63097, L60559, L60560)
4	AL68531	1	DRIVE SHAFT	Z= 32/16, ID= 50MM (1.97"), (SUB FOR AL64058 APPL)
4	AL61155	1	Drive Shaft	(FOR HIGH CLEARANCE ONLY) Z= 32/14, ID= 55MM (2.17"), (ORD AL64060, AL63097, L60559, L60560)
4	AL64060	1	Drive Shaft	(FOR HIGH CLEARANCE ONLY) Z=32/14, ID= 50MM (1.97")
5	L41669	1	Snap Ring	-
6	L57619	1	Flange	-
7	T22874	3	BOLT	(SUB FOR L61496 APPL)
8	AL60717	1	Shim Kit	-
9	L56377	1	Lock Washer	TK= 5.25MM (0.207")
9	L56005	1	Lock Washer	TK= 5.20MM (0.205")
9	L58114	1	Washer	TK= 5.15MM (0.203")
9	L58113	1	Washer	TK= 5.10MM (0.201")
9	L58112	1	Washer	TK= 5.05MM (0.199")
9	L58111	1	Washer	TK= 5.00MM (0.197")
9	L58110	1	Washer	TK= 4.95MM (0.195")
9	L58108	1	Washer	TK= 4.85MM (0.191")
9	L58107	1	Washer	TK= 4.80MM (0.189")
9	L58115	1	Washer	TK= 4.75MM (0.187")
9	L58118	1	Washer	TK= 4.70MM (0.185")
9	L58119	1	Washer	TK= 4.65MM (0.183")
9	L58120	1	Washer	TK= 4.60MM (0.181")
9	L58121	1	Washer	TK= 4.55MM (0.179")
9	L58109	1	Washer	TK= 4.90MM (0.193")
10	L58721	1	Shim	TK= 0.70MM (0.028")
11	-	1	Part 30	(ORD AL71147)
12	-	1	Part 31	(ORD AL71147)
13	L55841	1	Nut	-
14	19M7329	1	Cap Screw	M10 X 75
15	L33065	1	Washer	NLA; ORDER L79871
15	L79871	1	Washer	-
16	JD10330	2	Bearing Cone	-
17	L41657	1	Bushing	TK= 8.40MM (0.331")
17	L41650	1	Bushing	TK= 8.05MM (0.317")
17	L41656	1	Bushing	TK= 8.35MM (0.329")
17	L41655	1	Bushing	TK= 8.30MM (0.327")
17	L41654	1	Bushing	TK= 8.25MM (0.325")
17	L41653	1	Bushing	TK= 8.20MM (0.323")
17	L41652	1	Bushing	TK= 8.15MM (0.321")
17	L41651	1	Bushing	TK= 8.10MM (0.319")
17	L41649	1	Bushing	TK= 8.00MM (0.315")
18	L41639	1	Gear	Z= 25, (ORD AL66360)
18	L42153	1	Gear	(FOR HIGH CLEARANCE ONLY) Z= 25, (ORD AL66358)
18	L60387	1	Gear	(FOR HIGH CLEARANCE ONLY) Z= 25, (ORD AL66358)
19	L41641	1	Shaft	(ORD AL66360)
19	L41641	1	Shaft	(FOR HIGH CLEARANCE ONLY) (ORD AL66358)
20	AL66360	1	GEAR	-
20	AL66358	1	Gear	(FOR HIGH CLEARANCE ONLY)
21	JD10340	1	Tapered Roller Bearing	-
22	L41637	1	GEAR	Z= 26
23	AL71147	1	Bearing	ASSY

HOLLOW DRIVE SHAFT (SYNCHRONIZED TRANSMISSION)
