Открытый узел

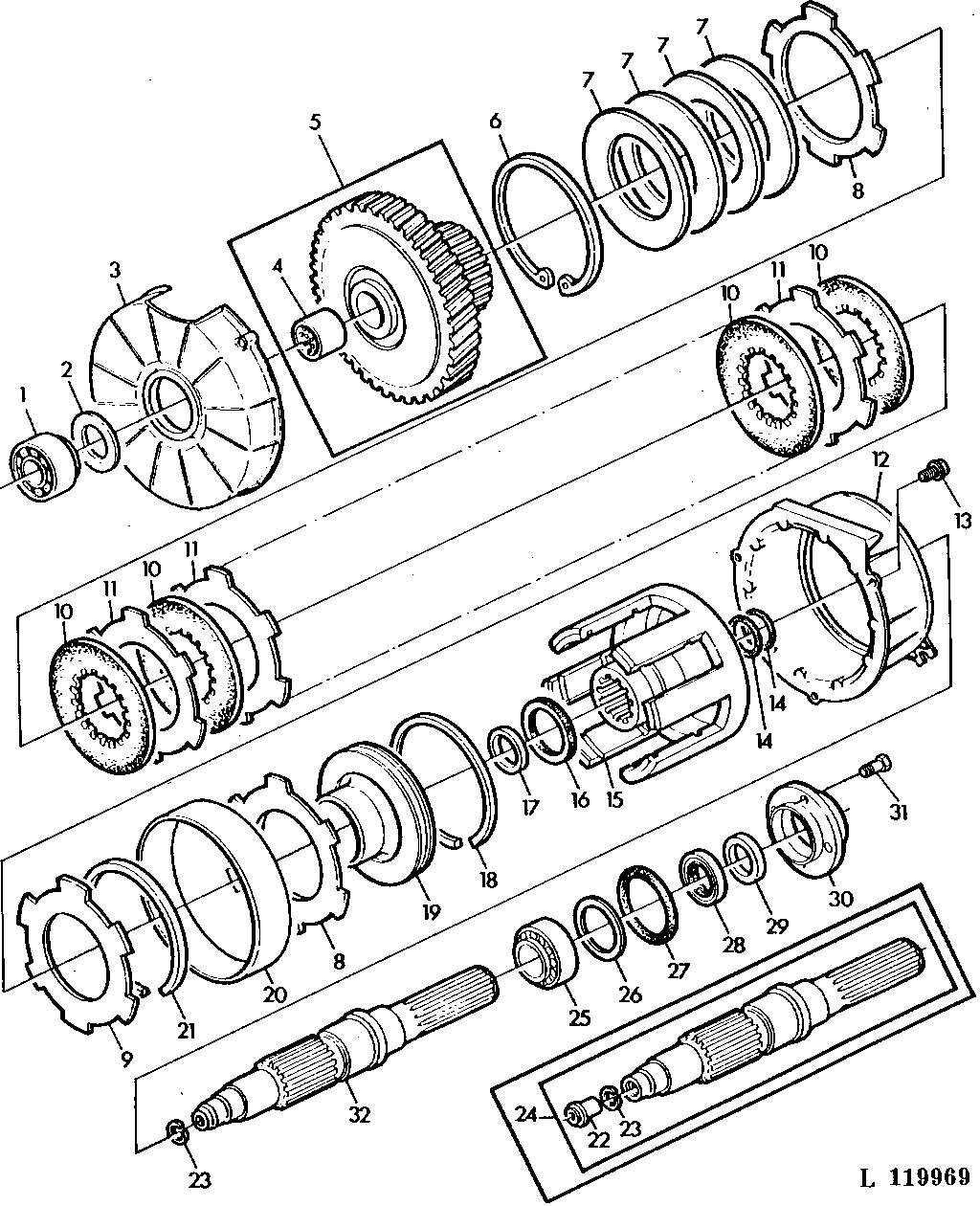

FRONT WHEEL DRIVE MULTI-DISK CLUTCH (HIGH CLEARANCE)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD10234	1	Tapered Roller Bearing	-
2	L39495	1	Washer	-
3	L39837	1	Housing	-
4	L33263	1	Bushing	(FOR AL37596)
4	-	1	Part 5	NSEP, (ORD AL67651)
5	AL67651	1	Gear	Z= 49, (SUB FOR AL37596)
6	40M7122	1	Snap Ring	145 X 4MM
7	L34068	4	Disk Spring	-
8	L38258	2	Clutch Plate	-
9	L37025	1	PLATE	-
9	L37025	1	PLATE	(FOR HIGH-CLEARANCE)
9	L41307	1	Plate	(FOR HIGH-CLEARANCE)
10	L34064	9	Disk With Inner Spline	(FOR HIGH-CLEARANCE)
10	L34064	11	Disk With Inner Spline	(FOR HIGH-CLEARANCE)
10	L34064	10	Disk With Inner Spline	-
10	L34064	9	Disk With Inner Spline	-
11	L34062	8	Disk With Outer Spline	-
11	L34062	8	Disk With Outer Spline	(FOR HIGH-CLEARANCE)
11	L34062	9	Disk With Outer Spline	-
11	L34062	10	Disk With Outer Spline	(FOR HIGH-CLEARANCE)
12	L41308	1	Shield	-
13	37M7060	3	Screw	M4 X 10
14	H35244	2	Ring	-
15	L41305	1	Drum	(FOR HIGH-CLEARANCE)
15	L39840	1	DRUM	-
15	L39840	1	DRUM	(FOR HIGH-CLEARANCE)
16	R39304	1	Washer	-
17	L33251	1	Washer	-
18	L34060	1	Piston Ring	-
19	L34059	1	PISTON	-
19	L34059	1	PISTON	(FOR HIGH-CLEARANCE)
19	L41599	1	Piston	(FOR HIGH-CLEARANCE)
20	L38692	1	Spacer	173 X 163.7 X 34.2MM
20	L38692	1	Spacer	(FOR HIGH-CLEARANCE) 173 X 163.7 X 34.2MM
20	L63135	1	SPACER	173 X 163.7 X 37MM
20	L41306	1	Bushing	(FOR HIGH-CLEARANCE) 173 X 163 X 38.3MM
21	L34067	1	Snap Ring	-
22	R39279	1	Retainer	-
23	R34140	1	Ring	-
24	AL37280	1	Drive Shaft	(ORD R34140, L62773)
25	JD37047	1	Tapered Roller Bearing	-
26	L33247	1	Shim	TK= 0.150MM (0.006")
26	L33252	1	Shim	TK= 0.200MM (0.008")
26	L33260	1	Shim	TK= 0.500MM (0.020")
27	L33257	1	O-Ring	-
28	48M7038	1	Seal	38 X 52 X 7MM
29	L39491	1	Washer	-
30	L39490	1	Bearing Housing W/O Bearing	-
31	19M7139	3	Cap Screw	M8 X 20, M8 X 20
32	L62773	1	Drive Shaft	(SUB FOR L62960)

FRONT WHEEL DRIVE MULTI-DISK CLUTCH (HIGH CLEARANCE)

Нет текстового описания
