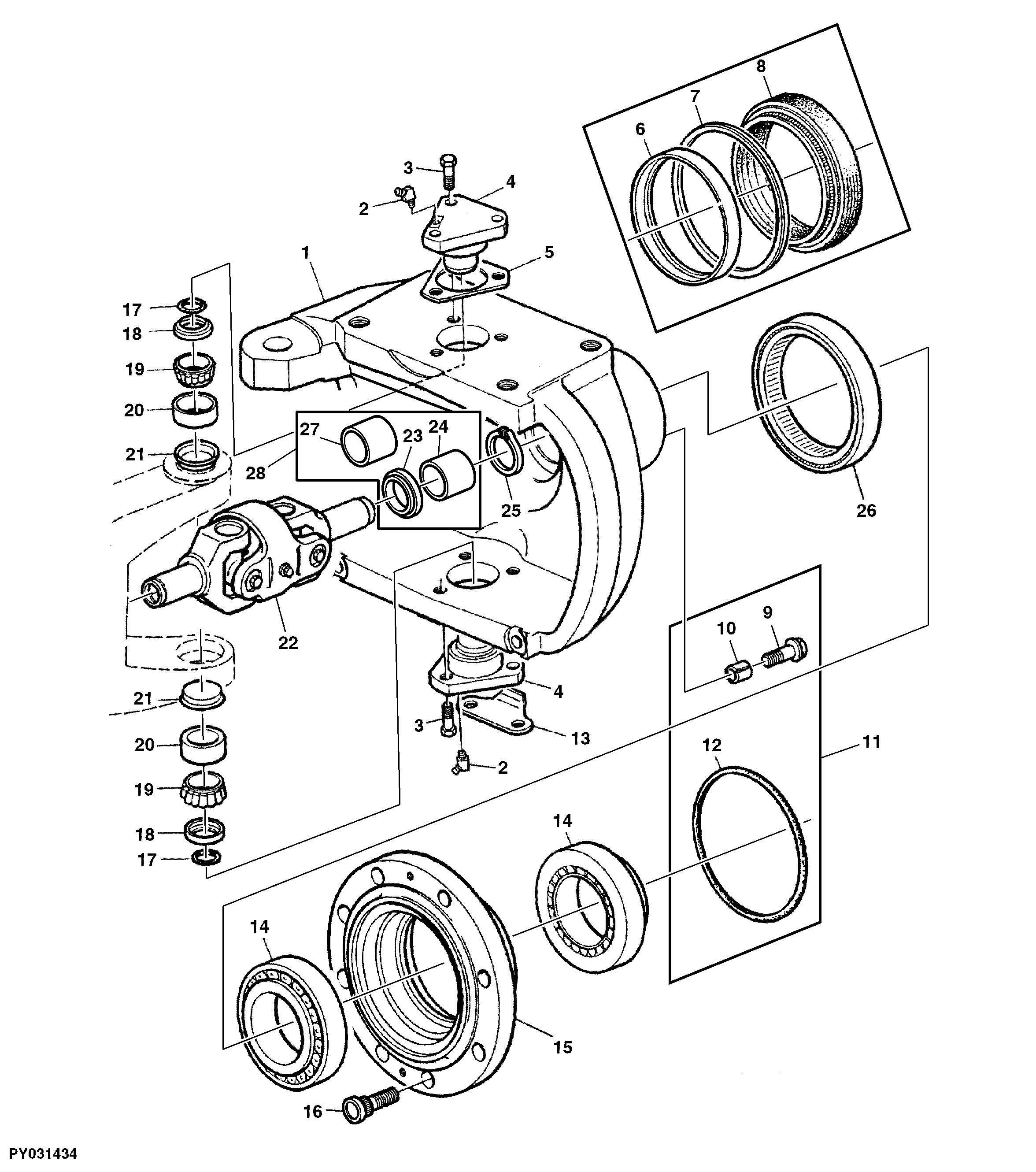

FRONT WHEEL DRIVE AXLE - KNUCKLE HOUSING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L41927	1	Housing	LH
1	L41926	1	Housing	RH
1	L64891	1	Housing	(REINFORCED VERSION) LH, (FOR AL69818)
1	L64890	1	Housing	(REINFORCED VERSION) RH, (FOR AL69819)
2	L40552	4	Lubrication Fitting	-
3	19M8011	12	Cap Screw	M12 X 30
4	L40004	4	Trunnion	-
5	L40075	1	Washer	TK= 1.0 mm (0.039")
5	L40074	1	Washer	TK= 1.4 mm (0.055")
5	L41007	1	Washer	TK = 0.8 mm (0.031")
5	L40076	1	Shim	TK = 0.6 mm (0.024")
5	L41006	1	Washer	TK = 0.4 mm (0.016")
5	L63128	1	Shim	TK = 0.3 mm (0.012")
5	L63127	1	Shim	TK = 0.2 mm (0.008")
6	L40279	2	Bushing	ORDER AL200971
7	L41158	2	Scraper Ring	ORDER AL200971
8	AL39339	2	Seal	ORDER AL200971
9	19M8121	16	Screw	M10 X 50
10	L41116	16	Bushing	-
11	AL39752	1	BUSHING KIT	-
12	L40281	2	O-Ring	-
13	L41930	2	Scraper	-
14	JD10249	4	Tapered Roller Bearing	-
15	L41928	2	Hub	-
16	L55598	16	Wheel Bolt	-
17	L55595	4	O-Ring	-
18	L55594	4	Bearing Cap	-
19	JD9053	4	Bearing Cone	-
20	JD9117	4	Bearing Cup	-
21	L39993	4	Cap	-
22	AL64120	2	Universal Driveshaft	-
22	AL61449	2	Universal Driveshaft	-
23	AL61448	2	Seal	(SUB FOR AL39338) (FOR AL71257 APPL)
24	L60088	2	Bushing	(SUB FOR L41160)
25	L40276	2	Snap Ring	-
26	AL68616	2	Seal	ORDER AL200971
26	AL200971	2	Seal	-
27	L65506	1	Sleeve	LGTH = 18 mm
27	L65507	1	Sleeve	LGTH = 24 mm
27	L65509	1	Bushing	LGTH = 19 mm
28	AL71257	1	Bushing Kit	-
..	AL71208	1	Bearing Kit	INCL KEYS. 17, 18, 21, 31

FRONT WHEEL DRIVE AXLE - KNUCKLE HOUSING
