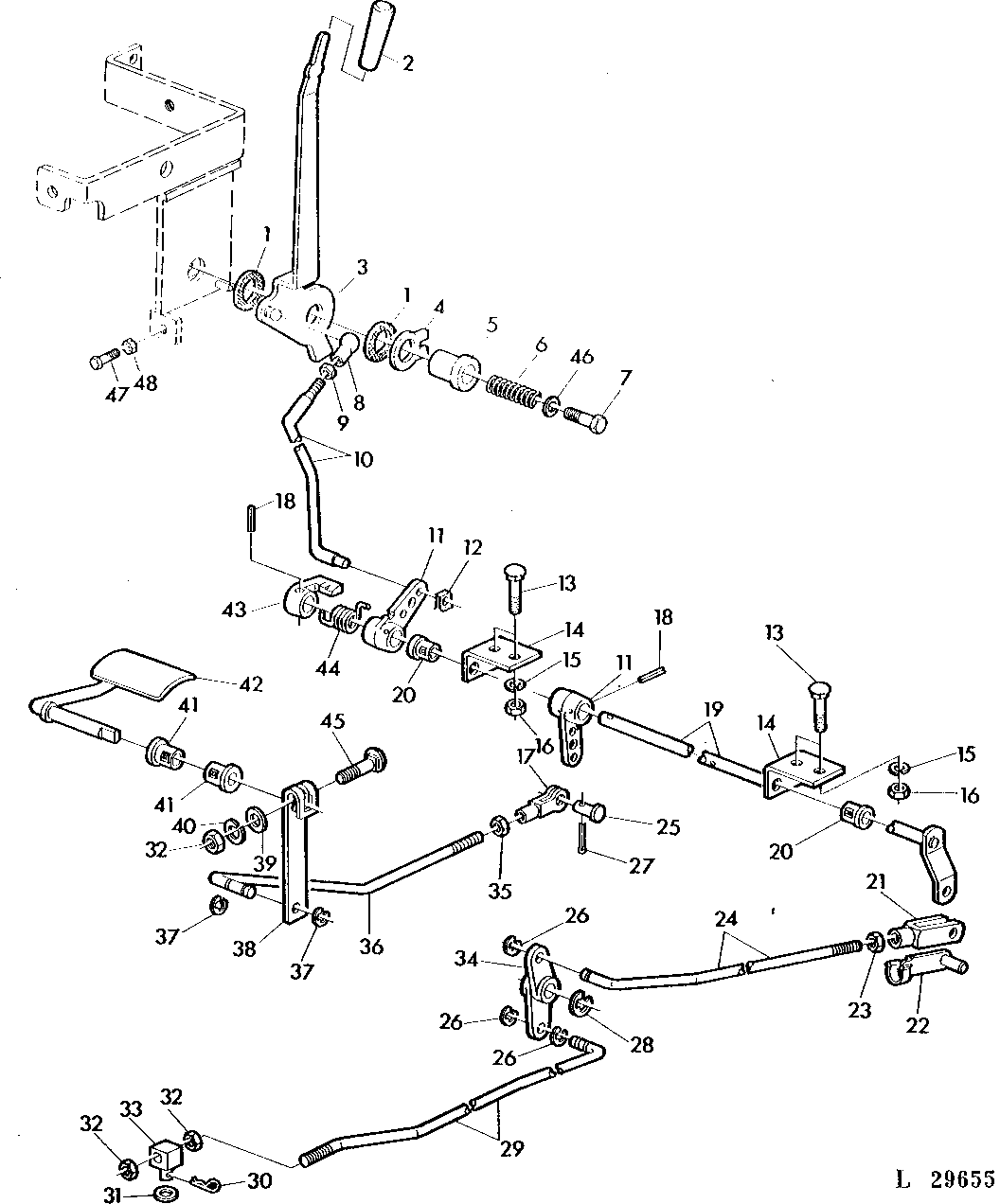

SPEED CONTROL LINKAGE (SOUND-GARD BODY) [01D22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R50226	2	WASHER	(SUB R105814)
2	R137740	1	Knob	(SUB FOR R50506, THIS APPLICATION) (SUB R161383)
3	AL36125	1	Lever	-
4	R52117	1	Washer	-
5	R50227	1	Round Retainer	-
6	R31271	1	Compression Spring	-
7	19M7378	1	Cap Screw	M8 X 45
8	56M7006	1	Ball Joint Socket	-
9	14M7272	1	Nut	M6
10	L38082	1	Rod	(SUB AL60741 AND AL60740)
11	R58509	2	Lever	-
12	L33681	1	Clamp	-
13	03H2070	4	Bolt	3/8" X 1-1/8"
14	R66807	2	Bracket	-
15	12H304	4	Lock Washer	3/8"
16	14H1076	4	Nut	3/8"
17	M3742T	1	Yoke	-
18	34H279	2	SPRING PIN	3/16" X 13/16"
19	AR88520	1	Shaft	-
20	R41076	2	Grommet	-
21	54M4420	1	Yoke	-
22	45M7065	1	Spring Locking Pin	-
23	14M7273	1	Nut	M8
24	L38079	1	Rod	-
25	R72660	1	Pin Fastener	(SUB FOR R662R)
26	R72653	3	Snap Ring	(SUB FOR M2396T)
27	11M7079	1	Cotter Pin	0.098" X 0.472"
28	R26871	1	Snap Ring	-
29	R68009	1	Rod	-
30	11M7077	1	Cotter Pin	0.063" X 0.984"
31	24H1286	1	Washer	9/32" X 1/2" X 1/16"
32	14H850	3	NUT	1/4"
33	T48835	1	SWIVEL	-
34	L41921	1	Lever	(SUB FOR R68008)
35	14H649	1	Nut	1/4"
36	R68140	1	Rod	-
37	R72654	2	Snap Ring	-
38	R58507	1	Lever	-
39	24H1287	1	Washer	9/32" X 5/8" X 0.065"
40	12H302	1	Lock Washer	1/4"
41	R52646	2	Washer	-
42	AR92122	1	Pedal	-
43	R58511	1	Arm	-
44	R58512	1	Spring	-
45	03H1810	1	Bolt	1/4" X 1-1/2"
46	24M7096	1	Washer	10.500 X 18 X 1.600 MM
47	19M7322	1	Cap Screw	M8 X 35
48	14M7151	1	Nut	M8

SPEED CONTROL LINKAGE (SOUND-GARD BODY) [01D22]
