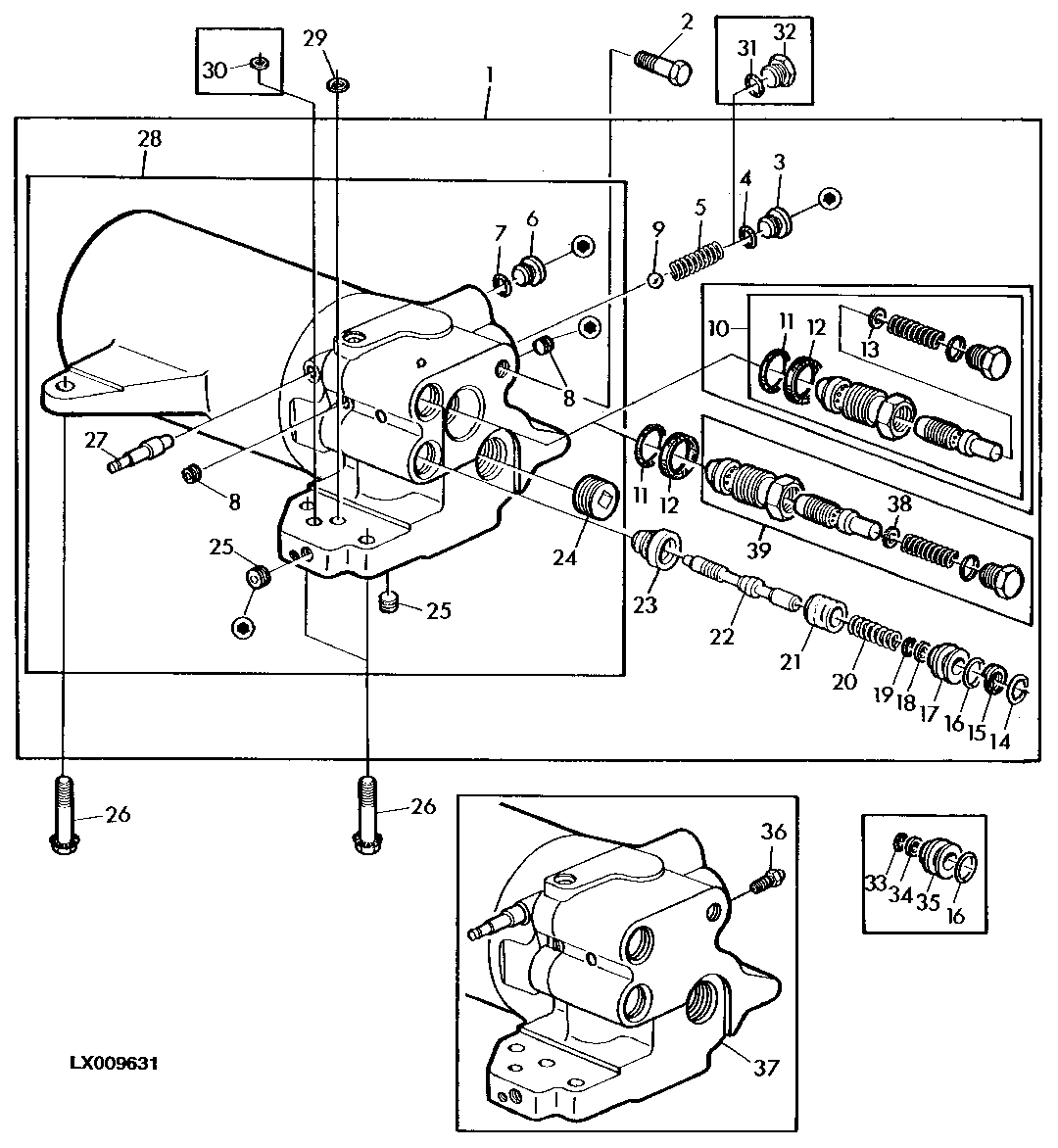

ROCKSHAFT CYLINDER AND VALVE HOUSING [03C11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL64832	1	Hydraulic Cylinder Kit	-
2	19H2633	1	Cap Screw	3/8" X 1-1/2"
3	L41384	1	Pipe Plug	M18 (FOR AL40883)
4	L41383	1	Ring	(FOR AL40883)
5	F3322R	1	SPRING	-
6	L41726	1	Pipe Plug	(FOR AL40883)
7	L41536	1	O-Ring	(FOR AL40883)
8	15H558	2	Pipe Plug	-
9	D2361R	2	Ball	1/2"
10	AR102477	1	Relief Valve	(ORD AL61753, T75972, T77072)
11	T77072	1	O-Ring	(SUB FOR T44948 APPL)
12	T75972	1	Back-Up Ring	(SUB FOR T47769 APPL)
13	W19897	1	Shim	-
13	W20088	1	Washer	-
13	W19898	1	Shim	-
14	M3265T	2	SNAP RING	-
15	L55202	2	Back-Up Ring	-
16	L55204	2	O-RING	(SUB FOR R65548 APPL)
17	L42314	2	PLUG	-
18	L56957	2	BACK-UP RING	-
19	L55203	2	O-RING	-
20	R49648	2	SPRING	-
21	T24540	2	SLEEVE	-
22	R54969	2	VALVE SPOOL	-
23	T28538	2	VALVE SEAT INSERT	-
24	15H562	1	Pipe Plug	-
25	15H559	2	Pipe Plug	-
26	R48593	4	CAP SCREW	-
27	L64852	1	Pin Fastener	(SUB FOR T22469)
28	AL37218	1	Housing	(MARKED L39314) (ORD AL64832)
28	AL40883	1	Housing	(MARKED L41190) (ORD AL64832)
29	L34382	1	WASHER	-
30	L34383	1	Sealing Ring	(FOR AL31578 OR AL37218)
31	R26375	1	O-Ring	(FOR AL31578 OR AL37218)
32	T22867	1	Drain Plug	3/4" (FOR AL31578 OR AL37218)
33	R10093	2	O-Ring	-
34	R31136	2	BACK-UP RING	-
35	L34381	2	PLUG	(ORD L42314, L55202, L55204, L56957, L55203)
36	AT21781	1	VALVE	-
37	AL31578	1	CASE	(MARKED L34385) (ORD AL64832)
38	24M7334	1	Shim	TK= 0.100MM (0.004")
39	AL61753	1	Pressure Relief Valve	(ORD W/ T75972, T77072)

ROCKSHAFT CYLINDER AND VALVE HOUSING [03C11]
