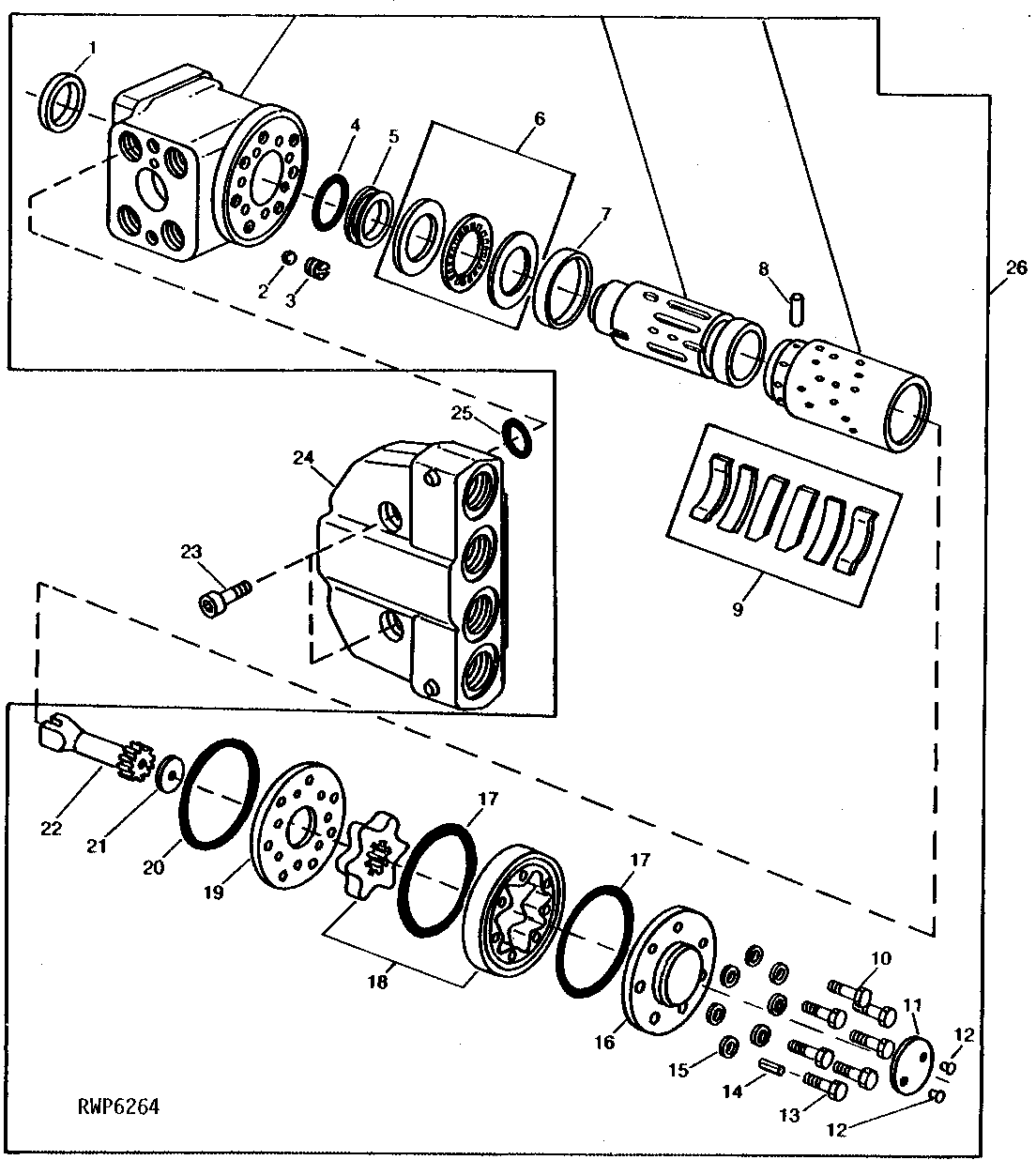

HYDROSTATIC STEERING PUMP (SINGLE CYLINDER) (TRACTOR SERIAL NO. -376553) (TRACTOR SERIAL NO. -404614) (MFWD) [02F22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	Z31348	1	Seal	-
2	R26552	1	Ball	(SUB FOR Z31349)
3	Z31350	1	Pipe Plug	-
4	AL112819	1	Seal Kit	(SUB FOR AZ20003 AND Z31452)
5	AL112819	1	Seal Kit	(SUB FOR AZ20003 OR Z31455)
6	AL36989	1	Thrust Bearing	-
7	Z31353	1	Ring	-
8	Z31354	1	Pin Fastener	-
9	AZ25154	1	Machine Tool	(SUB FOR Z31355 OR L32707)
10	19M7698	6	Cap Screw	M8 X 40
10	19M7925	6	Cap Screw	(A) M8 X 45, (NLA)
11	L32710	1	Medallion	(NLA)
12	Z31364	2	Screw	-
13	L32709	1	Cap Screw	M8 X 45
13	L36308	1	Cap Screw	(A) M8 X 45, (NLA)
14	Z31360	1	Spring Pin	-
15	Z31456	7	Washer	-
16	L39146	1	Piston	(SUB FOR Z31359) (SUB AL68083)
17	Z31454	2	O-Ring	-
18	AL69627	1	Gear	(SUB AL69627)
18	AL32778	1	Gear	(A) (SUB AL69629)
19	Z31358	1	DISTRIBUTOR PLATE	(SUB AL68083)
20	Z31453	1	O-Ring	-
21	L32708	1	SHIM	-
21	L36307	1	Shim	(A)
22	Z31356	1	DRIVE SHAFT	-
23	19M7661	2	SCREW	M10 X 40, (CAN USE 19M8615) (NLA)
24	AL31245	1	Valve Stack	(SUB AL32798, (4) P47908 AND (2) 19M7661)
25	P47908	4	O-Ring	-
26	AL55954	1	Valve	(SUB FOR AL35832)
26	AL55956	1	Valve	(A) (SUB FOR AL35834)

HYDROSTATIC STEERING PUMP (SINGLE CYLINDER) (TRACTOR SERIAL NO. -376553) (TRACTOR SERIAL NO. -404614) (MFWD) [02F22]
