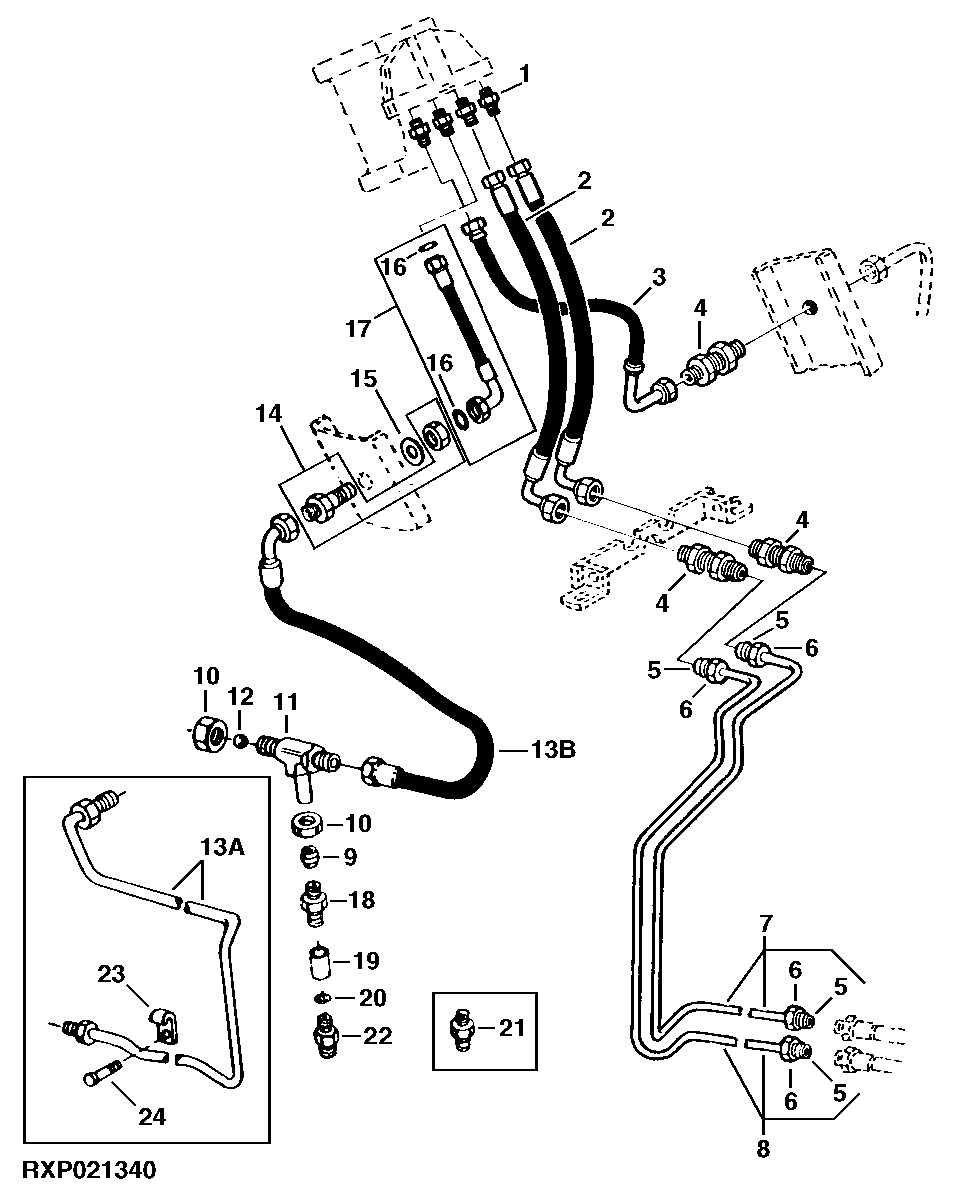

HYDROSTATIC STEERING OIL LINES (SINGLE CYLINDER) (TRACTOR SERIAL NO. -354726) [02G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L34371	4	Fitting	(SUB FOR L38680)
2	AL31645	2	HYDRAULIC HOSE	(ALSO ORDER Z27993 AND AL31402)
3	AL31648	1	HYDRAULIC HOSE	-
4	AL32895	3	Union Fitting	(SUB L63538 AND 14M7477)
5	Z32994	4	Tapered Sleeve	12 MM
6	15M6139	4	FITTING	12 MM
7	AL31411	1	Oil Line	-
8	AL31410	1	Oil Line	-
9	Z32994	1	Tapered Sleeve	-
10	15M6139	1	FITTING	-
11	L34868	1	Tee Fitting	(SUB AL37132)
12	L38741	1	Ball	-
14	AL32895	1	Union Fitting	-
15	24M7051	1	Washer	21 X 37 X 3 MM
16	Z27993	1	O-Ring	-
17	AL31647	1	Hydraulic Hose	(SUB AL36521, R36235, R46414 AND 99M7038)
18	L34653	1	Union Fitting	-
19	L55798	1	ADAPTER FITTING	-
20	R26448	1	O-Ring	-
21	R27212	1	Fitting	-
22	L37858	1	Fitting	-
23	T35126	1	Clamp	-
23	U43263	1	Clip	(NOT USED IN U.S. OR CANADA)
24	19H1800	1	Cap Screw	3/8" X 1-1/2"
13A	AL34241	1	Oil Line	(SUB AL36118, AL36337 AND R46414)
13B	AL35676	1	HOSE	(ORDER AL36521, R36235, R46414 AND 99M7038)

HYDROSTATIC STEERING OIL LINES (SINGLE CYLINDER) (TRACTOR SERIAL NO. -354726) [02G09]
