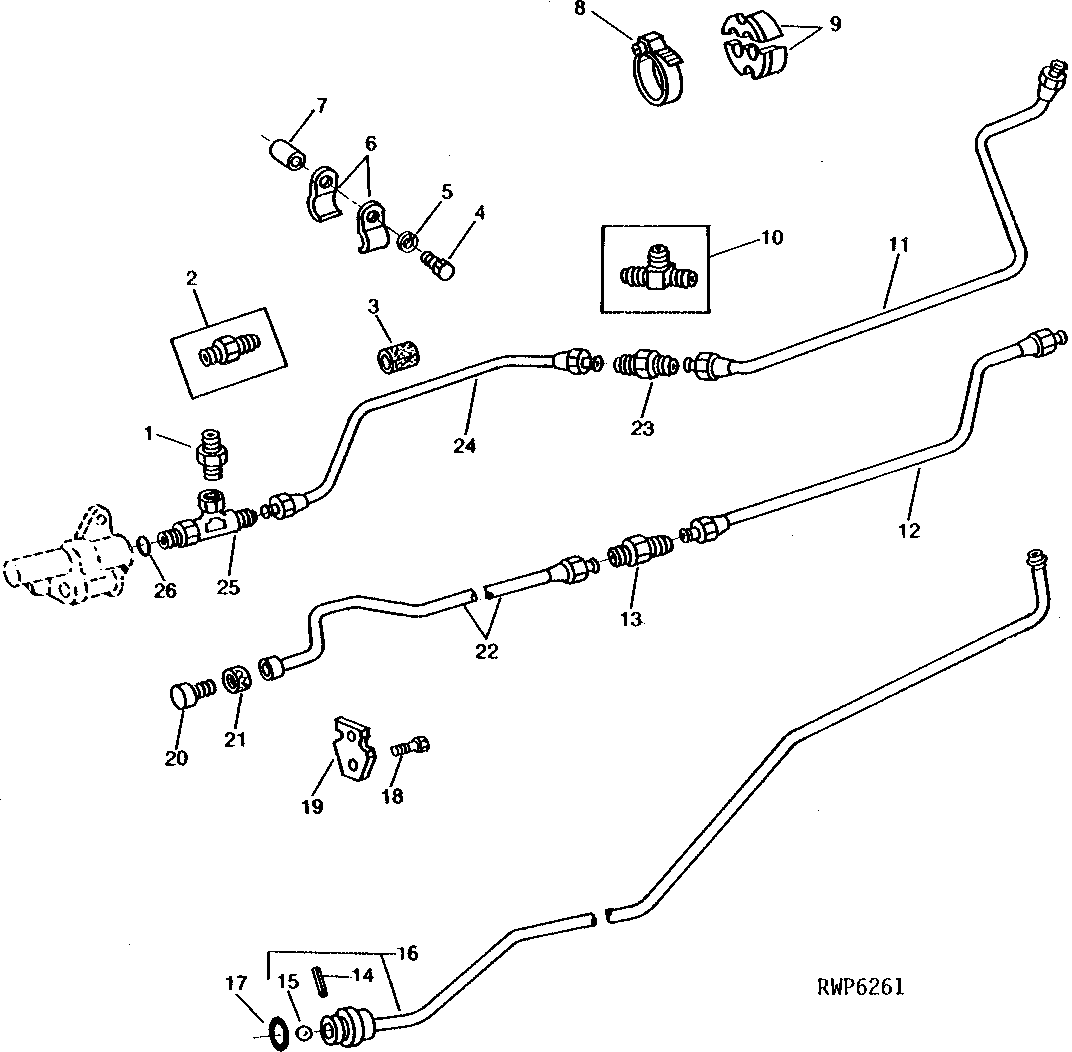

HYDRAULIC OIL LINES (TRACTOR SERIAL NO. -411513) [03B22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L38860	1	Fitting	M18 X 9/16", 37° FLARE
1	L37858	1	Fitting	(SINGLE STEERING CYLINDER)
1	L38815	1	Fitting	M18, (USE WITH AL36521)
2	R27270	1	Fitting	-
3	L102186	2	Hose	(SUB FOR L32581)
4	19H1732	2	Cap Screw	3/8" X 1-1/4"
4	L39334	1	Stud	-
4	14H1076	1	Nut	3/8"
5	12H304	2	Lock Washer	3/8"
6	R35726	2	CLAMP	-
7	28H1878	1	SPACER	3/8" X 7/16"
8	AR21999	2	Hose Clamp	-
9	L32580	4	RETAINER	-
10	T28991	1	TEE FITTING	-
11	AL28075	1	OIL LINE	-
12	AL25015	1	OIL LINE	-
13	R27266	1	Fitting	-
14	34M7062	1	Spring Pin	5 X 32 MM
15	L38752	1	Ball	-
16	AL33597	1	OIL LINE	(SUB FOR AL32856) (SUB AL39847, L40696 AND 24H1682)
17	L34995	1	O-Ring	-
18	19H2552	1	CAP SCREW	3/8" X 1-1/8"
19	AL28864	1	RETAINER	(SUB FOR L33359 AND 24H1682)
20	T23203	1	VALVE SEAT	-
21	R1662R	1	WASHER	-
22	AL28656	1	OIL LINE	-
23	R35717	1	Fitting	-
24	AL28076	1	OIL LINE	-
24	AL34206	1	OIL LINE	-
25	AL33569	1	FITTING	9/16", (SUB AL37360 AND L37858) (FOR SINGLE STEERING CYLINDER) (SUB AL37360 AND L38815 OR L38860) (FOR DUAL STEERING CYLINDER WITH M18 HOSE)
25	T28991	1	TEE FITTING	-
25	T28991	1	TEE FITTING	(MFWD)
25	AL37360	1	TEE FITTING	M18
26	R26906	1	O-Ring	-

HYDRAULIC OIL LINES (TRACTOR SERIAL NO. -411513) [03B22]
