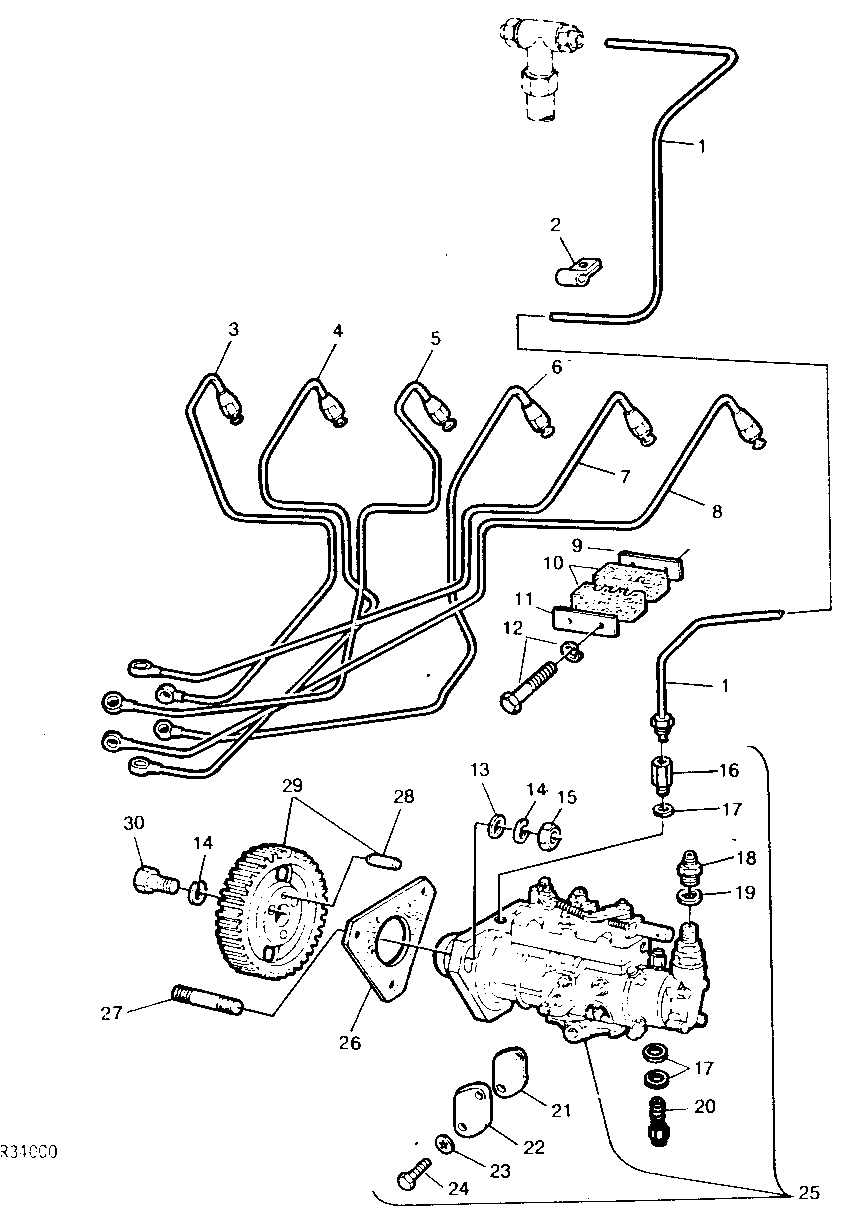

FUEL INJECTION SYSTEM (ROTO-DIESEL) (ENGINE SERIAL NO. -489178) [01D11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR89959	1	LINE	(SUB RE63017)
2	T29969	1	Clamp	-
3	AR67737	1	FUEL LINE	NO. 1, (SUB FOR RE20787 AND RE20788) (SUB RE38276 AND RE38277)
4	AR67738	1	FUEL LINE	NO. 2, (SUB FOR RE20788) (SUB RE38277)
5	AR67739	1	FUEL LINE	(SUB RE38278) NO. 3
6	AR67740	1	FUEL LINE	(SUB RE38279) NO. 4
7	AR67741	1	FUEL LINE	(SUB RE38280) NO. 5
8	AR67742	1	FUEL LINE	(SUB RE38281) NO. 6
9	R61145	1	Strap	(INCLUDED IN DD13912) (ALSO ORDER AR76704)
10	R59297	2	Half Clamp	(INCLUDED IN DD13912)
11	R59298	1	Strap	(INCLUDED IN DD13912)
12	AR76704	2	SCREW	(INCLUDED IN DD13912) (ALSO ORDER R61145)
13	24H1243	3	WASHER	11/32" X 5/8" X 1/16"
14	12H303	3	Lock Washer	5/16"
15	14H785	3	Nut	5/16"
16	AR76102	1	CHECK VALVE	(SUB RE11602)
17	T20055	13	WASHER	-
18	T24607	1	ADAPTER	(SUB R79015)
19	T24608	1	Washer	-
20	AT29464	6	VALVE	-
21	T24543	1	GASKET	-
22	T24542	1	COVER	-
23	12M7060	2	Washer	0.209"
24	T24544	2	SCREW	-
25	AR91775	1	FUEL INJECTION PUMP	-
25	SE501522	1	FUEL INJECTION PUMP	(REMAN FOR AR91775)
26	T24460	1	GASKET	(SUB R97354)
27	T23442	3	Stud	-
28	T28030	1	DOWEL PIN	-
29	AR85710	1	GEAR	-
30	19H2551	3	Cap Screw	5/16" X 3/4"
