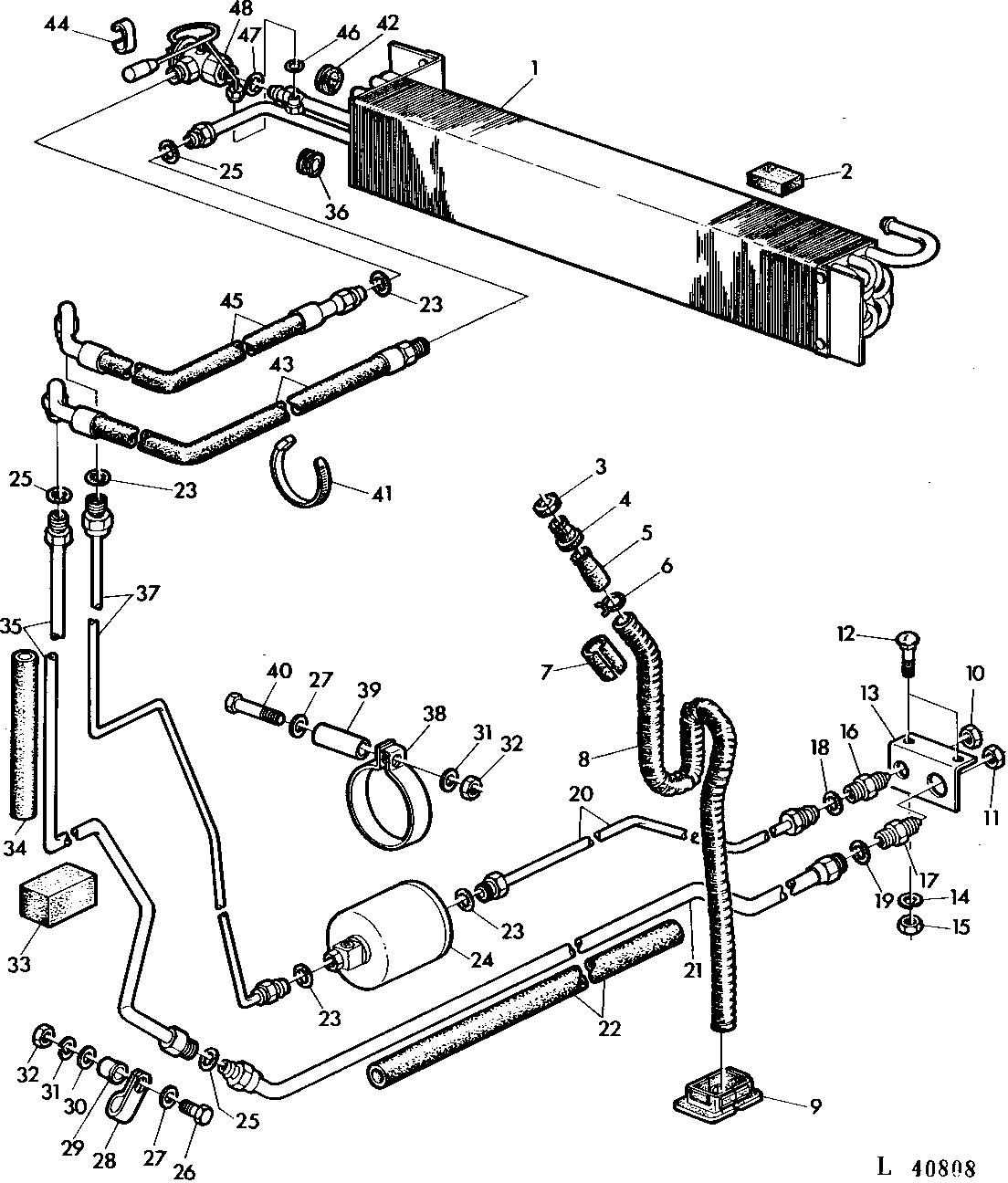

EVAPORATOR AND REAR LINES (SOUND-GARD BODY) [03G24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE13885	1	Core	-
2	R52133	1	Pad	-
3	F2741R	2	Packing	-
4	R60263	2	Bushing	-
5	R60264	2	Hose Fitting	-
6	TY22462	2	Clamp	(SUB FOR R69319)
7	-	1	Part 7	(MAKE FROM TY22328) (SUB FOR R45847)
8	H97644	2	CONDUIT	(SUB FOR R50452)
9	L39301	1	Plug	-
10	R53000	1	NUT	-
11	R52998	1	NUT	-
12	03H2117	2	BOLT	3/8" X 7/8"
13	R67724	1	Angle	-
14	12H304	2	Lock Washer	3/8"
15	14H1076	2	Nut	3/8"
16	AH21762	1	Hydr. Quick Coupler Plug	-
17	AR58147	1	Hydr. Quick Coupler Plug	-
18	P50883	1	Ring	-
19	B15646	1	O-Ring	-
20	AR88148	1	Oil Line	-
21	AL38190	1	Line	(SUB FOR AR88152)
22	R67717	1	INSULATOR	(SUB L40702)
23	R10093	4	O-Ring	-
24	AR74486	1	RECEIVER	(SUB RE49169 OR RE291794)
25	R33259	3	O-Ring	-
26	19M7168	1	Cap Screw	M10 X 30
27	24M7028	2	Washer	10.500 X 20 X 2 MM
28	R51892	1	Clamp	-
29	28H1519	1	Washer	0.493" X 0.675" X 3/8"
30	24H1884	1	Washer	13/32" X 13/16" X 0.120"
31	12M7066	2	Lock Washer	10 MM
32	14M7274	2	Nut	M10
33	R55327	2	Isolator	-
34	R67718	1	Insulator	-
35	AR96979	1	OIL LINE	(SUB AL39313)
36	R71351	1	Grommet	-
37	AR96978	1	Oil Line	-
38	R53422	1	Clamp	(SUB 99M7102)
39	28H1534	1	Bushing	3/8"X2.250"
40	19M7668	1	Cap Screw	M10 X 100
41	R44302	1	Tie Band	-
42	R74362	1	Grommet	-
43	AR99838	1	HOSE	(SUB AL70478)
44	R66645	1	CLIP	-
45	AR93858	1	Hydraulic Hose	(SUB AL70894)
46	R34812	1	O-Ring	-
47	P51212	1	O-Ring	-
48	RE206757	1	Control Valve	(SUB FOR RE13886)
..	R57003	1	Tape	9144 MM (360") INSULATING, (SUB TY15709)

EVAPORATOR AND REAR LINES (SOUND-GARD BODY) [03G24]

Нет текстового описания
