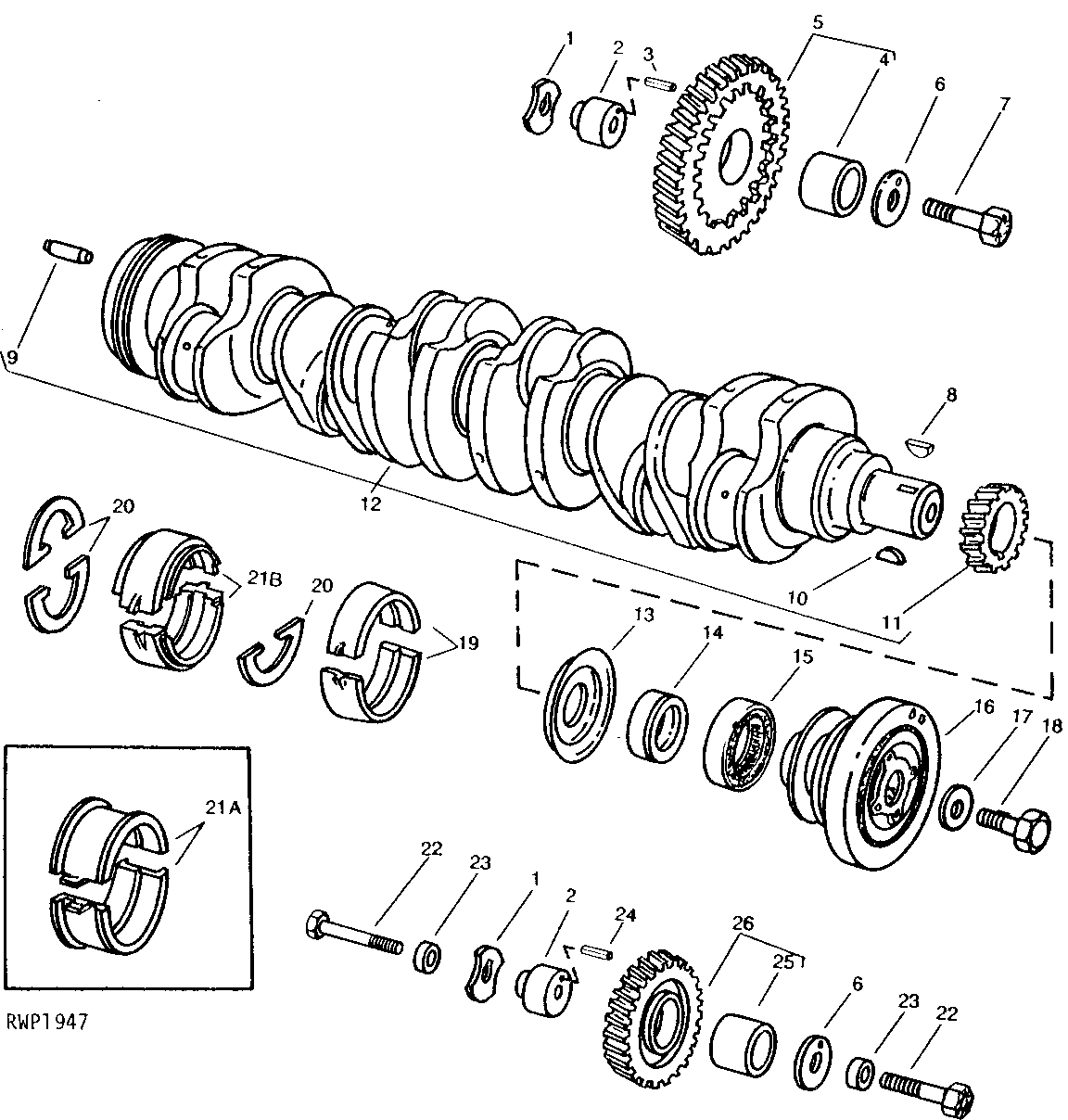

CRANKSHAFT, TIMING GEARS AND MAIN BEARINGS [01B16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T26324	2	THRUST WASHER	-
2	T26323	1	SHAFT	LOWER, (SUB FOR R89825) (SUB R109863, R100105, 19H3011 AND 14H865)
2	T26323	1	SHAFT	UPPER, (SUB R109863)
3	34H283	1	Spring Pin	3/16" X 1-1/8"
4	T20034	1	Bushing	-
5	AR91660	1	Gear	(MARKED R70182)
6	T26326	2	THRUST WASHER	-
7	T26327	1	Screw	-
8	26H27	1	Shaft Key	5/16" X 1-1/8"
9	T26565	1	Dowel Pin	-
10	26H72	1	Shaft Key	1/8" X 5/8"
11	T20094	1	Helical Gear	-
12	AT22562	1	CRANKSHAFT	(MARKED T23266) (SUB AR48330)
13	T20046	1	Oil Slinger	-
14	T30413	1	WEAR RING	(SUB R81989 AND H35244)
15	AR67942	1	Seal	-
16	AR92420	1	Pulley With Dampener	-
17	T20217	1	Washer	-
18	19H1721	1	CAP SCREW	1/2" X 1-1/2"
19	AT21114	1	BEARING	0.762 MM (.030")
19	AT21108	1	BEARING	0.051 MM (.002")
19	AT21112	1	BEARING	0.508 MM (.020")
19	AT21140	6	Bearing	(STD)
19	AT21110	1	BEARING	0.254 MM (.010")
20	AR95931	1	THRUST WASHER	(MARKED R64265) (PKG. OF 3)
20	AR95932	1	Thrust Washer	0.18MM (.007") (MARKED R64851) (PKG. OF 3)
22	T26325	2	SCREW	-
23	R42364	2	WASHER	(SUB R76126)
24	34H286	1	Spring Pin	3/16" X 1-1/2"
25	T26321	1	Bushing	-
26	AT24252	1	GEAR	(MARKED T26322)
21A	AT21136	1	BEARING	0.762 MM (.030")
21A	AT21134	1	BEARING	0.508 MM (.020")
21A	AT21132	1	BEARING	0.254 MM (.010")
21A	AT21130	1	BEARING	0.051 MM (.002") (NLA)
21A	AT21139	1	BEARING	(STD)
21B	AR81786	1	BEARING	(STD)
21B	AR81787	1	BEARING	0.051 MM (.002")
21B	AR81788	1	BEARING	0.254 MM (.010")
21B	AR81789	1	BEARING	0.508 MM (.020")
21B	AR81790	1	BEARING	0.762 MM (.030") (SUB RE27366)
