CLUTCH (MECHANICAL FRONT WHEEL DRIVE) [02E21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

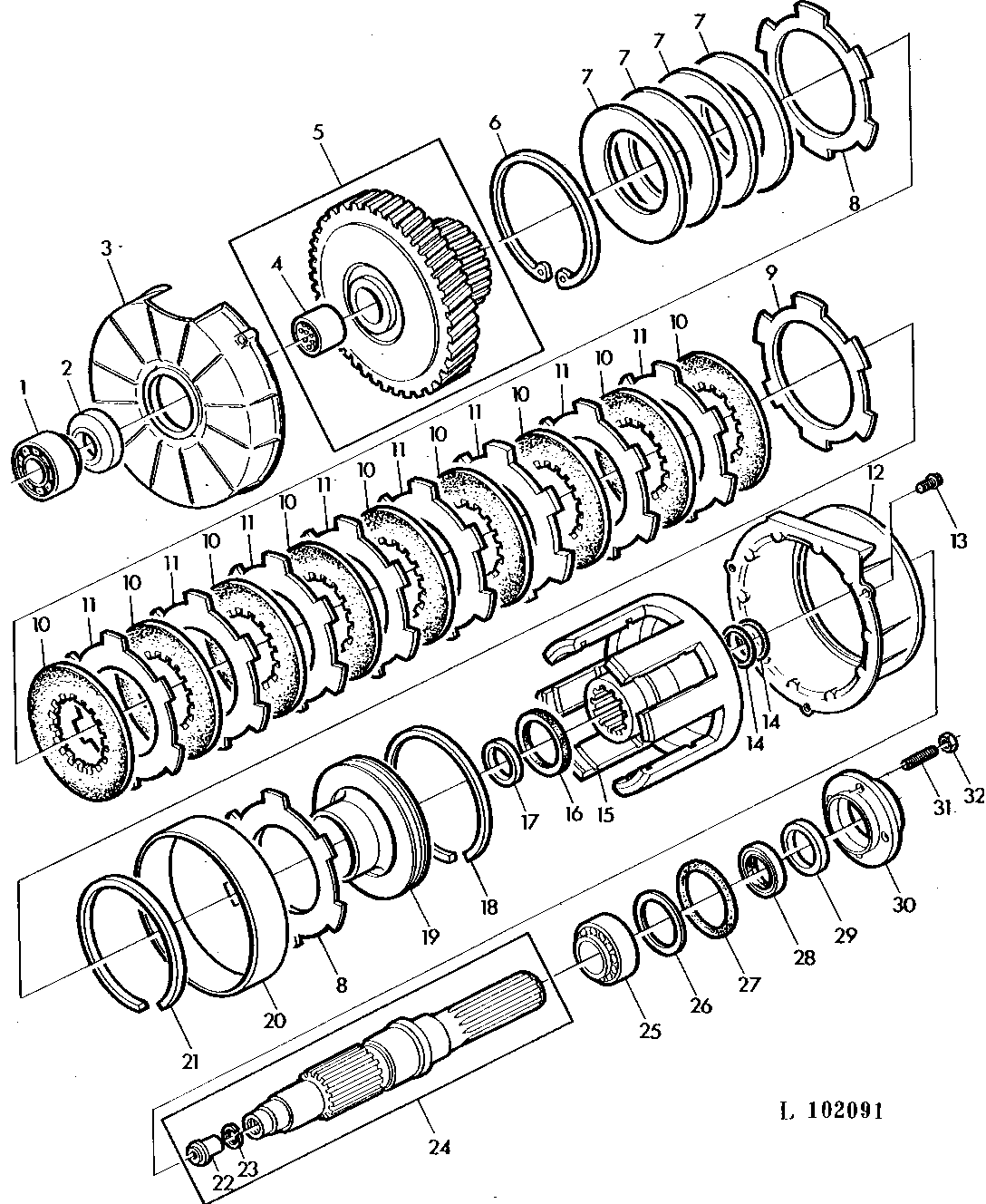

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD10234	1	Tapered Roller Bearing	(USE WITH AL37280 AND AL38671)
1	JD37218	1	Tapered Roller Bearing	(USE WITH AL28925 AND AL28740)
2	L39495	1	Washer	(USE WITH AL37280 AND AL38671)
2	L33253	1	Washer	(USE WITH AL28925 AND AL28740)
3	L39837	1	Housing	-
4	L33263	1	Bushing	-
5	AL37596	1	GEAR	(SUB FOR AL28918)
6	40M7122	1	Snap Ring	145X4 MM
7	L34068	4	Disk Spring	-
8	L38258	2	Clutch Plate	(SUB FOR L34066 OR L37024)
9	L37025	1	PLATE	-
10	L34064	9	Disk With Inner Spline	-
11	L34062	8	Disk With Outer Spline	-
12	L39838	1	Housing	(SUB L41295, R41308 AND 44M1082)
13	37M7060	3	Screw	M4X10
14	H35244	2	Ring	-
15	L39840	1	DRUM	(SUB FOR L34058)
16	R39304	1	Washer	-
17	L33251	1	Washer	-
18	L34060	1	Piston Ring	-
19	L34059	1	PISTON	-
20	L38692	1	Spacer	-
21	L34067	1	Snap Ring	-
22	R39279	1	Retainer	-
23	R34140	1	Ring	-
24	AL28925	1	Drive Shaft	(USE WITH AL28740)
24	AL37280	1	Drive Shaft	(USE WITH AL38671) (SUB AL67651, L62773 AND R34140)
25	JD37047	1	Tapered Roller Bearing	-
26	L33243	1	Shim	0.20 MM (.008")
26	L33244	1	Shim	0.50 MM (.020")
26	L33242	1	Shim	0.15 MM (.006")
26	L40583	1	SHIM	0.10 MM (.004")
26	L40582	1	SHIM	0.05 MM (.002")
27	L33257	1	O-Ring	-
28	48M7039	1	Seal	35 X 52 X 7 MM, (USE WITH AL28740)
28	48M7038	1	Seal	38 X 52 X 7 MM, (SUB FOR 48M7052) (USE WITH AL38671)
29	L39491	1	Washer	(USE WITH AL38671)
30	L33256	3	Bearing Housing W/O Bearing	(USE WITH AL28740)
30	L39490	1	Bearing Housing W/O Bearing	(USE WITH AL38671)
31	22M7105	3	Set Screw	M8 X 45
32	14M7273	3	Nut	M8
