Bucket Cylinder Compoonents ( - 706256)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0971418G	1	Hydraulic Cylinder Barrel	SUB FOR 0971418
1	PG201256	1	Hyd Cylinder Barrel Reman	NLA, ORDER 0971418G
2	PG201257	1	Hyd Cylinder Rod Reman	NLA, ORDER 0971419G
2	0971419G	1	Hydraulic Cylinder Rod	SUB FOR 0971419
5	0971405	1	Cover	-
6	0971402	1	Bushing	SUB FOR 0971406
7	0971407	1	Snap Ring	-
8	0971408	1	Seal	-
9	0971409	1	Packing	-
10	0971410	1	Back-Up Ring	Before January 2011, NLA, ORDER FYA00008824
10	FYA00008824	1	Ring	January 2011 and After
11	0971411	1	Seal	-
12	0971412	1	Snap Ring	-
13	A811130	1	O-Ring	-
14	0971212	1	Back-Up Ring	-
15	A811135	1	O-Ring	-
16	0971413	1	Piston	Before January 2011, NLA, ORDER FYA00009047, ALSO ORDER FYA00008822
16	FYA00009047	1	Piston	January 2011 and After
17	FYA00010655	1	Seal	Before January 2011, SUB FOR 0971414
17	FYA00008822	1	Seal	January 2011 and After
18	0971217	2	Wear Ring	-
19	0971218	2	Ring	NLA, ORDER FYA00001449, USE WITH 0971413
19	FYA00001449	2	Seal	USE WITH FYA00009047
20	0971233	1	O-Ring	-
21	0971220	2	Back-Up Ring	-
22	0971104	1	Nut	SUB FOR 0971221; ALSO ORDER (2) 0971323
23	0971323	2	Retainer	USE WITH 0971104
24	0971222	14	Screw	-
25	-	1	Part 35	SUB 0971420; 0971415 NLA
26	-	1	Part 36	SUB 0971420; 0971224 NLA
27	12H301	2	Lock Washer	1/2", SUB FOR A590912
28	19M7493	2	Cap Screw	M12 X 40, SUB FOR J901240
29	0971416G	1	Oil Line	SUB FOR 0971416
30	AT264348	1	O-Ring	SUB FOR A590910 OR 984614
31	12H301	4	Lock Washer	1/2", SUB FOR A590912
32	0971339	4	Bolt	-
33	0971340	1	Clamp	-
34	12H294	1	Lock Washer	5/8", SUB FOR A590916
35	19M7719	1	Cap Screw	M16 X 70, SUB FOR J901670
36	-	1	Part 47	NLA, ORDER 9246545G
36	9246545G	1	Hydraulic Cylinder	NLA, Order 9309808G, SUB FOR 9246545
42	0971420	1	Band Kit	-
43	TH102446	1	Seal	SUB FOR 4067902
44	TH102445	1	Seal	SUB FOR 4067901
90	FYA00008826	1	Seal Kit	January 2011 and After
90	FYA00010735	1	Seal Kit	Before January 2011, SUB FOR FYA00001452
1A	-	1	Part 2	-
1B	4332285	2	Bushing	-
1C	0971343	1	Lubrication Fitting	-
2A	-	1	Part 7	-
2B	4397791	2	Bushing	-
2C	0971417	1	Lubrication Fitting	-

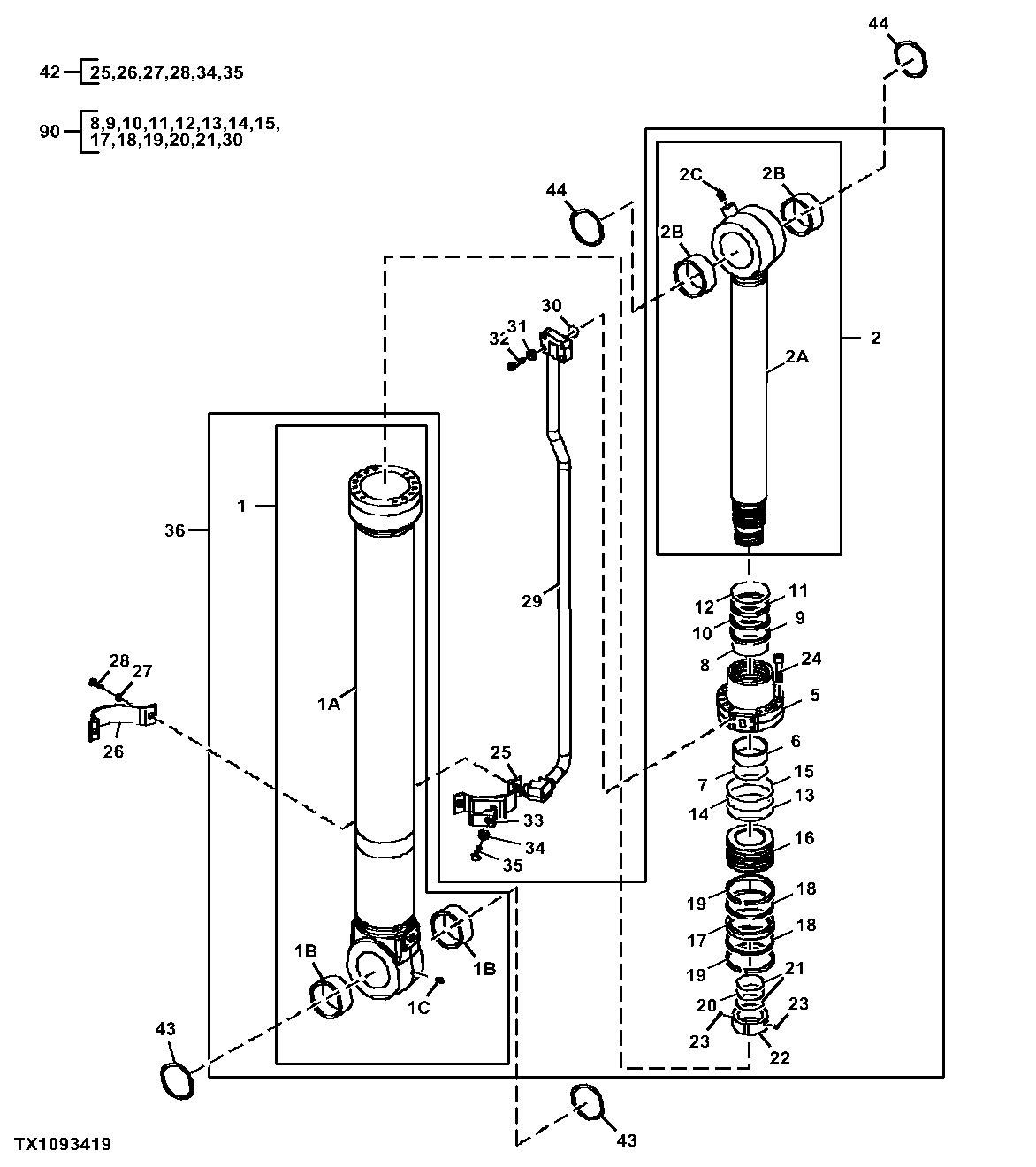

Bucket Cylinder Compoonents ( - 706256)
