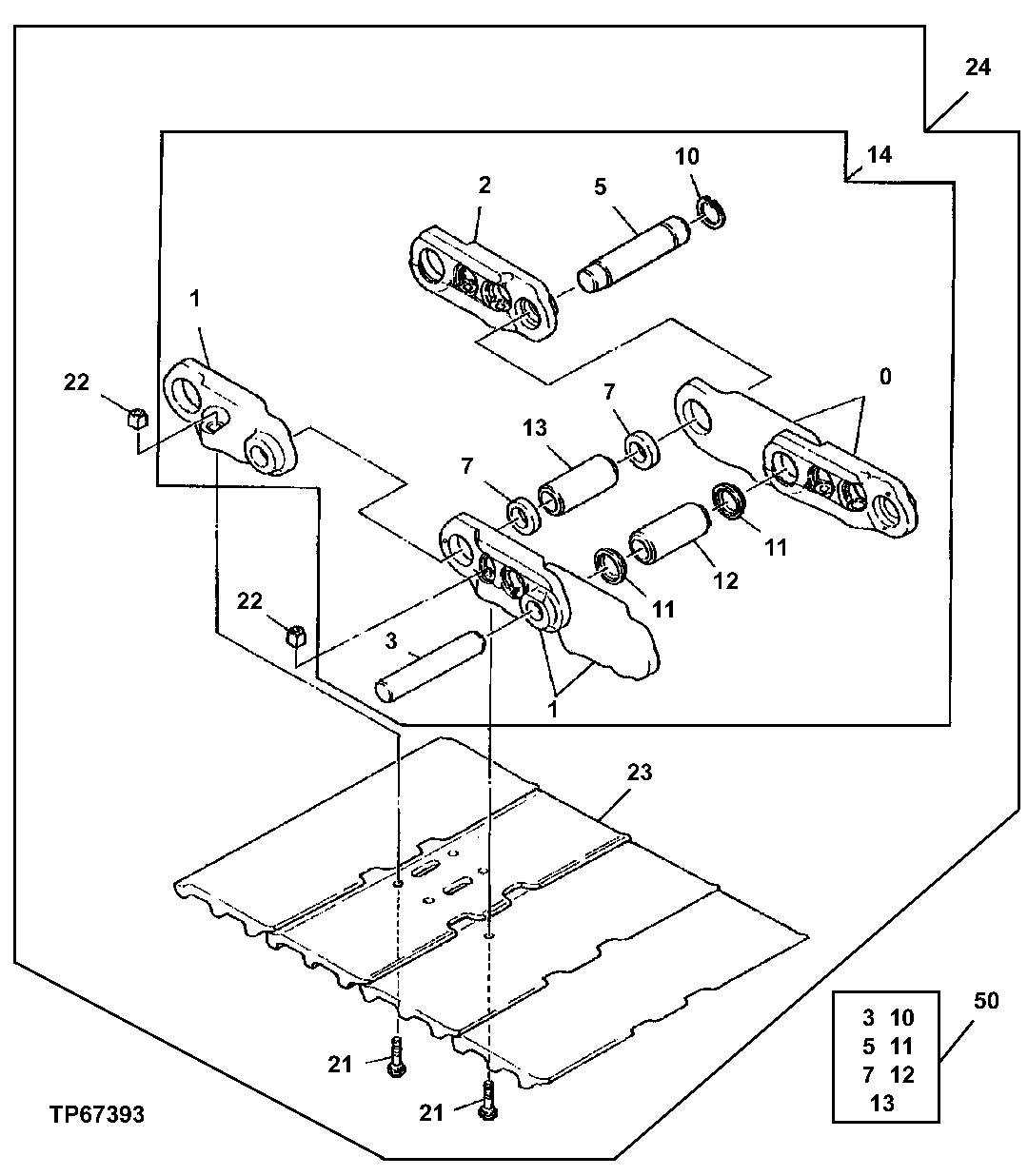

TRACK LINK AND TRACK SHOE

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	1015396	42	Strutted LINK-LH	SUB FOR AT159891
0	1010521	42	Track Link	SUB FOR AT130330
1	1010522	43	Track Link	SUB FOR AT130331
1	1015397	43	Strutted LINK-RH	SUB FOR AT159892
2	4193439	1	Master Track LINK-RH	SUB FOR AT130388, MASTER
2	4262588	1	Master Track LINK-RH	SUB FOR AT159893, MASTER
3	4195135	42	Pin Fastener	SUB FOR AT130395
3	4156583	42	PIN	(K) SUB FOR TH106074, QUANTITY OF 36 PROVIDED IN KIT
5	4193435	1	Pin Fastener	SUB FOR AT130385, MASTER
5	4263097	1	MASTER TRACK PIN	(K) SUB FOR AT134376, MASTER
7	4193436	2	Bushing	SUB FOR AT130386, FOR MASTER LINK
7	4262585	2	BUSHING	(K) SUB FOR AT134377
10	4188841	1	SNAP RING	(K) SUB FOR TH110493, FOR MASTER PIN
11	4193440	84	Seal	SUB FOR AT130389
11	4283930	84	SEAL	(K) SUB FOR AT134378 AND AT167074, QUANTITY OF 72 PROVIDED IN KIT
12	4159166	42	Bushing	SUB FOR AT130378
12	4262582	42	BUSHING	(K) SUB FOR AT134379, QUANTITY OF 36 PROVIDED IN KIT
13	4262583	1	BUSHING	(K) SUB FOR AT134380, MASTER
13	4193438	1	Bushing	SUB FOR AT130387, MASTER
14	9069599	1	Track Chain W/O Shoes	NLA, SUB FOR AT130493
14	9096717	1	Track Chain W/O Shoes	SUB FOR AT159890
21	4262586	172	Bolt	With Blade, WITH BLADE, SUB FOR AT134381, AND 4159033 ALONG WITH T211435
21	4262586	172	Bolt	Without Blade, SUB FOR AT134381 AND 4159033 ALONG WITH T211435
21	4262586	172	Bolt	With Blade, SUB FOR AT134381
21	4262586	172	Bolt	Without Blade, SUB FOR AT134381
22	T211435	172	Nut	With Blade, SUB FOR AT134382 OR 4262587
22	T211435	172	Nut	Without Blade, SUB FOR AT134382 OR 4262587
22	4114673	172	NUT	Without Blade, SUB FOR TH106002, USE WITH AT134381 BOLT
22	4114673	172	NUT	With Blade, USE WITH AT134381 BOLT
23	2024398	43	Open Center 3 Bar Shoe	500MM GROUSER, SUB FOR AT130338
23	2019345	43	Open Center 3 Bar Shoe	SUB FOR AT130613, 700 MM, 28" SHOES
23	2030534	43	Open Center 3 Bar Shoe	SUB FOR AT159894, 500MM GROUSER
23	2030536	43	Open Center 3 Bar Shoe	SUB FOR AT159896, 700MM, 28 INCH SHOES
24	-	2	Part 34	500 MM, 20" SHOES, AT130492 NO LONGER AVAILABLE - ORDER COMPONENTS
24	-	2	Part 35	700 MM, 28" SHOES, AT130758 NO LONGER AVAILABLE
24	-	2	Part 36	500MM, 20 INCH SHOES, OR 700MM, 28 INCH SHOES NOT AVAILABLE FOR SERVICE - ORDER COMPONENTS
50	AT170089	1	Bushing Kit	-
