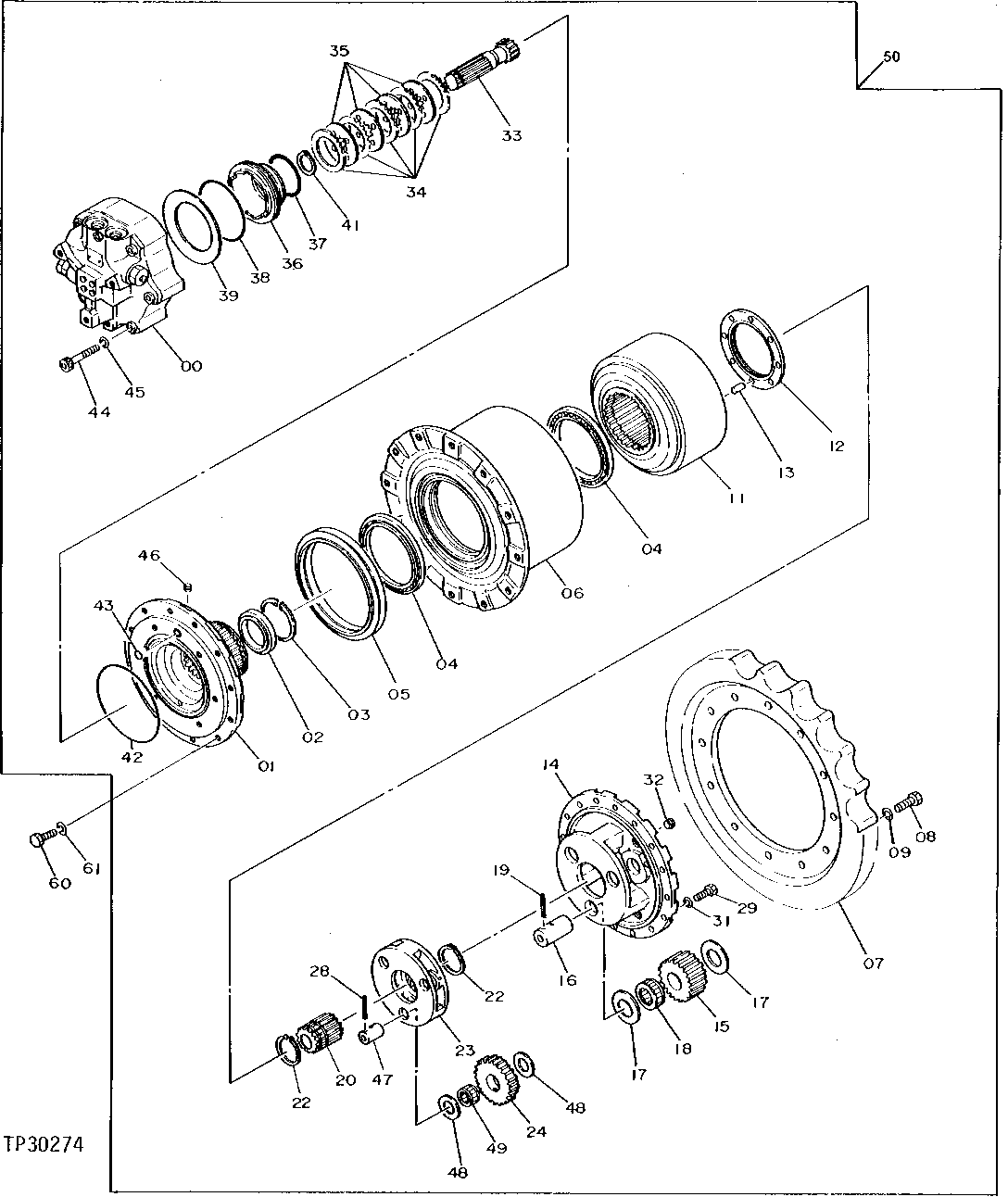

PROPEL MOTOR AND PLANETARY DRIVE

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 2	REMANUFACTURING ( AT217307 NLA)
0	-	1	Part 1	( AT167087 NO LONGER AVAILABLE,
1	1012229	1	Housing	(SUB FOR AT128348)
2	4192640	1	Spacer	(SUB FOR AT130383)
3	40M7117	1	Snap Ring	(SUB FOR AT134304)
4	AT130382	2	Tapered Roller Bearing	-
5	4082631	1	Seal	(SUB FOR AT130368)
6	1011510	1	Drum	(SUB FOR AT130333)
7	1012495	1	Chain Sprocket	(SUB FOR AT130329 ) (SUB FOR AT200345)
8	19M7488	12	Cap Screw	M16 X 40
8	19M8035	12	Cap Screw	M16 X 35
9	12H294	12	Lock Washer	5/8"
11	2023139	1	Gear	(SUB FOR AT130334)
12	3036163	1	Nut	(SUB FOR AT130343)
13	4148012	1	Dowel Pin	10 X 19.500 mm (0.394" X 0.768"), (SUB FOR TH110463)
14	1010452	1	Planet Pinion Carrier	(SUB FOR AT130328)
15	3036162	3	Planet Pinion	(SUB FOR AT130342)
16	4192635	3	Pin Fastener	(SUB FOR AT130380)
17	4192637	6	Plate	(SUB FOR AT130381)
18	4354271	6	Needle Bearing	(SUB FOR AT130375 ) (SUB FOR AT214453)
19	34M7014	3	Spring Pin	5 X 60 mm, (SUB FOR TH102300)
20	3015555	1	Sun Gear	(SUB FOR TH105880)
22	40M7066	2	Snap Ring	(SUB FOR TH100498)
23	2023141	1	Planet Pinion Carrier	(SUB FOR AT130335)
24	3036161	3	Planet Pinion	(SUB FOR AT130341)
28	4173093	3	Spring Pin	(SUB FOR TH108841)
29	19M8169	16	Screw	M12 X 30, (SUB FOR TH105691)
29	19M8011	16	Cap Screw	M12 X 30
31	12H301	16	Lock Washer	1/2"
31	12M7058	16	Lock Washer	12 mm, (SUB FOR 12M7067)
32	94-2013	3	Fitting Plug	(SUB FOR AT128487 ) (SUB FOR TH100648)
33	2024995	1	Shaft	(SUB FOR AT130339)
34	3036164	6	Plate	(SUB FOR AT130344)
34	3064191	6	Plate	(SUB FOR AT164168)
35	3036165	5	Plate	(SUB FOR AT130345)
35	3064192	5	Plate	(SUB FOR AT164170)
36	3036166	1	Piston	(SUB FOR AT130346)
37	4150683	1	Ring	89.600 X 5.700 mm (3.528" X 0.224"), (SUB FOR AT130376)
38	4150684	1	Ring	118.600 X 5.700 mm (4.669" X 0.224"), (SUB FOR AT130377)
39	3017067	1	Washer	104 X 152 X 2.500 mm (4-3/32" X 5-63/64" X 0.098"), (SUB FOR TH105888)
41	40M7062	1	Snap Ring	(SUB FOR TH106273)
42	4154877	1	O-Ring	(SUB FOR TH110468)
43	M800650	1	Packing	-
44	M341495	6	Bolt	(SUB FOR 4192042 ) (SUB FOR TH110499)
45	12H317	6	Lock Washer	9/16"
46	94-2010	1	Fitting Plug	(SUB FOR TH100689)
47	4194833	3	Pin Fastener	(SUB FOR AT130394)
48	4194831	6	Plate	(SUB FOR AT130392)
49	4194832	3	Needle Bearing	(SUB FOR AT130393)
50	-	2	Part 50	( AT130498 NO LONGER AVAILABLE)
60	19M8295	24	Cap Screw	M16 X 55, (SUB FOR AT130325 ) (SUB FOR 19M7480)
61	12H294	24	Lock Washer	5/8"
