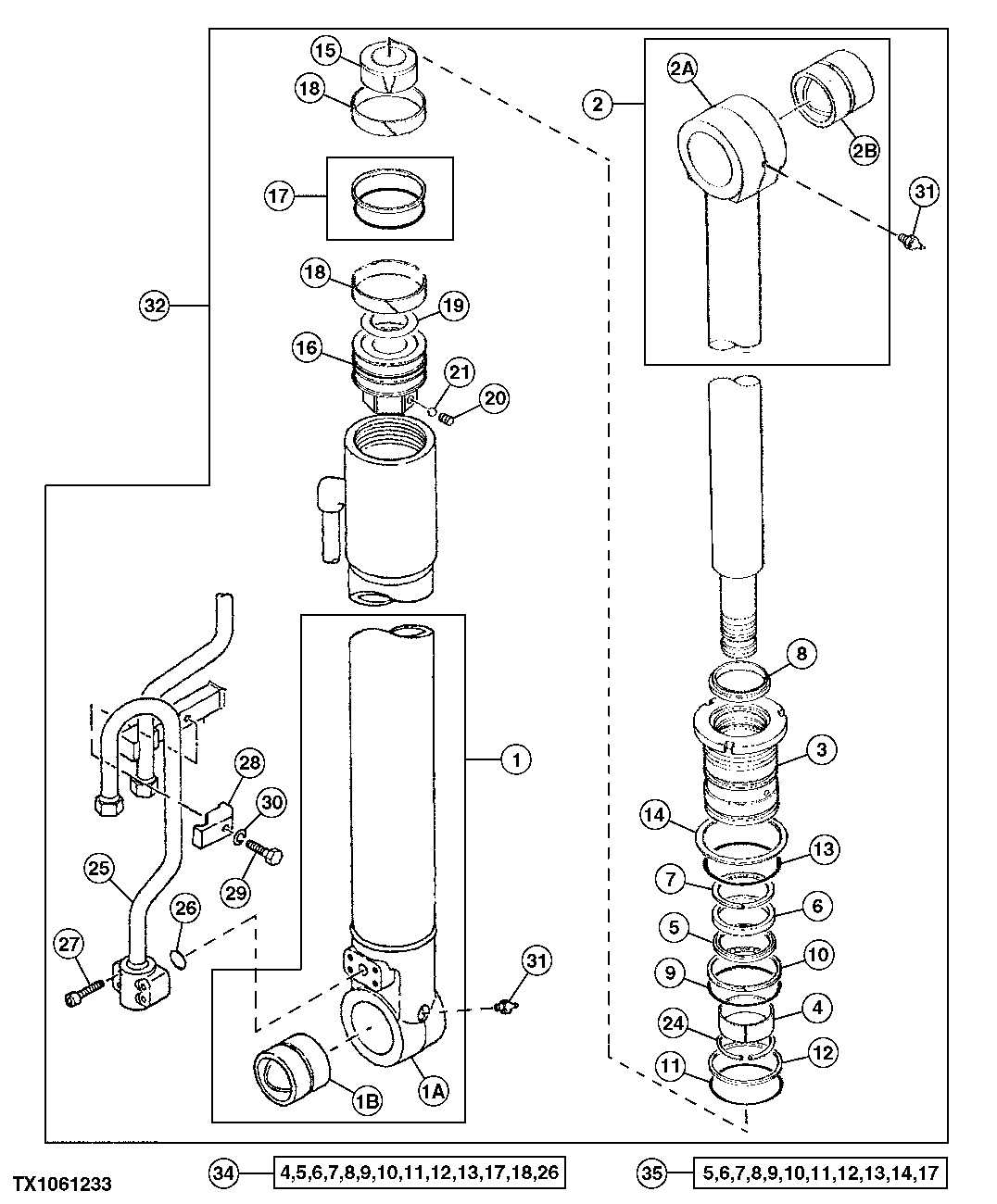

BOOM CYLINDER (LEFT)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4228538	1	Cylinder	(SUB FOR AT130551 ) (SUB FOR AT130786)
2	4228539	1	Piston	(SUB FOR AT130542 ) (SUB FOR AT130780)
3	0333003	1	Hydr. Cylinder Rod Guide	(SUB FOR AT130543)
4	AT264403	1	Bushing	(SUB FOR TH110290, 0330904)
5	AT264376	1	Ring	(SUB FOR TH105766, 4S00167)
6	AT264374	1	Seal	(SUB FOR TH105764)
7	AT264375	1	Back-Up Ring	(SUB FOR TH105765)
8	H158164	1	Scraper Ring	(SUB FOR TH105763)
9	AT264234	1	O-Ring	(SUB FOR AT130595)
10	AT264236	1	Back-Up Ring	(SUB FOR AT130599, 4133852)
11	T204374	1	O-Ring	(SUB FOR TH105932 AND AT264385)
12	AT264228	2	Washer	(SUB FOR AT130544, 0333004)
13	AT264318	1	O-Ring	(SUB FOR AT130531, T110446)
14	4043327	1	Lock Washer	(SUB FOR AT130594)
15	0333005	1	Sleeve	(SUB FOR AT130545)
16	0333006	1	Piston	(SUB FOR AT130546)
17	AT264392	1	Ring	(SUB FOR TH109376)
18	AT264229	2	Ring	(SUB FOR 0333007, 0495713, AT130547)
19	0333008	1	Shim	(SUB FOR AT130548)
20	22M7139	1	Set Screw	M10 X 10, (SUB FOR TH109380)
21	400R	1	Ball	(SUB FOR TH109381)
24	4510494	1	Snap Ring	(SUB FOR TH106169)
25	0333102	1	Oil Line	(SUB FOR AT130552)
26	-	1	Part 28	(SUB FOR TH103574 ) (SUB 0976602)( AT264354 NSEP)
27	19M8213	4	Screw	M10 X 50, (SUB FOR T108034)
28	0310616	1	Clamp	(SUB FOR TH109386)
29	19M7361	1	Cap Screw	M12 X 50, (SUB FOR T108037)
30	12M7058	1	Lock Washer	12 mm, (SUB FOR 12M7067)
31	TH100074	2	Lubrication Fitting	-
32	-	1	Part 35	REMAN, ( AT264203 NLA)
32	4194436	1	Hydraulic Cylinder	(SUB FOR AT130513)
33	-	2	Part 36	(ROD END) (NOT ILLUSTRATED OR INCLUDED IN CYLINDER ASSEMBLY - FOR DETAIL SEE ARM AND BOOM HYDRAULIC LINES)
34	-	1	Part 37	(SUB FOR AT130600 ) (SUB 4369764)( AT264424 NLA)
35	4369764	1	Seal Kit	(SUB FOR 4216514)
1A	-	1	Part 2	(SUB AT130786)
1B	0333009	1	Bushing	(SUB FOR AT130549)
2A	-	1	Part 5	(SUB AT130780)
2B	4085432	1	Bushing	(SUB FOR AT130596)
