Light Kit, W/ Mid-body, W/ Side Marker, FT4 Engine (059001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R337850	1	Bracket	-
2	AL171053	1	Side Light	-
3	R337846	1	Cover	-
4	14M7303	4	Flange Nut	M6
5	19M7867	4	Screw	M8 X 25
6	19M7866	11	Screw	M8 X 20
7	R537382	1	Bracket	-
8	R537383	1	Bracket	-
9	AL171029	1	Side Light	-
10	19M10365	2	Screw	M8 X 20
11	24M7271	2	Washer	10.500 X 20 X 2 mm
12	R567738	2	Bracket	-
13	R567739	2	Cover	-
14	RE591728	2	Side Light	-
15	RE269640	2	Floodlamp	-
16	R269642	2	Cover	-
17	RE592854	1	Wiring Harness	-
18	57M7290	1	Elec. Connector Accessory	-
18	57M7257	1	Elec. Connector Housing	Roof Harness Interconnect XX177-2
19	57M7255	1	Elec. Connector Housing	Beltline Assembly Right E177
19	57M7290	1	Elec. Connector Accessory	-
20	57M6498	2	Lamp	-
21	RE592543	1	Wiring Harness	-
22	RE593281	2	Wiring Harness	-
23	57M8958	2	Elec. Connector Housing	-
24	57M8839	2	Elec. Connector Housing	-
25	R44302	5	Tie Band	-
26	57M9229	2	Clip	-
27	RE179326	2	Bulb	12V
28	57M7014	2	Bulb	-
29	57M14930	1	Elec. Connector Housing	Left Midbody Side Right E329
30	57M7257	1	Elec. Connector Housing	Roof Harness Interconnect XX176-2
30	57M7290	1	Elec. Connector Accessory	-
31	57M7255	1	Elec. Connector Housing	Beltline Assembly Left E176
31	57M7290	1	Elec. Connector Accessory	-
32	57M14930	1	Elec. Connector Housing	Left Midbody Side Right E328

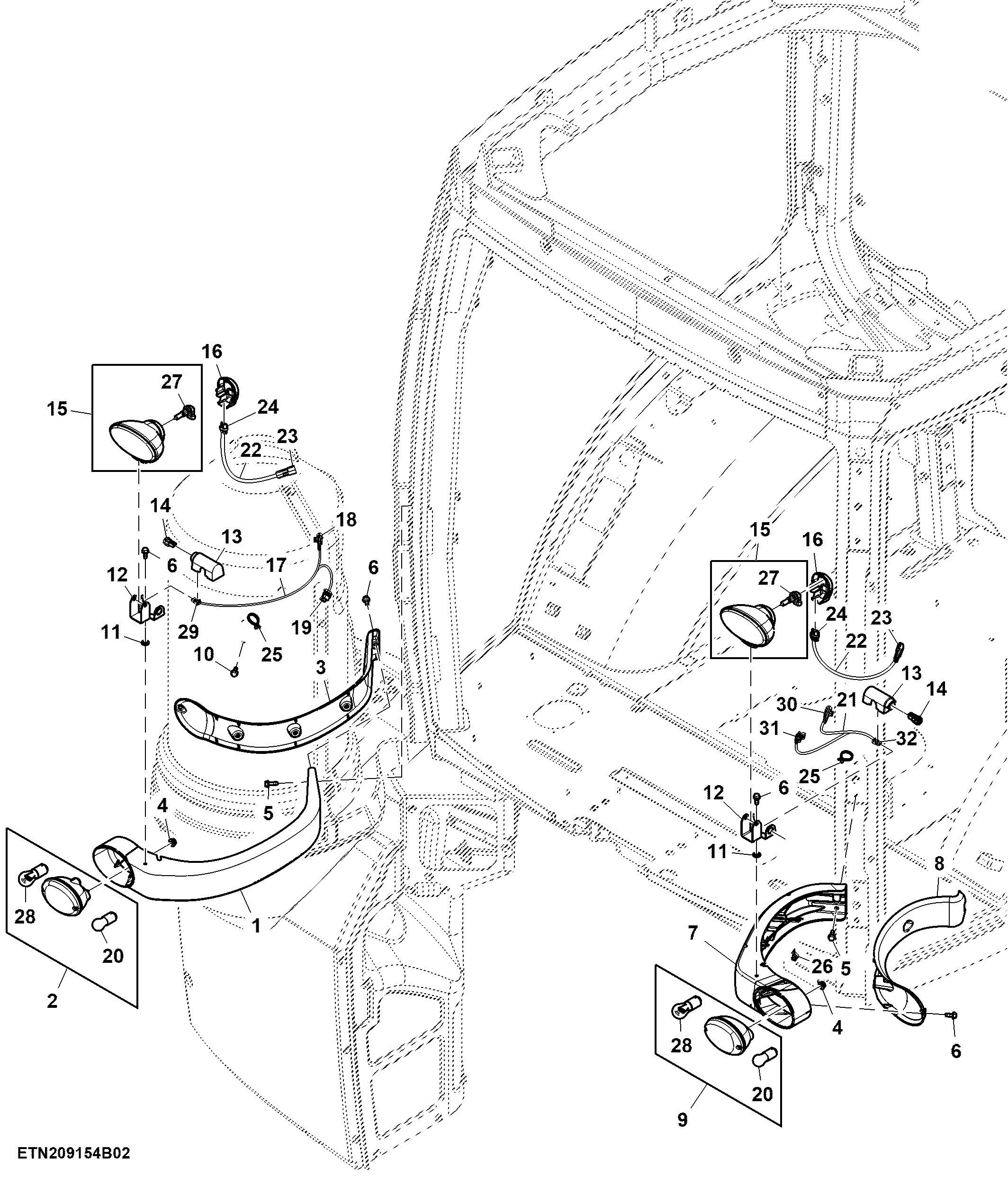

Light Kit, W/ Mid-body, W/ Side Marker, FT4 Engine (059001 - )

Нет текстового описания
